Troy Filters, Ltd. products

Efficiencies from MERV 8 to MERV 17. Frame options include metal and beverage board. Custom development options.

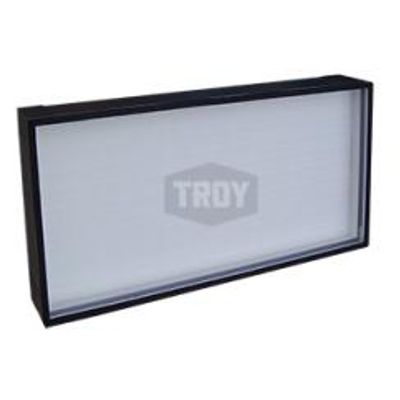

Up to 99.9995% ULPA efficiency @ 0.12 microns. Mini-pleated filter media pack construction. Extruded aluminum or particle board framing. ¼" neoprene gasket standard on 1 face.

Ultra-Pak OM pocket filters, Ever-Flow OM Washable Pre-Filters

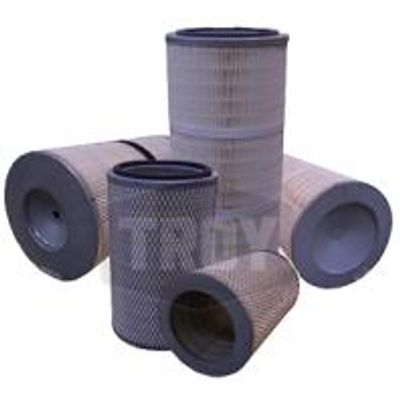

Premium Nano-Fiber or alternative filter media options. Elements for static and pulse clean systems, OEM systems. Cartridge style or panel filter configurations.

Premium Synthetic and Nano-Fiber media. Manufactured from high-grade steel components. Replacements available for most OEM housings.

Patent Pending design dramatically reduces waste and saves time. MERV 8-A with low pressure drop.

Initial resistance of 1" @ 250 FPM. ¾" particle board or 18 gauge steel frame. Waterproof micro-glass paper is unaffected by moisture. Urethane sealant and Neoprene gasket standard. 99.97%, 99.99% or 95% @ 0.3 micron.

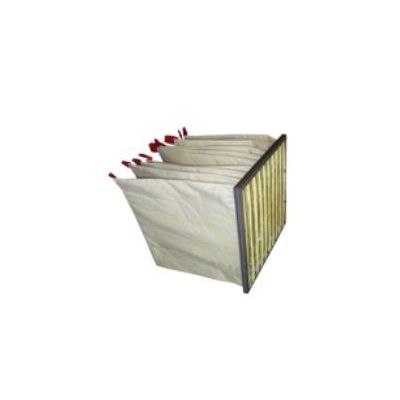

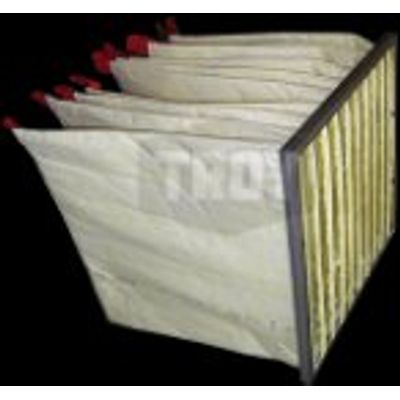

Rigid pocket, low resistance XR media, Sonic welded synthetic pockets available, Steel headers and pocket supports,

Constructed using the finest grades of certified ultrafine microglass wet-laid paper filter media, every MICRO-CELL filter is tested to ensure efficiency and capacity.  Each filter media pack is delicately assembled using state-of-the-art automation machinery, and then carefully sealed into the appropriate cell sides.  The corrugated aluminum separators ensure even media spacing and help prevent media puncture during handling and installation. For use in hospitals, medical facilities, laboratories, commercial, industrial, and institutional applications.

Ultra-Pak OM pocket filters, Ever-Flow OM Washable Pre-Filters
