TRUFLO Pumps, Inc. products

ANSI Pumps

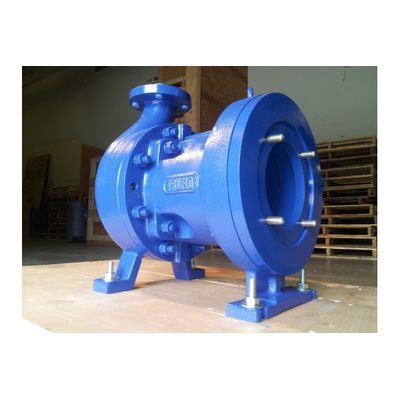

TRUFLO - Model DAP Series - Horizontal Overhung Centrifugal Process Pump – ANSI B73.1 (OH1)

TRUFLO`s DAP series of horizontal end suction centrifugal process pumps are built to ANSI B73.1M specifications to accomodate the very corrosive and erosive conditions of the chemical process industry. The DAP`s durability, easy maintenance, and excellent interchangeability make it a great solution for your process industry application.

TRUFLO - Model DLP Series - Vertical In-Line Process Pump – ANSI B73.2 (OH3)

Max. Capacity: 660gpm (150m³/hr). Max. Head: 390ft (120m). Max. Temperature: 350°F (180°C). Max. Power: 200HP (150kW)

TRUFLO - Model DSP Series - Self-Priming Process Pump – ANSI B73.1 Footprint (OH1)

TRUFLO`s DSP Series of self-priming pumps are built to meet ANSI B73.1M footprint specifications.

TRUFLO - Model MAP Series - Metallic Magnetic Drive Pump – ANSI B73.3 (OH1)

TRUFLO`s MAP Series of magnetic pumps are used for no leakage service and they are the most economical and efficient pumps. Designed to eliminate the leakage problems associated with centrifugal pumps and mechanical seals. The MAP Series pump was developed to conform to ANSI dimensions - allowing our customers to simply change ANSI pumps without any correction of piping systems or foundations. The customer may also select from a variety of materials that range from CF8 to Hastelloy C in accordance with their liquid property.

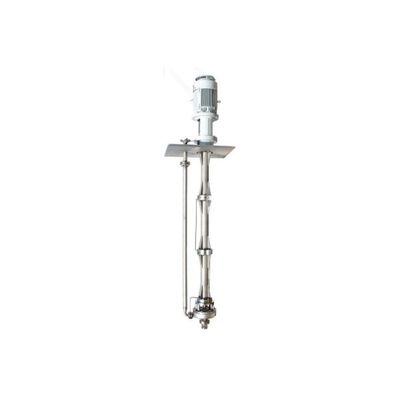

TRUFLO - Model DVT Series - Vertical Sump Pump - ANSI B73.1 (VS4)

Designed for the process industry (ANSI B73.1M). Max. Capacity: 4,840gpm (1,100 m³/h) @ 1750rpm. Max. Head: 760ft (230m) @ 3500rpm. Max. Pressure: 230psi (16kg/cm³). Max. Power: 350HP (260kW). Temperature to 350°F (180°C) with high temperature application option. Fully open impeller investment casting. Material: DCI, WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C, and TI. Excellent interchangeability. ISO 9001 certified by LRQA in 1998.

API Pumps

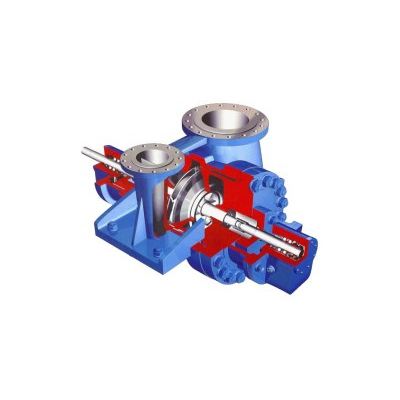

TRUFLO - Model DSV Series - Double Suction Split-Casing Volute Pump – API 610 11th Ed. (BB1)

TRUFLO DSV Series is an axially split, single stage pump designed to API 610 (BB1), 11th edition requirements. The double suction impeller provides hydraulic axial balance and is designed for maximum hydraulic efficiency. Double volume design minimizes hydraulic radial loads, even at minimum flow. Stiff shaft design ensures trouble-free performance by operating under the first critical speed with extensive hydraulic coverage.

TRUFLO - Model RSMP Series - Ring-Sectional Multistage Pumps – API 610 11th Ed. (BB4)

API Compliant Materials. Max. Capacity: 7,930GPM (1,800m³/h). Max. Head: 7,220ft (2,200m). Max Temperature: 350°F (180°C). Max. Power: 5,400HP (4,000kW)

TRUFLO - Model RSMP-B Series - Horizontal Double Casing Multistage Pump

The TRUFLO BB5 pump is a horizontal, double casing, radially split, multi-stage pump and with a bearing design suitable for high pressure, high speed and high temperature applications. The simple construction of TRUFLO BB5 pumps offer easy installation and maintenance.

TRUFLO - Model TDP Series - Single-Stage Double Suction Pump – API 610 11th Ed. (BB2)

TRUFLO TDP Series are radially-split, double suction pump that meet the requirements of API 610 11th edition standards. It is engineered and built for reliable, safe performance at the elevated temperatures and pressures experienced in refining and power applications.

TRUFLO - Model TDSP Series - Two-Stage Double Suction Pump

Max. Capacity: 35,220gpm (8000m³/hr). Max. Head: 1310ft (400m). Max. Temperature 780°F (400°C). Max. Power: 3400HP (2500kW)
