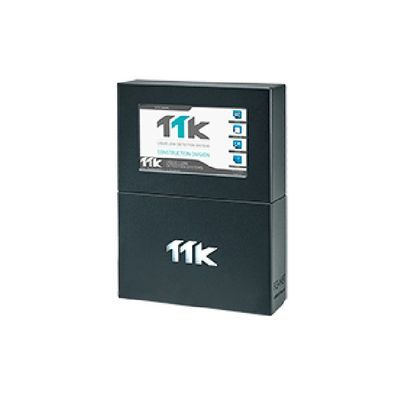

The FG-NET digital unit is designed to be used for water leak detection, bases leak detection, acid leak detection and fuel leak detection. It is ideal for mission-critical areas such as data centers, trading floors, semi-conductor plants. FG-NET unit can display a precise location (+/- 3 ft (1m)) on a dynamic map. It detects simultaneous leaks hence avoid “a leak hide another” risk. Furthermore, the FG-NET digital unit can transmit the leak information to other LAN-connected equipment (such as BMS) via TCP/IP and JBUS/MODBUS communication protocols. In short, FG-NET has its unique features and precedes all advantages of a classic liquid leak detection unit.

The FG-ALS8 is a new solution for water leak detection and acid leak detection. Same principal as FG-ALS4, it is cost effective, accurate and easy to install & to use, ideal for medium and large applications where accurate leak location is required. Eight detection zones are available on this small unit, it can control up to 328 ft (100 m) of water or acid sense cable per zone. A touch-screen gives clear indications of the system status. 9 relays are integrated and RS485 serial link with MODBUS /JBUS communication protocol for interfacing with BMS is available.

The FG-ALS8-OD, Eight Zones Alarm & Locating System Unit is designed to be used exclusively with FG-OD range products including sense cables and point sensors, to give instant detection and location of liquid (non-conductive hydrocarbon liquids and solvent). Capable to monitor up to 8 oil leak sense cables or point sensors on its 8 independent zones; equipped with 9 relays, this locating unit is a cost-effective solution for non-conductive hydrocarbon liquids and solvent leak detection. Ideal for medium to large applications where accurate leak location is required.

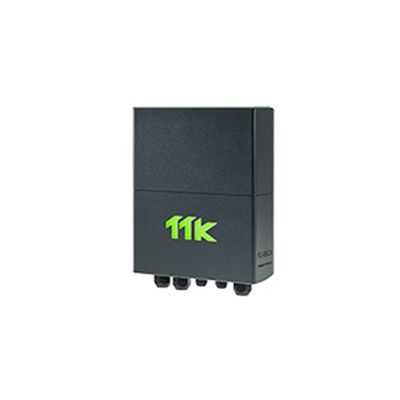

The FG-BBOX is a satellite device of the TTK FG-NET Digital Unit. It is monitored by FG-NET via a standard Ethernet network. It expands FG-NET to manage two additional circuits of sense cables with up to 3937 ft (1200 m) of additional Sense Cables.

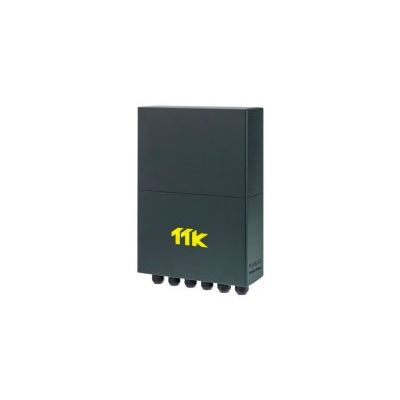

The FG-RELAYS is a Digital External Relays Box. It works as a satellite device of the FG-NET Digital Unit. It adds a set of 24 configurable external relays to the FG-NET. It allows FG-NET to drive external devices such as solenoid valves, BMS signals, beacons and others, to react in case of leak or system alarms.The FG-RELAYS is monitored by FG-NET via a standard Ethernet network. The FG-RELAYS is accessible via a web interface for configuration.

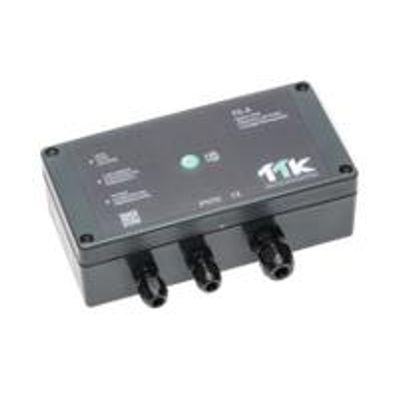

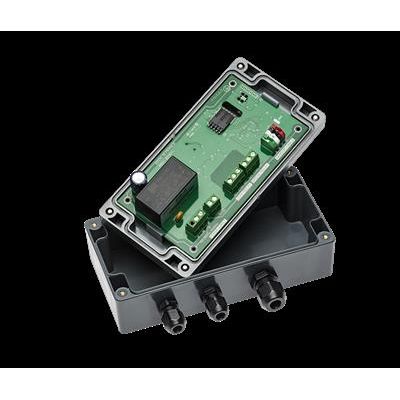

The FG-A alarm unit is a simple water leak detection, acid leak detection and base leak detection unit without location. It can control up to 49 ft (15 m) of sense cables. Visual and audible indicators on the front panel allow easy identification of the type of fault (leak or cable break). Two zero volt contact relays provide numerous signaling and centralized monitoring options. The FG-A alarm unit is designed to be used with TTK analog sense cables; FG-ECS, FG-ECX, FG-ACS and FG-ACX, to give immediate detection of liquid leaks (water leak, acid leak or base leak). Available in wall-mounted and rack-mounted version.
