TTV S.A. products

Butterfly Valves - Soft Seated - Concentric

TTV - Wafer Soft Seated Butterfly Valves

Materials: Body: Ductile iron, WCB, Stainless steel, Duplex, Superduplex,…. Disc: Ductile iron, WCB, Stainless steel, Bronze-aluminium, Duplex, Monel, Uranus, Hastelloy,… Shaft: AISI 316, 304, 420, Monel, Duplex, Superduplex, … Seat: EPDM, NBR, Hypalon, Viton, Polisopreno, Silicone, Epiclorhidrine,….

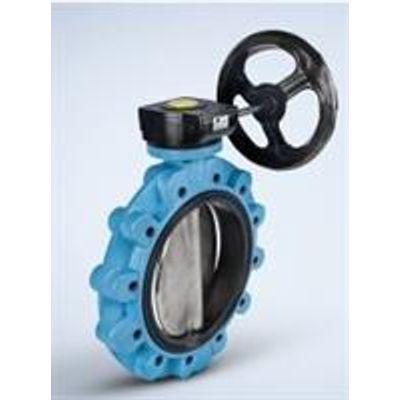

TTV - Lug Soft Seated Butterfly Valves

TTV - Flanged Soft Seated Butterfly Valves

Butterfly Valves High Performance PTFE Seated - PTFE Concentric

TTV - High Performance PTFE Seated Wafer Butterfly Valves

Materials: Body: Rilsan coated ductile iron, Stainless steel (CF-8M). Disc: PTFE, PFA, UHMWPE Stainless steel (CF-8M), Duplex. Shaft: AISI 316, 17-4PH, Duplex. Packing: Viton.

TTV - High Performance PTFE Seated Lug Butterfly Valves

Materials: Body: Rilsan coated ductile iron, Stainless steel (CF-8M). Disc: PTFE, PFA, UHMWPE Stainless steel (CF-8M), Duplex. Shaft: AISI 316, 17-4PH, Duplex. Packing: Viton.

Butterfly Valves - Colossus: PTFE Double Eccentric

TTV Colossus - PTFE Double Eccentric Wafer Butterfly Valves

Materials: Body: WCB, CF-8M, CF-8, CF-3M. Disc: CF-8M, CF-8. Shaft: AISI 316, AISI 304, 17-4PH. Seat/ sealing: PTFE, PTFE+15% glass., PTFE+15% graphite. Retainer: AISI 316. Packing: Graphite, PTFE, PTFE+15% Graphite. Other materials available on request.

Butterfly Valves Colossus: High Performance Metal Seated

TTV Colossus - High Performance Metal Seated Concentric Butterfly Valves

Materials: Body: Ductile iron, WCB, Stainless steel,.Disc: Ductile iron, Stainless steel, Bronze-aluminium,… Shaft: AISI 316, 304, 420, Monel, Duplex, Superduplex, … Other materials available on request

Butterfly Valves Colossus- Double Eccentric

TTV Colossus - Reinforcerd Metal Ring Double Eccentric Butterfly Valves

Materials; Body: CF-8M, CF-8, CF-3M, WCB. Disc: CF-8M, CF-8. Shaft: AISI 316, 17-4 PH, AISI 304. Seat/ sealing: AISI 316. Optional: With treatment stellited hardened. Retainer: AISI 316. Packing: Graphite. Other materials available on request.

Butterfly Valves Colossus- Triple Eccentric

TTV Colossus - High Performance Metal Seated Triple Eccentric Butterfly Valves

Materials: Body: CF-8M, CF-8, WCB. Disc: CF-8M, CF-8, WCB. Shaft: 17-4 PH. Seat/ sealing: AISI 316, AISI 304, estellited. Retainer: WCB, AISI 316, AISI 304. Packing: Graphite. Other materials available on request.

Accessories - Hand Lever

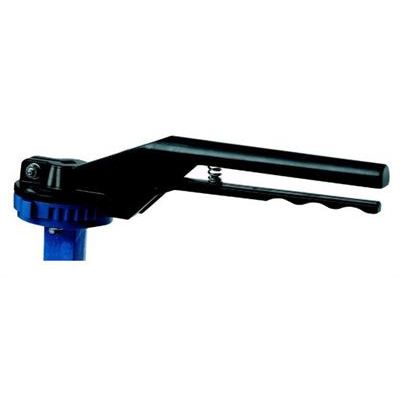

TTV - Standard Hand Lever

With 9 position notch plate (0º to 90º). It´s usually made of aluminum. Available for valves DN: 32-200mm (1 ¼” - 8”).
