Tunze Aquarientechnik Gmbh products

The TUNZE ORCA is a high-quality oscillating unit for circulation pumps, developed through a collaboration between TUNZE and the German start-up ReefHub. What began as an innovative idea is now being brought into series production: with sophisticated technology, high-quality materials, and our decades of experience in marine aquariums.

Comline Nanofilter 3161 for fresh and sea water depending on the tank load of 30 liters (8 USgal.) to 100 liters (26 USgal.) (filter for nano aquariums ) or up to 1,000 liters (264 USgal.) (surface filter). Silence Magnet Holder up to a glass thickness of 10 mm (3/8").

Recommended for salt water aquariums up to 1,000 liters (265 USgal.). Immersion depth from 140 to 240 mm (5.5" - 9.5") without setting. Dimensions without post-filter (L x W x H): 250 x 180 x 415 mm (9.8" x 7.0" x 16.3"). Water flow rate: 900 l/h (237.7 USgal./h). Air capacity: 600 l/h (158.5 USgal./h). Energy consumption: 11 W, 230V/50Hz (15 W, 115V/60Hz). Skimmer cup volume: 0.7 liters (0.2 USgal.).

For TUNZE DOC Skimmer 9410. Cable: 2 m (78.7") . Maximum air capacity: 600 l/h (160 USgal./h). Water flow rate: 900 l/h (235 USgal./h). Energy consumption: 11 W (15 W) at an air capacity of 600 l/h (160 USgal./h). Pump outlet with ¾" BSP thread (NPT).  Pump housing with strainer and silencer.  Equipped with air regulation, coupling and silencer.

Calcium Automat System For marine aquariums up to 1,200 liters (317 USgal.) depending on the coral population. Energy consumption: 17 W (25 W). Voltage / frequency: 230V/50Hz (115V/60Hz). Cable length: 2.2 m (86.6"). External operation or in a cabinet (recommended), self-priming. Filling quantity: 1,850 ml (488.7 USgal.), without filling Dimensions (L x W x H): 230 x 150 x 350 mm (9.1" x 5.9" x 13.8").

Pump output: 250 - 850 l/h (65 - 225 US gal./h) . Energy consumption: 2.5 - 4.5 W. Pumping head: 0.7 m (27.6"). Voltage / frequency: 230V/50Hz (115V/60Hz). Cable length: 2 m (78.7"). Dimensions without outlet: 60 x 60 x 40 mm  (2.4" x 2.4" x 1.6"). Outlet: ø13 mm (½").

Pump output: 500 - 2,200 l/h (132 - 581 US gal./h) . Energy consumption: 10 - 18 W. Pumping head: 0.8 m (31.5") . Voltage / frequency: 230V/50Hz (115V/60Hz). Cable length: 2 m (78.7"). Dimensions without outlet: 78 x 72 x 51 mm (3.1" x 2.8" x 2"). Outlet: ø25 mm (1").

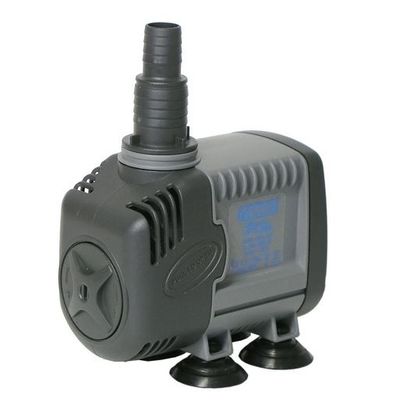

Pump output: 150 to 800 l/h (40 to 210 US gal./h). Energy consumption: 3 to 8 W. Pumping head: 1.25 m (49.2 in.) . ½" NPT hose connection. Voltage / frequency: 230V / 50Hz (115 V / 60Hz). Cable length: 2,2 m (86.6"). Dimensions without outlet and suction cups: 87 x 67 x 48 mm (3.4" x 2.63" x 1.88").
