Turbo Controls products

Pulse Valves

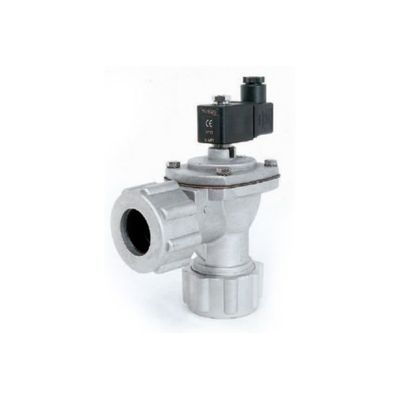

Turbo Controls - Model TD Series - Compression Fitting Pulse Valve

Fluids: Non-lubricated filtered air. Operating temperature: Neoprene diaphragm -20UC +80°C Viton diaphragm -20°C +200°C LowT. diaphragm -40°C; +80°C. Operating pressure: between 0.5 and 7.5 bar. Body and cover: Die-cast aluminium. Pilot core: Stainless steel. Screws and bolts: Stainless steel. Coil insulation: Class H. Connector: PG 9 EN175301-803. Connector + coil protection: IP65 EN60529. Standard voltage: 24V/50-60Hz (±10%) 19VA, 115V/50-60Hz (±10%) 19VA, 230V/50-60HZ (±10%) 19VA, 24VDC (± 10%) 18 Watt.

Turbo Controls - Model TE Series - Flanged Pulse Valve

Fluids: Non-lubricated filtered air. Operating temperature: Neoprene diaphragm -20°C +80°C Viton diaphragm -20°C +200°C LowT. diaphragm -40°C; +80°C. Operating pressure: between 0.5 and 7,5 bar. Body and cover Die-cast aluminium. Pilot core: Stainless steel. Screws and bolts: Stainless steel. Coil insulation: Class H. Connector: PG 9 EN175301-803. Connector + coil protection: IP65 EN60529. Standard voltage: 24V/50-60HZ (±10%) 19VA, 115V/50-60Hz (±10%) 19VA, 230V/50-60HZ (±10%) 19VA, 24VDC (± 10%) 18 Watt.

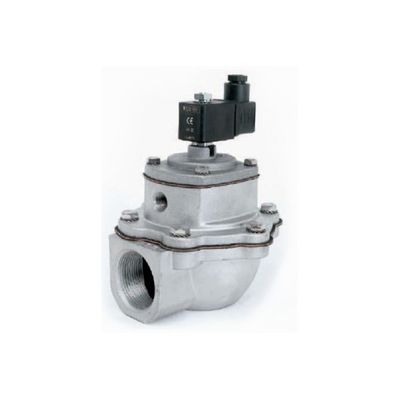

Turbo Controls - Model TF Series - Threaded Pulse Valve

Fluids: Non-lubricated filtered air. Operating temperature: Neoprene diaphragm -20°C +80°C Viton diaphragm -20°C +200°C Low T. diaphragm -40°C; +80°C. Operating pressure: between 0.5 and 7.5 bar. Body and cover: Die-cast aluminium. Pilot core: Stainless steel. Screws and bolts: Stainless steel. Coil insulation: Class H. Connector: PG9EN175301-803. Connector + coil protection: IP65EN60529. Standard voltage: 24V/50-60HZ (±10%) 19VA, 115V/50-60HZ (±10%) 19VA, 230V/50-60HZ (±10%) 19VA, 24VDC (± 10%) 18 Watt.

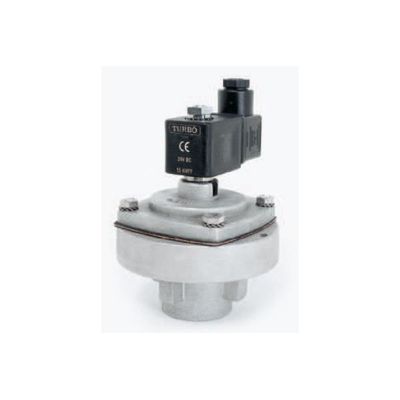

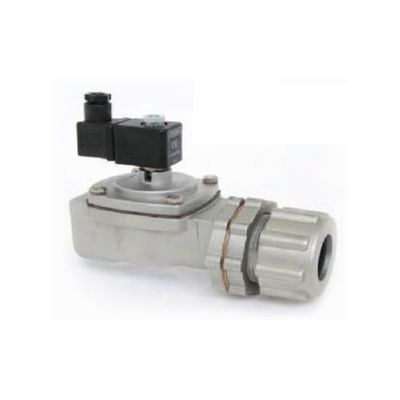

Turbo Controls - Model TL Series - Straight Through Diaphragm Valves

Fluids: Non-lubricated filtered air. Operating temperature: Neoprene diaphragm -20°C +80°C, Viton diaphragm -20°C +200°C, Low T. diaphragm -40°C; +80°C. Operating pressure: between 0.5 and 7.5 bar. Body and cover: Die-cast aluminium. Pilot core: Stainless steel. Screws and bolts: Stainless steel. Coil insulation: Class H. Connector: PG9EN175301-803. Connector + coil protection: IP65 EN60529. Standard voltage: 24V/50-60HZ (±10%) 19VA, 115V/50-60Hz (±10%) 19VA, 230V/50-60Hz (±10%) 19VA, 24VDC(± 10%) 18 Watt.

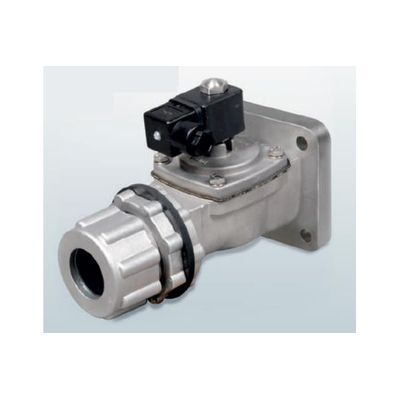

Turbo Controls - Model TM Series - Flanged Straight Through Diaphragm Valves

Fluids: Non-lubricated filtered air. Operating temperature: Neoprene diaphragm -20°C +80°C, Viton diaphragm -20°C +200°C, LowT. diaphragm -40°C; +80°C. Operating pressure: between 0.5 and 7.5 bar. Body and cover: Die-cast aluminium. Pilot core: Stainless steel. Screws and bolts: Stainless steel. Coil insulation: Class H. Connector: PG 9 EN175301-803. Connector + coil protection: IP65EN60S29. Standard voltage: 24V/50-60Hz (±10%) 19VA, 115V/50-60HZ (±10%) 19VA, 230V/50-60HZ (±10%) 19VA, 24VDC (± 10%) 18 Watt.

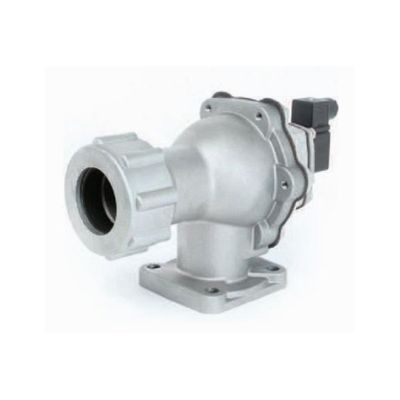

Turbo Controls - Model TS Series - Global Pulse Valves For Square Tanks

Fluids: Non-lubricated filtered air. Operating temperature: Neoprene diaphragm -20°C +80°C, Viton diaphragm -20°C +200°C, LowT. diaphragm -40°C; +80°C. Operating pressure: between 0.5 and 7.5 bar. Body and cover: Die-cast aluminium. Pilot core: Stainless steel. Screws and bolts: Stainless steel. Coil insulation: Class H. Connector: PG 9 EN175301-803. Connector + coil protection: IP65 EN60529. Standard voltage: 24V/50-60Hz (±10%) 19VA, 115V/50-60HZ (±10%) 19VA, 230V/5O-60HZ (±10%) 19VA, 24VDC (± 10%) 18 Watt.

Turbo - Model F Series - Dust Collector Diaphragm Pulse Valves

Turbo`s F Series Threaded right angle pulse valve is available in sizes ranging from ¾”- 2½”` suitable for Header Tank with either integral IP65 solenoid operator or remote pilot connection. Comprising aluminium cover and body, NBR or Viton diaphragms. This Valve is available in most voltage and can include ATEX Zone 1/21 or 2/22 hazardous areas.

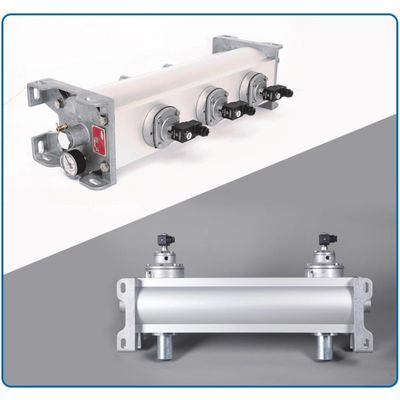

Global Immersion Tanks - Alutank Aluminium Tanks - Global Immersion

Turbo - Model 6 Inch Alutank Series With 1 Inch DN - Aluminum Header Tanks With Straigt Through Valves

Technical Features: Tank boy: Extruded anodised aluminum. Ends: Aluminum. Air cannons: galvanised steel. O-Ring: NBR. Operating temperature: -20°C + 80°C. Operating pressure: 0.5 + 6 bar – 0.5 + 8 bar. N.B configuration for low temperature - 40°C + 80°C.

Turbo - Model 6 Inch Alutank Series With 1 Inch DN - Aluminum Header Tanks

Technical Features: Tank boy: Extruded anodised aluminum. Ends: Aluminum. Air cannons: galvanised steel. O-Ring: NBR. Operating temperature: -20°C + 80°C. Operating pressure: 0.5 + 6 bar – 0.5 + 8 bar. Low temperature version: -40°C + 80°C (Aluminum air cannons.

Turbo - Model 6 Inch Alutank Series With 1.5 Inch DN (SP30) - Aluminum Global Immersion Header Tanks

Technical Features: Tank boy: Extruded anodised aluminum. Ends: Die-cast aluminum. Air cannons: galvanised steel. O-Ring: NBR. Operating temperature: -20°C + 80°C. Operating pressure: 0.5 + 6 bar – 0.5 + 8 bar. Low temperature version- 40°C + 80°C (Aluminum air cannons).
