Turtle Tough Pty Ltd products

Turtle Tough`s Drop Tube is an excellent alternative to in-tank immersion rods for applications that require submersion depths greater than 3 metres.

Turtle Tough continues to offer an industrial grade, high quality, innovative products with this series of intelligent thermal imaging cameras. IP Resolution: 192×144. NETD: 60mK. Field of View (FOV): 37.8°×28.8°. Minimum Distance Focus: 0.5m. Focal Length: 7mm/ F1.1. IFOV: 3.45mrad. Focus: Manual.

When using a Turtle Tough Digital Sensor you can extend the reach to the Transmitter with the use of the Digital Cable Extensions. Extends the Digital Sensor Cable. Available in 3, 6 and 12 metre lengths.

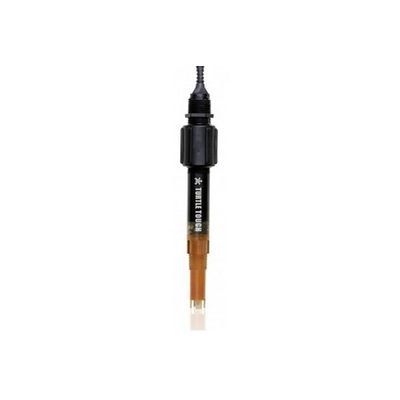

The TOUGH series sensors are an excellent choice for most industrial applications. The solid-state reference is low maintenance and offers long-lasting performance, while the RYTON body plastics are extremely resistant to chemical attack. The tough glass offers excellent performance across a wide pH range and reduces the expense of costly breakages. The TOUGH Series sensors share common chemistry and are available in immersion, submersible and inline configurations.

The UltraTough series sensors utilise our very best materials and technologies to work in the harshest of conditions. Ultra Tough sensors have a wide variety of options that allow it to be customised for your application so you get a purpose-built sensor that will outperform all others. Customer’s who choose Ultra Tough products can work with our engineers to tailor an application-specific solution.

Designed specifically for Slurries. Abrasion resistant. High velocity solids resistant. 6m cable. RADEL with ¾” Front End – 1” MNPT Back End MNPT. -5°C to 105°C. Submersible Water proofing & Cable Sealing. Double Junction. Acid/Fluoride Resistant. Ammonia, Chlorine and Sulphide Gas Resistant. High Capacity Polypropylene Reference. Proprietary tough glass. Virtually unbreakable. Quick connect plugs – eliminate hard-wiring of sensors and allow for instant hot-swap. Smart Sensor Technology. Direct MODBUS RTU output from sensor. Connects to wide array of platforms. Reduce Overhead & Installation Costs – No need to install expensive analysers. No hard wiring – plug-n-play connectivity. Smart Sensor stores calibration data. Smart Calibrator – use one device to calibrate and interface with ALL sensors. Hot-swap for quick sensor change-out.

The TT-GP-DO Sensor is a rugged industrial galvanic Dissolved Oxygen sensors with high stability thick membranes for inline, immersion, submersion, sanitary & hot-tap installations.

The Turtle Tough Slurry conductivity sensors are designed for use in general purpose applications up to 200,000 micro Siemens and provide outstanding chemical resistance for a wide variety of process media. Open front end geometry resists clogging and reduces maintenance requirements to a minimum. Wetted materials of construction are CPVC with 316SS electrodes as standard. The option to select other metals as electrode materials provides an unequalled chemical resistance capability. Dual O-ring seals of EPDM increase sensor reliability and service life. The front seal absorbs the brunt of chemical attack, allowing the rear O-ring to operate in a protected environment, and insure continued sealing.

Turtle Tough Turbidity Analysers in combination with the Turtle Tough Black Series Liquid Analyser is the perfect solution for measuring turbidity online. The turbidity is determined using a nephelometric measurement of scattered light in accordance with ISO 7027 with a measuring range selectable within 0.01 – 1000 NTU, 0.01 – 2000 mg/l. Some key features include:

The Turtle Tough Ammonium ion selective electrode is designed for valve retractable and sanitary use with double o-ring seals and 3/4" MNPT back end thread.  It is the ONLY Ammonium (NH4+) ion selective sensor that can be used in heavy industrial process and wastewater treatment systems, providing measurements up to saturated levels and can operate  continuously at temperatures up to 50°C.
