U-FLO Group products

Pumps- Above Ground Pumps

U-Flo - Model VM Series - Vertical Stainless Steel Multistage Pump

Technical Parameters: Flow rate Q: up to 240m3/h. Head H: up to 300m. Power P: up to 110kW. Liquid temperature: -30 ° C -150 .° C

U-Flo - Model FH Series - Horizontal Single Stage End Suction Pump

FH Series – Horizontal End Suction Centrifugal Pump. This is a single-stage with end suction non self-priming centrifugal pump. The rated power and dimensions of pump comply with EN733 Standard. The replaceable shaft sleeve is applied in shaft seal area. The replaceable wearing ring is applied between volute casing and impeller. Pump casing and base is constructed with a single casting.

U-Flo - Model FG Series - Vertical Single Stage Pipeline Pump

FG series – Vertical Inline Pump. This pump is equipped with a standard motor connected with the fixed pump shaft, adopting the same hydraulic design as FH series. It offers very low noise operation. Two pumps can work in tandem through two Y-type pipe connectors. It is widely used in water supplies, HAVC, pipeline boosting, irrigations, industrial liquid transfers.

U-Flo - Model FHC Series - Horizontal Single Stage End Suction Pump

FHC series – End Suction with Direct Coupled Centrifugal Pump. This is a single stage, end suction centrifugal pumps. The motor is directly coupled with pump shaft. The rated power and dimension comply with EN733 Standard. The replaceable shaft sleeve is applied in shaft seal area. The replaceable wearing ring is applied between volute casing and impeller. Pump casing and base is constructed with a single casting.

U-Flo - Model FS Series - Single Stage Double Suction Centrifugal Pump

Technical Parameters: Flow Q: up to 18000m3/h. Head H: up to 140m. Power P: up to 160kW. Liquid temperature: -30 ° C -150 ° C.

Pumps- Deepwell

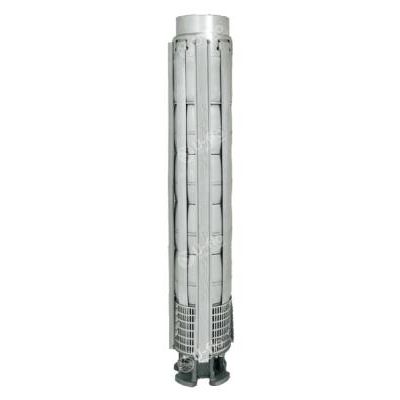

U-Flo - Model VP Series - Casting All Stainless Steel Submersible Pump

VP Series - Stainless casting deep-well submersible pump, all parts contacted with liquid are made of stainless steel. It is widely used in water reverse osmosis systems and water works, high rise building boosting applications, process water system, high pressure washing systems, mining/ marine, ground water pumping applications, fire systems.

U-Flo - Model VS Series - Stamped Stainless Steel Submersible Pump

VS series – immerged multi-stage stamping stainless steel deep well submersible pump. All parts contacts to liquid are stainless steel. It is widely used in water filter and transfer of water works, high rise building boost, process water system, cleaning system, high pressure washing system etc.

U-Flo - Submersible Motor

Technical Parameter: Encapsulated Type: 4″-6″ Power: 0.37-45kw. Rewindable Type: 4″-14″ Power: 3.7-400kw. Speed: 2900r/min(2P), 450rpm(4P). Voltage: Single-phase 220 V / Three-phase 380V. Insulation Class: F Protection Grade: IP 68. Maximum Temperature: 90 ?. Installation Norm: NEMA.

U-Flo - Model VT Series - Pumps- Long Shaft Deep Well Pump

Technical Parameters: Flow Q: up to 1600m3/h. Head H: up to 400m. Power P: up to 400kW. Liquid temperature: ≤180°C.

U-Flo - Model PVT Series - Long Shaft Deep Well Pump

Technical Parameters: Flow Q: up to 1600m3/h. Head H: up to 400m. Power P: up to 400kW. Liquid temperature: ≤180°C.
