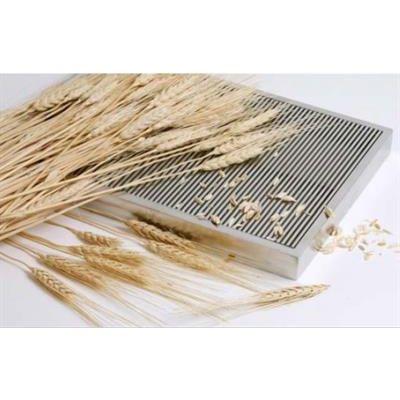

Wedge wire screen panels, also called v wire screen flat screens, vee wire panels, johnson screen panels, slotted wire welded panels. It is manufactured with stainless steel surface profiles and support profiles. The surface profile are welded onto support profiles at each intersection in a 90 degree. Wedge wire screen panels are composed of surface profile and support profile. The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar and rectangular bar. They can suit different machines and can be used in various applications.

The flat wedge wire sieve screen plate is an important working part of the screening machine to complete the screening process. Each screening machine must select a sieve plate that meets its working requirements. The various characteristics of the material, the different structure of the sieve plate, the material and the various parameters of the sieve machine have certain influence on the screening ability, efficiency, running rate and life of the vibrating screen. Different materials and different places should use different sieve plates to achieve the best effect of screening. The sieve plate should have sufficient strength, high opening ratio and difficulty in plugging holes. When the vibrating screen vibrates, the wedge wire sieve plate passes through materials of different shapes and sizes, material size, and under the action of vibration force, the materials of different particle sizes are separated to achieve the purpose of classification.

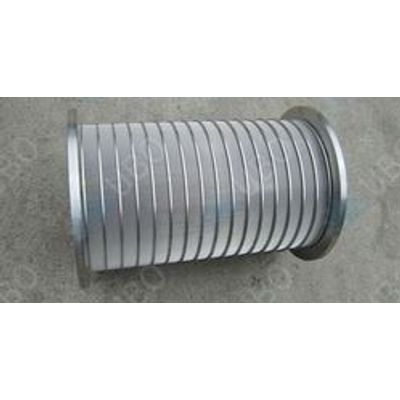

 SS wedge wire wrapped screen tube is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance. Wrapped screen tube can be used for conventional filtration, outside-in and reverse filtration, inside-out. The fine wire typically used maximizes the open area. Various fitting options are available with cartridges to help incorporate it into almost any process.

Wedge wire rotary drum screens are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.
We offer a reliable and efficient range of Wedge wire rotary screen. Our offered products are extensively demanded by various industries and are manufactured in accordance with the industry set norms and guidelines. Post-production, we test each product on various stages to give our clients.

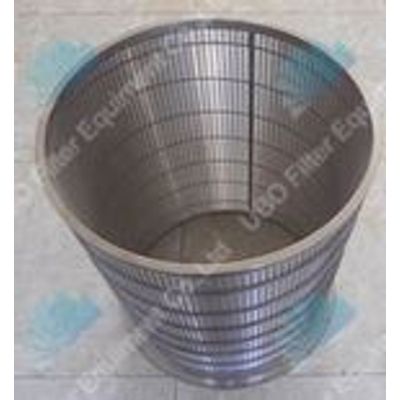

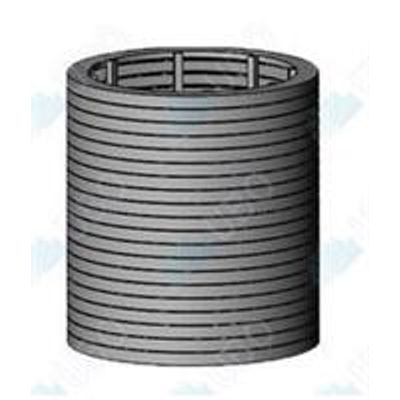

This type of Wedge wrapped wire screen cylinder basket made up of rods and warp, the rod can be round wire,triangular wire and trapezoid wire.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.The warp is triangular wire(v-shape wire). Wedge wire screen basket have a structure and high open area;as well as accurate slot dimension. Wedge wire screen pressure basket have heat -resistant,anti-corrosive,good machine capability,last long ,safety and reliability and so on.

Wedge wire pressure screen baskets are highly efficient cylindrical rotating wedge wire screen basket used to separate solids from liquids or solids from solids. The flow of material is fed into the inside of the drum and the screen where the centrifuge rotating action forces any particles smaller than the slot size through the screen and any particles larger than the slot size off the end of the screen. The wedge shape of the profile wires help minimise pegging and blinding. UBO supplies complete trommel units, including a motor and base frame, or a replacement screen for existing units.

Static Rundown screen offers reliable performance and inexpensive solution in liquid/solid separation of fibrous and non-greasy solids for municipal and industrial applications. You will not find any moving parts or electrical hook-ups on this standard PFT screens. Of course, UBO can manufacture vibratory screens and fine screens with automated wash systems according to special applications. Rundown screens have been used in wastewater treatment plants for pretreatment, dewatering of grit. You will also PFT rundown screens used in industries such as recycling, paper and pulp, power generation, food processing, recyclers. UBO screens can be also used in private water ponds in people backyards.

Wedge wire water filter nozzle strainer, have many called, for example, strainer nozzle, stainless steel filter nozzle, header lateral, stainless steel lateral arm, water &gas Strainers. Water filter screen nozzle which are available with the following configurations. Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Sewerage Treatment Plants (STP) and other urban and industrial waste water treatment plants. There are also filters and collectors for swimming pools.

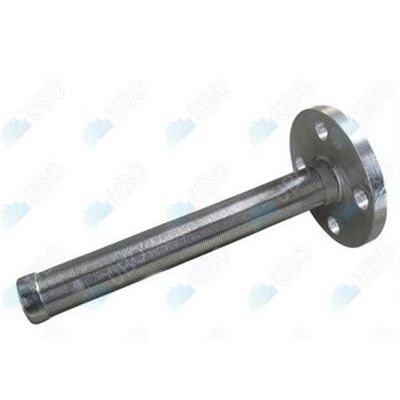

SS 304 wedge wire resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. Wedge wire resin trap is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

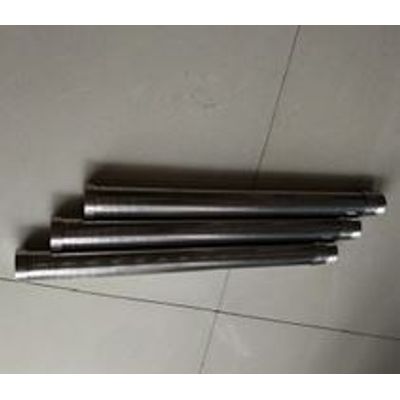

SS 316 wedge wire screen water lateral filter pipe was considered as the most effective media for under draining. Wedge wire has an inherent even pattern if open area that allows for accurate flow distribution. Its internal support rod structure allows it to handle the most demanding load applications. Constructed of stainless steel wedge wire is easily worked to meet both typical and unique under drain designs. Water treatment equipment screen pipe as an efficient collector, the screen lateral is available in several sizes, with various slots and end fittings. Most commonly, the screen lateral is provided with a solid cap on one end and a threaded pipe connection on the other end.
