UDM Systems, LLC products

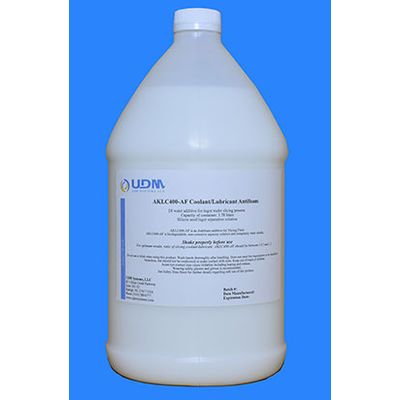

Application: Diamond Wire Sawing Process: AKLC400-AF (Antifoam agent) is used in combination with AKLC400-SPV for slicing/wafering silicon ingots. The material is biodegradable, non-corrosive, and completely water soluble.

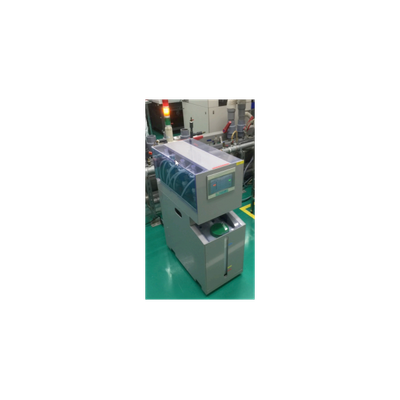

ADU-E1 series dispensers, like the original ADU series, can be configured to support from 1 to 4 dicing saws. The ADU-E1 is wired into the dicing saws so that each pump runs independently as each saw requires lubricant. The ADU-E1 can also be connected via a MODBUS TCP/IP connection, giving process engineers the ability to observe and automate surfactant consumption.

The UDM Systems® LDS series is a single saw system designed with computerized digital capabilities to deliver precisely the set up mixing ratio for optimum results. Get enhanced performance, features, and capabilities with closed-loop feedback from UDM Systems®. LDS series lubricant dispensing systems to enhance your die-separation process. No user calculations are necessary as the computer automatically adjusts the lubricant dispensing based on DI water flow rate. There are no electrical connections to the saw and the dispenser will automatically start and stop in synchronization with the saw process. Pump output monitoring, saw recipe synchronization, and alarm synchronization are also available features upon request.

The UDM Systems® ADU Series Dispensers are designed as auto dispensing systems to support single or multiple sets of dicing saws. The ADU series can be synchronized with the dicing saws to precisely dispense the required volume of the UDM Systems® dicing lubricant into the saw DI water inlet hose. The lubricant flow is precisely controlled by the use of digital metering pumps. ADU Series Dispensers can be configured to support from 1 to 4 dicing saws. ADU Series dispensers are wired into dicing saw electronics. The dispensers are configured so they only dispense dicing lubricant when the attached saw is dicing wafers.
