System KSS consists of a flexible, very stress-resistant plastic spiral hose. The system components can be chosen at random and ensure connection to an imbedded sealing collar or core hole on one side. On the other side, connection to rigid or flexible protective tubes for cables or sealing of the inserted cables is possible. Even a gas- and watertight connection of two buildings is feasible without any problems.

FHE consists of a flexible pressure-resistant plastic spiral hose with expansion seal coating as well as a thermal sleeve on one or both sides for gas- and watertight installation. The FHE spiral hose is a flexible, rough-service, compression-proof plastic spiral hose with a smooth inside consisting of a hard-plastic spiral and a soft-plastic coating.FHE with thermal sleeve on one side in heat or cold shrink-on technique. Alternative available with thermal sleeve on both sides.FHE on rolls Range of application -15° to +60°C. Installation also possible at low ambient temperatures. High resistance to weather and chemicals. Inner diameter of standard program from 19 to 150 mm. Intermediate sizes up to 325 mm inside diameter available on request. Depending on diameter, rolls contain 20, 30 or 50 m.

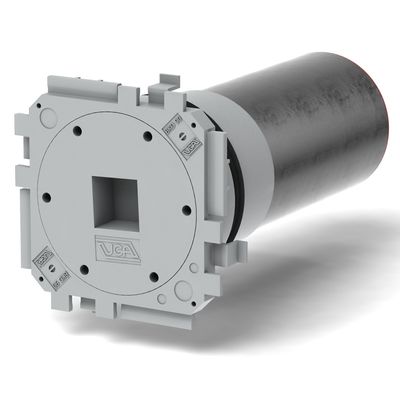

Quicker in the wall and money saved: The one-sided connection for system covers or inserts leaves all options open to you. You stay on the safe side with the supplied blind plug, because the packing is already gas-tight and pressurised water-tight after concreting - even without finishing. One-sided connection of system covers or system inserts. Quick assembly in waterproof concrete structures (class 1 and 2). Easy bundling possible by plugging together.

Quick in the wall and doubly secured: With 2 connections for system covers or inserts, you have maximum flexibility. You stay on the safe side with the supplied blind plugs, because the packing is already gas- and water-pressure-tight after concreting - even without finishing.

Due to the additional rubber seal in the middle, this double wall insert is also suitable for double or element walls. With 2 connections for system covers or inserts, you have maximum flexibility. After concreting, the packing is gas- and water-pressure-tight - even without finishing.

Quicker in the wall and money saved: The one-sided connection for system covers or inserts leaves all options open to you. You stay on the safe side with the supplied blind plug, because the packing is already gas-tight and pressurised water-tight after concreting - even without finishing.

Quick in the wall and doubly secured: With 2 connections for system covers or inserts, you have maximum flexibility. You stay on the safe side with the supplied blind plugs, because the packing is already gas- and water-pressure-tight after concreting - even without finishing.
