10 products found
UK Flowtechnik Ltd Products
-
Flow Meters - Fluid - 2K
Flowtechnik offer a huge range of Flow metering solutions for oil, water, gases, chemicals & fuels in industrial, process, hazardous area and subsea applications. We specialise in turbine & geared flow meters for lubrication and hydraulic metering & dispensing additives, adhesives, sealants and viscous chemicals at both high and low pressures.
-
Flowtechnik - Model VS Series - Circular Gear Flowmeters
The VS series encompasses eight meters going from 0.004 to 525 L/Min, most have a turn-down of a 1000:1 giving flow ranges of 0.004-4 L/Min for instance with a linearity of +/- 0.3% of reading. This gives unprecedented versatility, allowing one flowmeter to do the job of a cascade of meters from other manufacturers. To compliment the meters’ superb engineering there are an number of innovative add-on’s such as DLC coatings, sleeve bearings and ...
-
Flowtechnik - Model RS Series - Helical Screw Flowmeter
The RS Helical Screw flowmeter excels in its own right being highly accurate (+/- 0.5% of reading) and ideal for pump/valve testing and hydraulic cylinder positioning such as revolutionary wave-power devices and aerospace fuel valves and pumps to name but a few. The design of the helical rotors gives a low pressure drop and low shear compared to circular gears meters making ideal for extremely viscous, non-Newtonian or filled materials such as epoxy ...
-
Flow Meters - Fluid - Acid
Flowtechnik offer a huge range of Flow metering solutions for oil, water, gases, chemicals & fuels in industrial, process, hazardous area and subsea applications. We specialise in turbine & geared flow meters for lubrication and hydraulic metering & dispensing additives, adhesives, sealants and viscous chemicals at both high and low pressures.
-
Flowtechnik - Model SpiraMAG Series - Magnetic Inductive Flowmeter
The SpiraMAG Series transposes Faraday’s principles into a rugged, industrial package able to measure almost any conductive liquid. With an epoxy coated Steel or Stainless Steel body and IP67 enclosure rating, 2 liner and 2 electrode material options, thick or thin, clean or dirty, it can be measured. Whether it is clean water, industrial effluent, slurries, acids or bases there is a material combination to ...
-

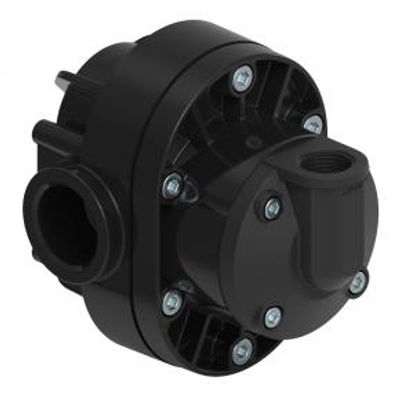

Flowtechnik - Model OM Chem - Flowmeter
The OM Chem is a totally non-metallic version of our highly successful 1” OM025, designed to deal with some of the more aggressive media our metal OM’s can’t be used on. On DEF/Urea (AdBlue) for instance, it’s moulded construction offers a cost and weight saving with no loss of performance. Reed switch and Hall effect pulsed outputs are available with an option for quadrature pulse giving higher resolution and direction indication. ...
-
Flowtechnik - Model PE202 Series - PVDF Low Flow Magnetic Inductive Flowmeters
Manufactured from highly chemically resistant materials and completely non-metallic the PE is ideally suited to metering Acids and other corrosive media. With its unique construction the PE requires no straight pipe runs before or after, allowing it to fit into the tightest of spaces and still accurately measures even if the media is delivered with peristaltic or diaphragm metering pumps which can cause pulsations in the flow. With its pulse and analogue ...
-
Process Sensors & Instrumentation - Temperature Sensors
PT100, PT1000, Type K, J or T Tank Mounting Temperature Transmitters.
-

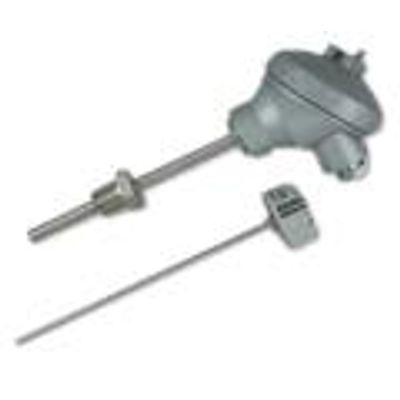

Flowtechnik - Model PPL8 - Tank Mounting Temperature Transmitters
The PPL8 sensor incorporates a pocket as well as a spring loaded insert which allows the sensor to be withdrawn extremely easily without breaking into the process ...
-
Process Sensors & Instrumentation - Process Level Sensors & Switches - Guided Wave Radar Level Sensors
Energy optimized, high frequency electromagnetic impulses, generated by the electronics, are propagated along the probe. When these impulses hit the surface of the media, part of the impulse energy is reflected back up the probe to the electronics. The level is calculated from the time difference between the impulse sent and the impulses reflected. The sensor can output the analysed level as a continuous measurement reading through its current output, and it can convert the one value into a freely positionable switching output signal. TDR Sensors are also known as Guided Radars or Guided Wave Radars (GWR).
-

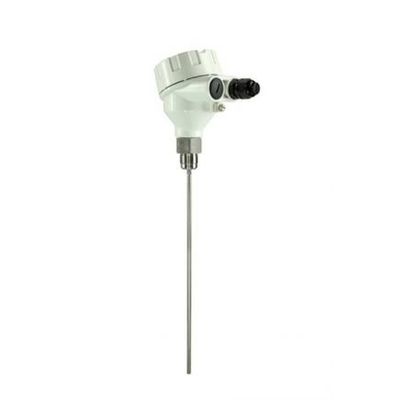

Flowtechnik - Model MG1-E - Single Probe TDR Level Transducer for Liquids and Solids
MG1-E Single Probe TDR (Time Domain Reflectometry or Wave Guided Radar) Level Transducer for Liquids and Solids, Tank Measurement from 0.1m to 3m, ATEX ...
-

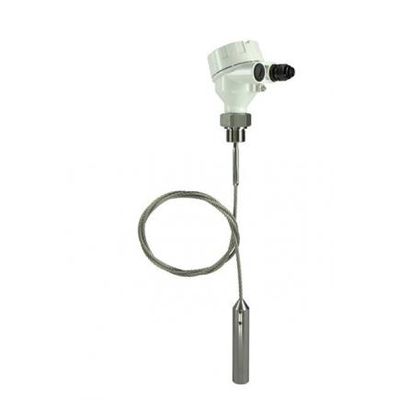

Flowtechnik - Model MG1-S - Cable Level Probe for Liquids and Solids
MG1-S Cable Probe TDR (Time Domain Reflectometry or Wave Guided Radar) Level Transducer for Liquids and Solids, Tank Measurement from 1m to 20m, ATEX ...
-

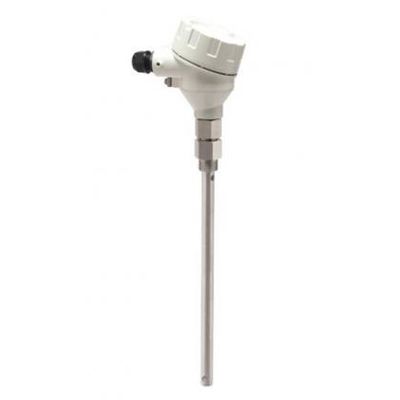

Flowtechnik - Model MG1-C - Coaxial TDR Level Probe for Liquids and Solids
MG1-C Coaxial Probe TDR (Time Domain Reflectometry or Wave Guided Radar) Level Transducer for Liquids and Solids, Tank Measurement from 0.1m to 6m, ATEX ...
-
Process Sensors & Instrumentation - Process Level Sensors & Switches - Float Level Switches
A series of economic versatile float level switches for liquid level control.
-

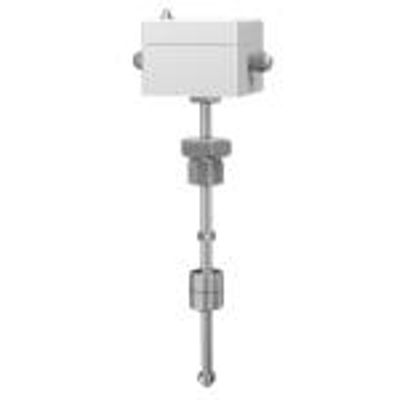

Flowtechnik - Model LCF - Float Level Controller
LCF level controller combines a 2 point float type level probe (LCSFC) and a standard LC05 controller installed inside an ABS protection enclosure with IP66. A large variety of versions based on different plastic and stainless steel floats are ...
