Ultra Check, Inc. products
Ultra Check - Complete Guage Pole Seal Unit
Ultra Check's Safe Sleeve is a complete gauge pole seal unit that seals the outside of gauge poles (guide pole) and the deck / well opening. This system alone provides a 96% reduction in emission losses, but combined with a Float system it provides a 99% loss reduction. The Standard Safe Sleeve is a gauge pole emission control system that includes an aluminum or Stainless Steel Slide Plate with a bonded Buna-N or Viton rubber gasket to cover the deck / well opening, a PTFE Zero Gap Pole Wiper and a tapered PTFE, Aluminum, or Stainless Steel Pole Sleeve / Skirt

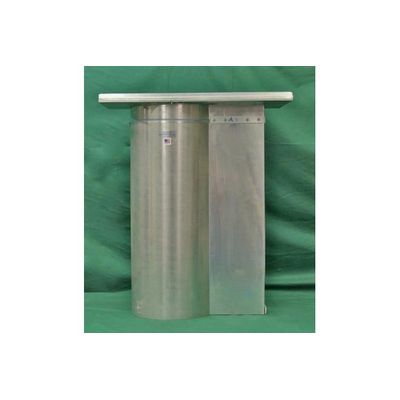

Ultra Check - Ladder / Gauge Pole Combination Safe Sleeve
There are several variations of Ultra Check Safe Sleeves and they are all special designed and custom built to the customer's specifications: Our Ladder / Gauge Pole Combination Sleeve/Seals (Ladder Seal) or Ladder Style Safe Sleeve (two-pole) Has an Aluminum or SS Slide Plate with a Buna-N or Viton Well Gasket to seal the ladder well opening, a PTFE Zero Gap Two Pole Wiper with a PTFE or aluminum Pole Sleeve / Skirt and a multi-layered ladder flap seal.
Ultra Check - Thermo-Well Safe Sleeve (Two-Pole)
This unit also utilizes a Slide Plate with Buna N or Viton Well Gasket, a PTFE Zero Gap Two Pole Wiper, a PTEF or Aluminum or SS Pole Sleeve / Skirt.

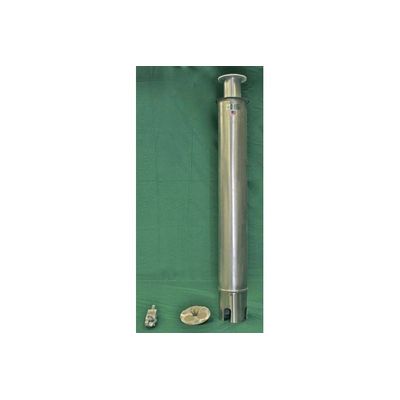

Ultra Check - Tall Float (Gauge Pole Tall Float & Reel)
Ultra Check’s Tall Float for the gauge pole consists of a Float (canister), Reel, Stainless Steel Guide Cable, Guide Cable Weight, Triple Seal Assembly, Single Seal and the Axle.
Ultra Check - Hollow Floats Systems (Displacer & Radar Type for ATG)
The Hollow Float systems are used to seal the inside of gauge poles that have automatic tank gauging devices using either a Displacer or Radar to sense the level of the product, and in some cases the water level at the bottom of the tank. The Displacer Type Hollow Float is designed to seal the gauge pole, act as a secondary stilling well, and allow the displacer to operate without interference.
Ultra Check - Drip Sink (Gauge Pole Float Basin)
Ultra Check’s Drip Sink is a Gauge Pole Float Basin that helps control the mess that occurs when floats are pulled, gauging takes place, and samples are taken. Product residue drips into the sink and drains back into the tank. The Drip Sink is made of aluminum and is bolted to the gauge pole flange.
Ultra Check - Fixed Plate Adapters
Ultra Check’s Fixed Plate Adapter is the solution to the problem of tanks that do not have a fixed plate welded to the top of the gauge pole well where it passes through the roof and therefore will not normally accept emission control devices. Ultra Check, Inc. will in this case design and custom build a Fixed Plate Adapter to suit your needs. The Fixed Plate Adapter is split and can be placed around the gauge/guide pole and can be either flange mounted or clamped to the pole.
