UNAC SAS products

UNAC`s 300P trencher, depending on the tool selected, can trench through any type of soil up to 2.50m in depth and 800mm in width. With the accessories, the trencher can hold a reel for the mechanical laying of cable, conduit or pipes before closing the trench.

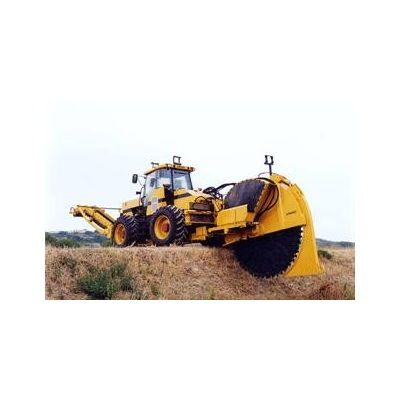

UNAC`s 500P trencher, depending on the tool selected, can trench through any type of soil up to 2.50m in depth and 800mm in width. With the accessories, the trencher can hold a reel for the mechanical laying of cable, conduit or pipes before closing the trench. The 500P trencher`s tyre carrier was made after the 300P was a resounding success, still custom-made to meet the specific needs of the work site. The mechanically welded chassis with box-section side rails provides high resistance to the vibration and stress imposed by the trench-digging tool. The large diameter tyres allow the machine to travel over all types of terrain. The ergonomic and pressurized cab offer a panoramic view of the tool and the road, the reel carrier or conveyors and the excavated soil/rock loading vehicle. The carrier is equipped with a tool slide interface which allows various tools to be mounted, according to the needs and characteristics of each project.

UNAC`s 200SC trencher on caterpillar tracks, depending on the tool selected, can trench through any type of soil up to 1.40m in depth and 400mm in width. With the accessories, the trencher can hold a reel for the mechanical laying of cable, conduit or pipes before closing the trench. The carrier for the 200SC trencher on caterpillar tracks was custom-manufactured to meet the specific needs that arise with trenching. The mechanically welded chassis with box-section side rails provides high resistance to the vibration and stress imposed by the trench-digging tool. The caterpillar tracks allow the trencher to travel over any terrain, and can be equipped with rubber units for travelling over asphalt. The driving station is open and protected by a simple mechanically welded structure. The carrier is equipped with a tool slide interface which allows various tools to be mounted, according to the needs and characteristics of each project.
