Underground Magnetics products

Mag Series Packages

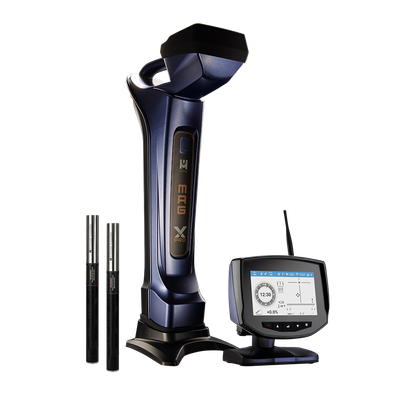

Underground Magnetics - Mag X COR System Receivers

The Mag X COR system from Underground Magnetics is designed to simplify drilling operations by providing essential core features coupled with the robust power known from their locators. This system boasts Faraday shielded 3D antennas and supports up to 16 frequencies ranging from 0.325kHz to 41kHz. It operates efficiently within temperatures of -4°F to 140°F (-20°C to 60°C) and utilizes a 915 MHz frequency with four radio channels, offering a range of up to 3,000 feet (900 meters). The device is powered by a rechargeable 12.5V lithium battery that ensures up to 50 hours of operation and is rated IP65 for durability. Compatible transmitters for this system include Echo ST, Echo X-Mini, Echo 50XF, and Echo 70, with prices ranging from $1,200 to $4,500. This system is ideal for complex drilling operations and aims to enhance efficiency and accuracy in the field.

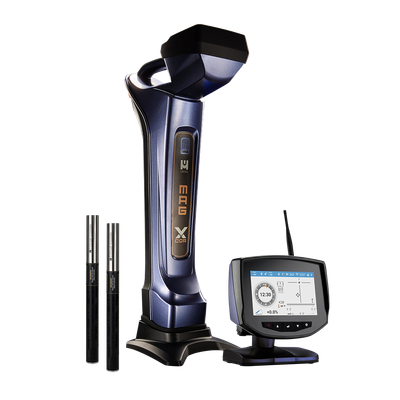

Underground Magnetics - Mag X Pro HDD Locating System

The Mag X Pro is an advanced horizontal directional drilling (HDD) locating system developed by Underground Magnetics. Equipped with a solid core 3D antenna cluster and compatible with multiple Echo transmitters, this system offers powerful performance for tough drilling operations. With frequency ranges from 0.325 kHz to 41 kHz and operational temperatures between -4°F and 140°F, it ensures reliability across various conditions. Additional technical features include four radio channels with a range up to 3,000 feet and a rechargeable lithium battery with a 50-hour life span. The Mag X Pro is designed to optimize drilling precision, making it suitable for complex projects. Its IP65 rating ensures durability under harsh conditions. The system's compatibility with a range of Echo transmitters enhances its versatility and effectiveness in diverse HDD applications.

Mag Series Receivers

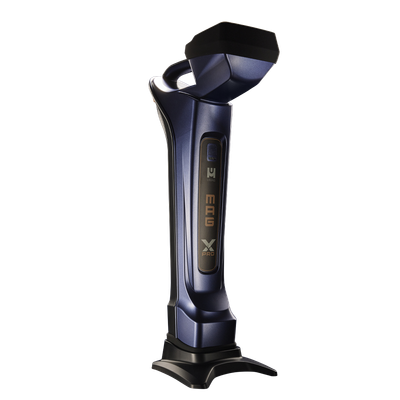

Underground Magnetics - Mag X PRO Receiver

The Mag X Pro Receiver is positioned as the most powerful HDD (Horizontal Directional Drilling) locating system from Underground Magnetics. It is designed to enhance efficiency and effectiveness in the field, especially when paired with the new Echo 75XF transmitter. The system features a robust 3D antenna cluster, supports 16 frequencies ranging from 0.325kHz to 41kHz, and operates within a temperature range of -4°F to 140°F (-20°C to 60°C). It offers extensive coverage with four radio channels reaching up to 3,000 feet (900 meters). The receiver is also IP65 rated for dust and water resistance and runs on a rechargeable 12.5V lithium battery providing up to 50 hours of operation. Compatible transmitters include the Echo series, with models like Echo ST, Echo X-Mini, and Echo 110, among others. The system is priced starting at $12,000.

Echo Series Transmitters

Underground Magnetics - Model Echo ST - Duct Transmitter

The Echo ST duct transmitter is designed for locating existing ducts efficiently. This advanced transmitter operates at a frequency of 30 kHz and is compatible with any UMag locating system. The device features a compact design with dimensions of 6 inches in length and 0.75 inches in diameter. It is powered by a Super Cell 16340 x 1 rechargeable lithium battery, offering up to 18 hours of operation in normal mode and providing a signal range of up to 60 feet (18 meters). The Echo ST duct transmitter is an essential tool for professionals in the field of underground utility detection, ensuring precise and reliable location tracking. Starting at $1,200, this transmitter is robust and designed for optimal performance in various operational environments.
