Model: UNC-110. Engine Type: Honda GX160. Power kW(hp): 3.6(5.5). Weight kg(lbs): 113(249). Frequency vpm: 4950. Centrifugal Force kN: 20. Compaction Depth cm(in): 30(12). Travel Speed cm/s(in/s): 36(14). Efficiency m2/hr(ft2/hr): 653(7028). Plate Size cm(in): 64.2*50.4(25.2*19.8). Water Tank Capacity L: 10. Package cm(in): 77*52*61(30.3*20.5*24).

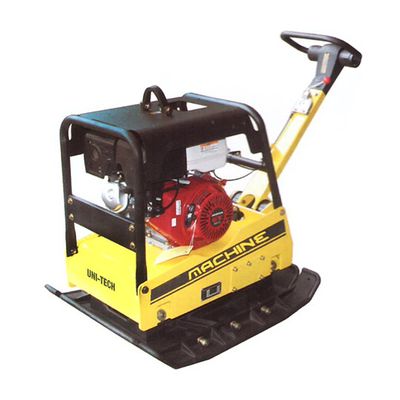

Model: UNRC-330. Engine Type: Honda GX390. Power kW(hp): 8.2(13.0). Weight kg(lbs): 255(560). Frequency vpm: 3750. Centrifugal Force kN: 38. Compaction Depth cm(in): 90(34). Travel Speed cm/s(in/s): 35(14). Efficiency m2/hr(ft2/hr): 857(9221). Plate Size cm(in): 82.8*48(32.6*18.9)Extension plate:82.8*10(32.6*3.9). Package cm(in): 90.5*50.5*113(35.6*19.9*44.5).

Model: UNC-330-Y. Engine Type: Honda GX390. Power kW(hp): 8.2(13.0). Weight kg(lbs): 260(572). Frequency vpm: 4800. Centrifugal Force kN: 38. Compaction Depth cm(in): 85(33.5). Travel Speed cm/s(in/s): 35(13.8). Efficiency m2/hr(ft2/hr): 856(9214). Plate Size cm(in): 83.5*48(32.9*18.9) Extension plate:83.5*10(32.9*3.9). Package cm(in): 90*66.5*127(35*26.1*50).

Model: UR-642-3. Engine Type: Honda GX390. Power kW(hp): 8.2(13). Weight kg(lbs): 632(1393). Starting Mode: Electric. Travel Speed m/hr: 4000`. Drive Type: Hydraulic Drive. Vibration Type: Mechanical. Steering Mode: Mechanical Steering. Steering Angle: 16°. Vibration Frequency Hz: 55. Centrifugal Force kN: 11.3. Water Tank Capacity L: 26. Drum Size mm: Φ 400*650 * 2. Gradeability: 27°. Package Size cm(in): 155*87*195(61*34*77).

Model: UR-642-Z-2. Engine Type: Honda GX390. Power kW(hp): 8.2(13). Weight kg(Ibs): 960(2116). Starting Mode: Electric. Travel Speed m/hr: 5000. Drive Type: Hydraulic Drive. Vibration Type: Mechanical. Steering Mode: Hydraulic Steering. Steering Angle: 28°. Vibration Drum (Front/Rear): Front. Vibration Frequency Hz: 65. Centrifugal Force kN: 25. Water Tank Capacity L: 65. Drum Size mm: 560*700 mm *2. Gradeability: 30°. Package Size cm(in): 180*82.5*146(70.9*32.5*57.5).

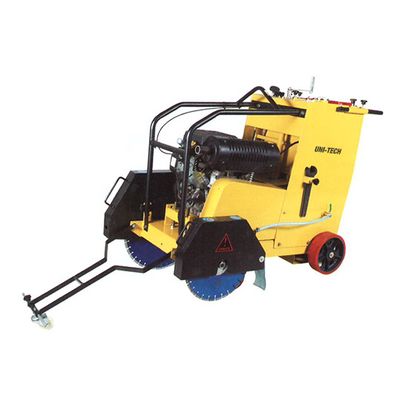

Model: UNCC-26-Y. Engine Type: Honda GX630. Power kW(hp): 12(19). Weight kg(lbs): 298(657). Max Cutting Depth cm(in): 25(9.8). Blade Size cm(in): 35-70(14-27). Depth Adjustment: Handle Rotation. Driving: Self Propelled. Water Tank Capacity L: 81. Center Distance of Two Blades cm: 61. Package cm(in): 135*73*123 ( 53.2*28.7*48.4).

New powerful motor : Input 1,800W. Single side handle. Built-in controller to protect motor. Double insulaton motor. Available soft start operation. Powerful impact.

New powerful motor : Input 1,100W. Built-in Circuit breaker to protect motor. Double insulaton motor. Light weight pole base : 40mm aluminium square pipe.

New powerful motor : Input 2,400W. 360 ° Revolvable water-feed cock. Two speed. Adjustable clamp system. Built-in clutch
Built-in circuit breaker to protect motor. Light weight pole base : 55mm aluminium square pipe.

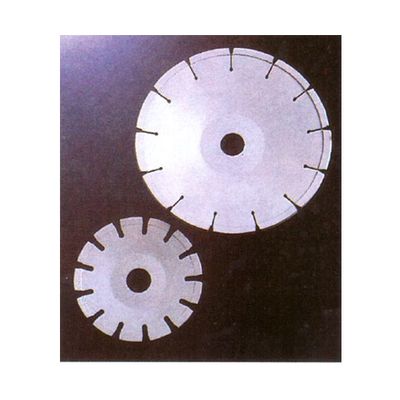

Concave saw blades are designed for fast cutting / long life to loop granite and marble slab.
