UniPOS products

Fire control panel FS4000 is designed to operate with conventional automatic fire detectors and manual call points. The panel has outputs provided for external executive devices.

Maximum number of fire detectors in a line: 32. Connecting line: two-wire. Maximum resistance of a line: 100Ω.

Fire Control Panel FS5100 is an up-to-date, high reliable, multifunctional and versatile unit, providing the user with unexpected potential in the design, installation and operation of conventional fire alarm systems.

The Fire Extinguishing Control Panel is designated for fire protection, monitoring and control of systems for active extinguishing – gas, powder, aerosol, water, etc.

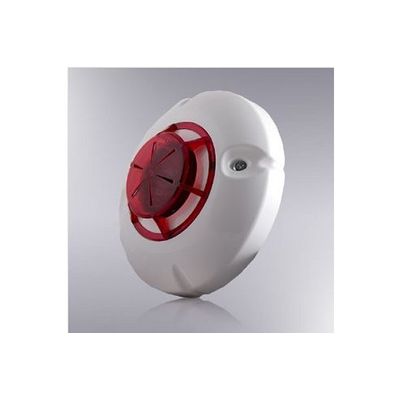

Optical flame fire detector FD 8040 is designed to provide early warning of a fire condition responding to open flame. The fire detector reacts within the light spectrum of the flame and has maximum sensitivity of the infrared range. The opearation principle is based on the reception of flame emissions with their typical flicker frequency within the whole spectrum range. The infrared sensor signal - amplified, filtered and shaped is being sent to the time delay circuit. If the flame impact has decreased during the time delay , the fire detector dos not activate.

FD3050 Manual Call Point – It is designed to release a signal for a Fire condition to the Fire Control Panel upon manual activation by breaking the glass on the place, signed with arrows. The light indication for activating the manual call point is provided by a red LED. There is a possibility for testing by a special key. It satisfies the requirements of the European Standard EN54-11 for a type A manual call point.

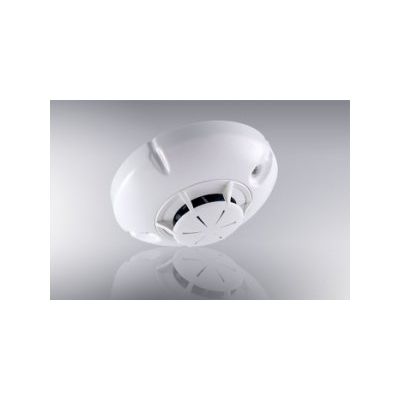

The fire detector provides reliable early warning of a Fire condition upon ambient temperature reaching a fixed temperature threshold. It is available in two versions (A2S or BS) depending on the temperature threshold in accordance with the European Standard EN54-5. The fire detector is suitable for premises with normal or high ambient temperature, with possible sudden changes.

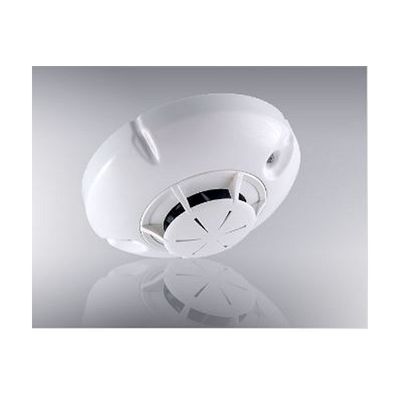

The fire detector provides reliable early warning of a Fire condition upon reaching a rate of rise of the temperature or fixed temperature threshold in the protected premises. It is available in two versions (A2R or BR) depending on the temperature threshold in accordance with the European Standard EN54-5. The fire detector is suitable for premises with normal ambient temperature, without possible sudden changes.

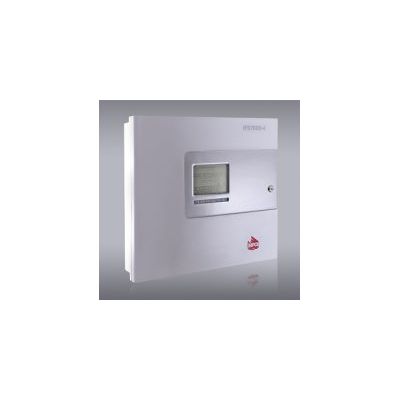

Interactive Fire Control Panel IFS7002 with four signal loops is designed to operate with addressable automatic fire detectors and manual call points. It controls addressable executive devices integrated into fire alarm loops. The addressable executive devices can be power supplied from the fire alarm loop or from a power loop. The panel has outputs provided for integration of external executive devices.

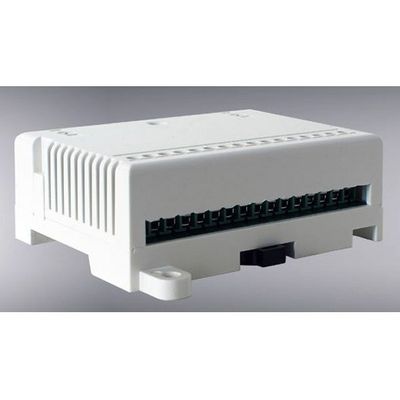

The Input-Output device FD7203 is designated to produce and send an electrical signal to various devices in case of occurred events and recording external impacts, typical for a fire condition events. The device is compatible with addressable fire control panels IFS7002, supplementing the possibilities of the addressable systems of series IFS7000.
