Unisorb products

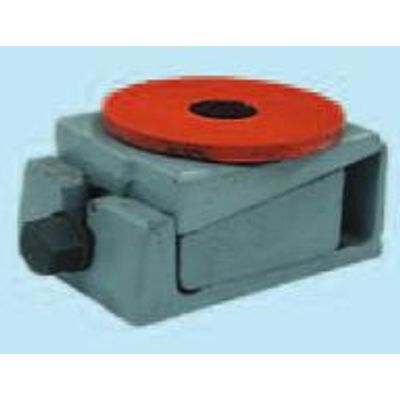

LEV-L-INE mounts, with their spherical aligning discs, provide true serf-alignment with an absolutely even load distribution over the entire bearing surface.  They are designed to compensate for uneven floor distortion found in most industrial plants, and may be used with or without anchor bolts.

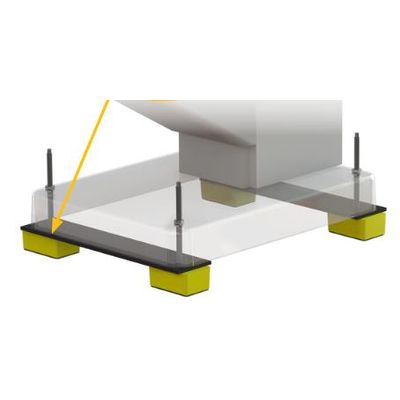

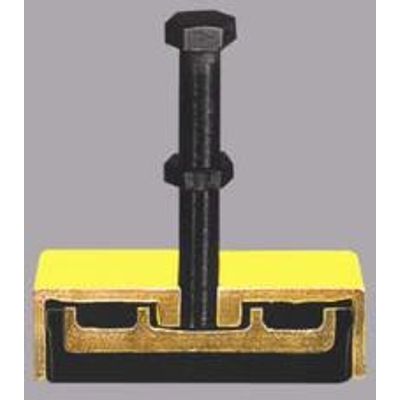

Designed for the hollow bases of mills, lathes, grinders and other machines. Provides vibration control, leveling and support.

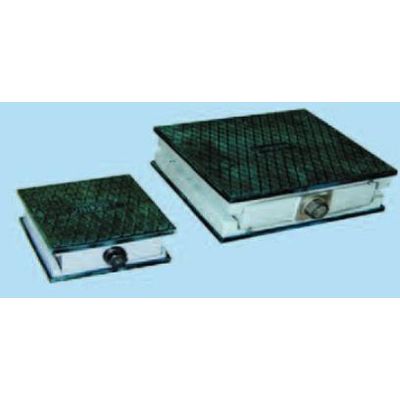

The UNISORBTn-Wedge Mount series comes in two sizes. The TW-8000 and TW-35000 are load rated at 8000 lbs. (3636 kg) and 35000 lbs. (15909 kg) respectively. These similarly designed Th-Wedge Mounts both utilize two stationary and one sliding wedge to provide mechanical lift for the mounts. An adjustment bolt moves the center wedge fore and aft between the stationary wedges to provide lift to the top wedge. Each model has height ranges based on the position of a retainer within the mounts. The retainer (shaded in the top left illustration) can be placed in one of two retaining sockets. Placing the retainer in the socket nearest to the adjusting bolt head moves the mount through the lower height range. Positioning the retainer in the rear socket moves the mount through the upper height range.

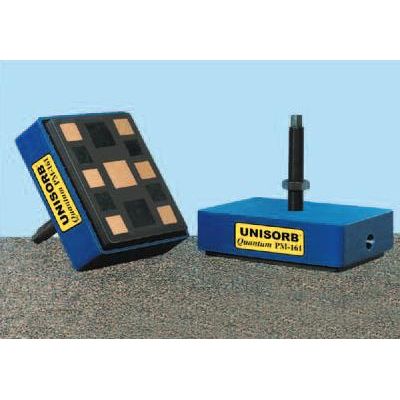

UNISORB Quantum PM Press Mounts for heavy duly presses eliminate the need to anchor machines to the floor. They solve impact-shock and vibration problems while providing precision leveling and alignment for trouble-free operation.

This UNISORB Foundation Isolation Solutions publication presents conceptual and detailed information covering the various product lines available for satisfying the needs of our customers in this important facet of equipment installation.   Included is a section dealing with the subject of vibration theory. This is presented to assist in understanding the underlying reasons for the necessity of adequately isolating machinery from vibrations which adversely affect the proper performance of expensive and sophisticated equipment in their facilities.  It will also aid our customers in their efforts to appropriately request UNISORB`s help with their specific applications.

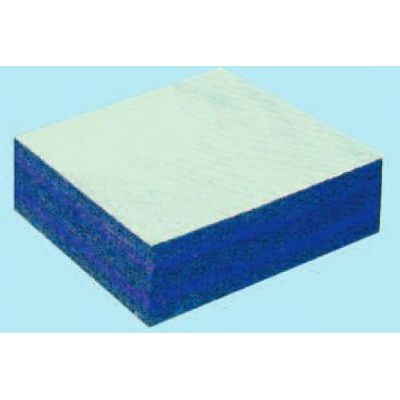

UNISORB RED-LINE and RED-LINE ANCHOR PADS Type H. HB, E. EB, D and DB have long been the standard for achieving superior results in the toughest shock/vibration applications. These pads are 100% wool fiber and are suitable for normal industrial environments being unaffected by exposure to oils, cutting fluids and coolants.

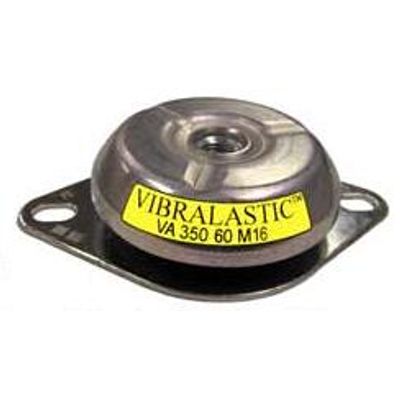

For effective isolation of vibration and noise on machines with rotating elements.
