United Equipment Technologies (UET) Mixers, Inc. products

XCEL-200N to 600N Series mixers are engineered and manufactured specifically for the demanding operating parameters associated with difficult mixing applications. XCEL-200N to 600N mixers feature custom gearboxes with helical/spiral bevel gear combinations. Large diameter output shafts accommodate the high bending moments and loads associated with these types of applications.

XCEL-15 to 24 Series mixers are ideal for a wide range of applications, where efficiency and dependability are key. The gearbox uses high efficiency helical gears and oversized bearings to handle long shafts with high overhung loads. Parallel drive gearboxes provide a vertical mount with a minimal footprint. The use of oversized and spread output greased bearings result in an extended gearbox service life. Typical mounting options include baseplate or flange.

Every XCEL-3 to 10 Series mixer is designed and manufactured for your application, using high quality components, engineered specifically for dependable mixer service. XCEL-3 to 10 Series mixers are available with pumping rates up to 54,000 gpm and utilize standard industrial motors up to 25 hp. Typical applications include storage tanks and water treatment.

The perfect solution for mixing low viscosity fluids in batches under 1,000 gallons. The XCEL-2 mixer offers high pumping rates and a cost effective price tag. These mixers include industrial motors, rugged cast iron gearboxes, hardened steel gears, and anti-friction bearings.

UET Mixers’ portable agitators are built to last and designed to handle tough mixing applications, such as lime makedown and polymer storage. Industrial motors with standard NEMA frames, hardened steel gears, and anti-friction bearings are all standard.

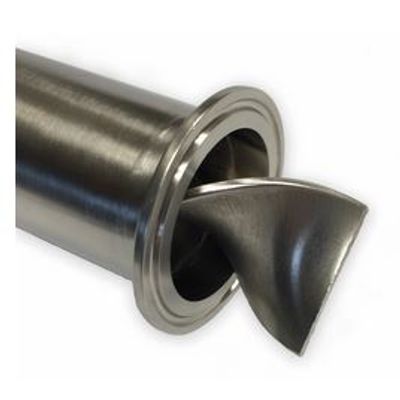

Series 1 static mixers utilize 180-degree helical elements. They are available in a wide range of materials and end connections, with optional ports, jackets, and more. These mixers are a terrific solution for a wide variety of in-line mixing applications, including general chemical, food & beverage, pharmaceutical, and more. 180-degreee helical elements are a proven, time tested solution. Materials of construction include a wide variety of metals, Teflon, sanitary, and more.

Series 2 static mixers feature UET’s whirled mixing elements, which are both bent and twisted. These mixing elements result in a shorter overall length than traditional static mixers, yet still provide terrific mixing performance. UET whirled elements are used in many industries, including chemical/petrochemical, oil & gas, food & beverage, water treatment, and more. Materials of construction include a wide variety of standard and exotic metals, fiberglass, Teflon, PVC/CPVC, etc.

Series 3 static mixers are best suited for applications with highly turbulent flow, such as water treatment and gas blending. The mixer consists of custom engineered, 45-degree mixing foils, welded inside of the pipe. These mixing foils create specific flow patterns that produce extremely efficient mixing with minimal headloss.

PAC wafer-style static mixers are an ideal solution for highly turbulent mixing applications, when minimal space is available. These mixers are typically installed between two flanges. While most commonly used in the water treatment industry, PAC mixers can be used to add mixing wherever space restrictions exist.

In a UET Mixers Pipeline Mixer, the fluids enter a high shear zone where they experience intense mixing. These mixers are designed for continuous processing, where the process requires more shear then a static mixer can provide. Mechanical Pipeline Mixers can be used to blend miscible fluids or disperse immiscible fluids. Pipeline Mixers are available in a wide range of configurations and materials, and can be mounted at any angle to meet process requirements.
