UNITRON products

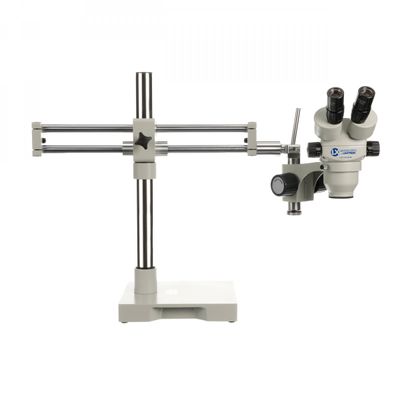

Specifications: Binocular viewing head. Baked-on powder coat for superb durability. Super widefield 10x/23mm eyepieces with eyeshields. High-quality achromat lenses with anti-reflective coatings. 0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head. Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes. Magnification range 7x-45x (with 10x eyepieces). 8″ working distance (when used with optional 0.5x reducing lens); Standard working distance with 1.0x lens shield is 118mm. Heavy duty cast aluminum housing. Dual boom roller-bearing stand with 17.5″ vertical and 22″ horizontal reach (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.  Shipping weight 61 lbs.

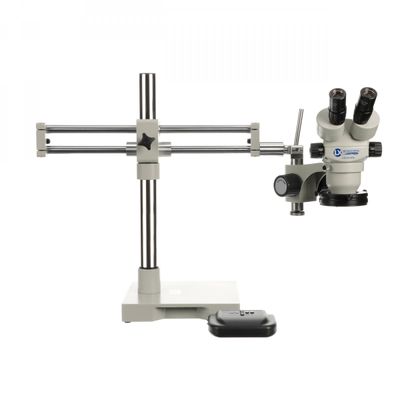

Specifications: Binocular viewing head. Baked-on powder coat for superb durability. Super widefield 10x/23mm eyepieces with eyeshields. High-quality achromat lenses with anti-reflective coatings. 0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head. Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes. Magnification range 7x-45x (with 10x eyepieces). 8″ working distance (when used with optional 0.5x reducing lens). Heavy duty cast aluminum housing. Dual boom roller-bearing stand with 17.5″ vertical and 22″ horizontal reach (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.  Dimmable LED High Output Ring Light (CAT# 18743), 5600K color temperature, 50,000 hour rated lamp life and produces 5800 foot-candles at 4.5" working distance.  Shipping weight 61lbs.

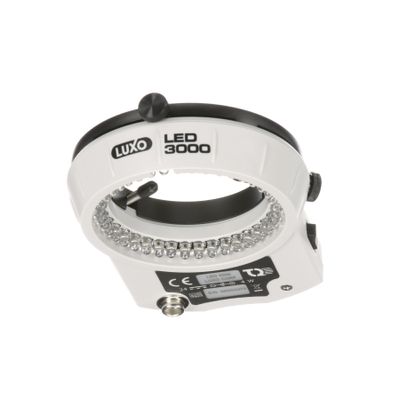

Specifications: 40 LED bulbs with variable intensity light control. Color temperature: 6000K. Lamp life: 50,000 hours. 9w of power produces 3600 foot candles at 4.5" working distance. ESD Safe (static grounding cables ensure static dissipation). Machined aluminum mounting ring. Supplied with 3 soft tip mounting screws. Rugged polycarbonate housing. Supplied with controller and power supply. Fits 1.25” - 2.6” (66mm) lenses. Silent vibration free operation. Tested and certified to EN/IEC 62471, IEC 61010-1:2010  standards.

Specifications: 40 LED bulbs with variable intensity light control. Color temperature: 6000K. Lamp life: 50,000 hours. 9w of power produces 3600 foot candles at 4.5" working distance. ESD Safe (static grounding cables ensure static dissipation). Machined aluminum mounting ring. Supplied with 3 soft tip mounting screws. Rugged polycarbonate housing. Supplied with controller and power supply. Fits 1.25” - 2.6” (66mm) lenses. Silent vibration free operation. Tested and certified to EN/IEC 62471, IEC 61010-1:2010  standards.

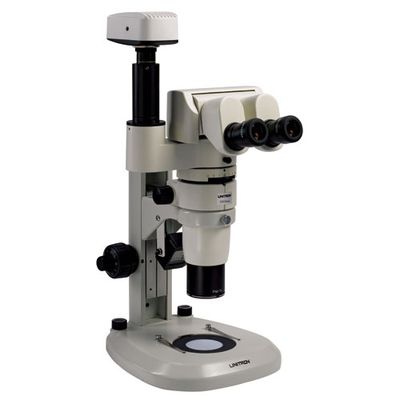

The UNITRON Z6 Series is a modular system designed to deliver exceptional ergonomic and optical performance. Our most popular parallel light path stereo microscope, the Z6 Series features a 6.3:1 zoom ratio, and is our top choice for medical device manufacturing, industrial inspection, assembly, quality control, OEM integration and research applications. Users can select either an ergo tilting binocular head with an adjustable viewing angle of 0° – 35° for true fatigue-free viewing, or a binocular head with a 20° angle and extended eyetubes for maximum viewing comfort. All systems can easily add a photo port/beam splitter for attaching a camera to enable image capture or output to a video monitor.
