Universal Flow Monitors, Inc. products

Series Code: OFS - Laminar Flow Element differential pressure flowmeters are good for clean, dry, non-corrosive, non-condensing gases. Corrected for temperature and pressure, they have a mass flow output.

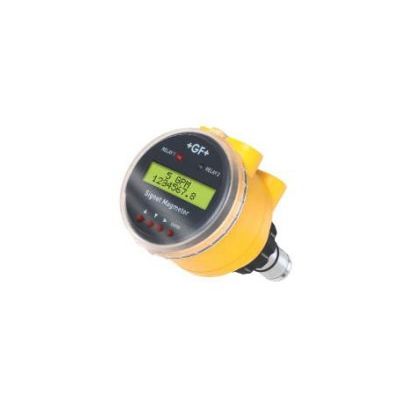

The GF Signet 2551 Magmeter is an insertion style magnetic flow sensor without any moving parts. All versions of the 2551 are constructed of corrosion-resistant materials to provide long-term reliability with minimal maintenance costs. Utilizing the comprehensive line of GF Signet installation fittings, sensor alignment and insertion depth of the 2551 is automatic. These versatile, simple-to-install 2551 deliver repeatable flow measurement over a wide dynamic range in pipe sizes ranging from DN15 to DN200 (0.5 to 8 inches), satisfying the requirements of many diverse applications.

The SN series has the following characteristics and/or options: Maximum flow rates from 0.5 - 20 GPM. Brass construction. Mechanical pointer. Mechanical switch. 4-20 mA transmitter. 4-20 mA transmitter with HART. LCD display. No up or downstream pipe length requirements.

The LN series has the following characteristics and/or options: Maximum flow rates from 80 - 500 GPM. Brass construction. Mechanical pointer. Mechanical switch. 4-20 mA transmitter. 4-20 mA transmitter with HART. LCD display. No up or downstream pipe length requirements.

The MN series has the following characteristics and/or options: Maximum flow rates from 10 - 160 GPM. Brass construction. Mechanical pointer. Mechanical switch. 4-20 mA transmitter. 4-20 mA transmitter with HART. LCD display. No up or downstream pipe length requirements.

A DeltaPoint Lite (DPL) or DeltaPoint Manifold (DPM) paired with the WET Venturi system when active water travels through a Venturi valve creating a vacuum on the weld lines. Excess water drains from the cooling lines preventing water explosion during cap change / maintenance. Utilization of the WET system not only prevents water expulsion but it eliminates residual water in the weld cooling lines from draining onto the plant floor.

The PI series has the following characteristis and/or options: 2% FS accuracy (1/% available for flow rate of 1 GPM and higher). Max Liquid Pressure 500 PSI (34.48 Bar) or 1500 PSI (103.42 Bar). 10:1 turn down ratio. Low flow readings from 0.25-30 GPM. Less sensitive to viscosity change. Mechanical pointer and scale readout. 4-20 mA transmitter available. Optimized for circulating lubricants with viscosities between 20 - 300 Centistokes. Stand up to tough environments. Field tested in auto plants, power plants, steel mills and ore processing mills. No up or downstream pipe length requirements.

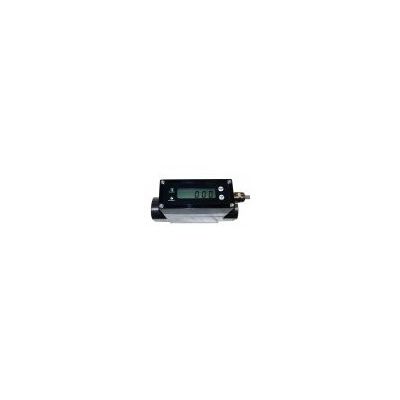

The CP series has the following characteristics and/or options: Maximum flow rates between 3 - 12 GPM. No moving parts to clog or wear. 4-20 mA output. Solid state relay configurable as alarm set point or pulse output. 3-digit LED digital display (total or rate). Gallons or Liters. For coolant, water, water/glycol mix (up to 50%).. Certified CSA and CE.

The Rugged and Compact Manifold design of the MSM flow meter is used for monitoring high pressure applications such as gun drilling, reaming, and CNC machining water and coolant.
