Universal Laser Systems, Inc. (ULS) products

36 x 24 in. (914 mm x 610 mm) Material Processing Area. Supports material thickness up to 12 in. (305 mm). Supports three wavelengths - 9.3 µm CO2, 10.6 µm CO2 and 1.06 µm Fiber. Supports three laser sources (at the same time) –two CO2 laser sources and one permanently mounted fiber laser source. Camera Registration. Automation Interface. Patented Multi-Wave Hybrid Technology. Patented Controllable Power Density Optics. Precision Material Independent Autofocus. Programmable Gas Assist. Laser System Manager control software. Intelligent Materials Database. 21” (533 mm) Touch Screen Control Panel. Rapid Reconfiguration technology. Patented SuperSpeed technology available. Fire Suppression Assistance available. UAC 4000 Air Filtration available.

Material processing area of 48 x 24 in. (1219 mm x 610 mm). Supports material thickness up to 12 in. (305 mm). Supports three wavelengths - 9.3 µm CO2, 10.6 µm CO2 and 1.06 µm Fiber. Supports two laser sources - up to two CO2 laser sources or one CO2 laser source and one permanently mounted fiber laser source. Patented Multi-Wave Hybrid Technology. Patented Controllable Laser Power Density optics. Precision Material Independent Autofocus. Intelligent Materials Database. Multi-Camera Vision and Registration available. 21” (533 mm) Touch Screen Control Panel available. Patented SuperSpeed technology available. Fire Suppression Assistance available. UAC 4000 Air Filtration available.

Material processing area of 32 x 24 in. (813 mm x 610 mm). Supports material thickness up to 12 in. (305 mm). Supports three wavelengths - 9.3 µm CO2, 10.6 µm CO2 and 1.06 µm Fiber. Supports two laser sources - up to two CO2 laser sources or one CO2 laser source and one permanently mounted fiber laser source. Patented Controllable Laser Power Density Optics. Patented Multi-Wave Hybrid Technology. Precision Material Independent Autofocus. Intelligent Materials Database. Multi-Camera Vision and Registration available. 21” (533 mm) Touch Screen Control Panel available. Patented SuperSpeed technology available. Fire Suppression Assistance available. UAC 4000 Air Filtration available.

Compact desktop laser system designed for multi-user environments. 24 x 12 inch material processing area equipped with a door-mounted camera. Rich features and capabilities that enhance productivity, operational efficiency, usability and safety for operators. Access control and support capabilities for administrators to effectively monitor and manage system use and performance. Laser System Manager (LSM) control software with a robust set of features, including support for up to 16 colors for assigning different speed and power settings or controlling the order of vector and raster processes. Device compatibility with support for a Windows-based PC or other platform like a Macintosh-based PC. Design software compatibility with support for a range of common interchange formats such as PDF, DXF, BMP, JPG, Tiff, PNG, SVG and G-Code.

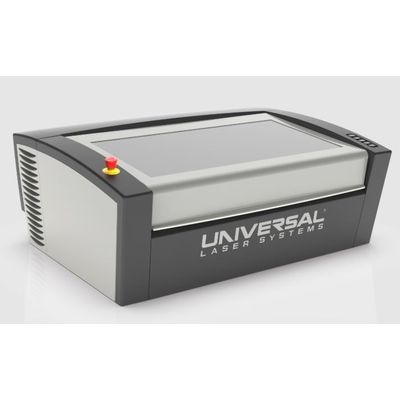

The VLS2.30DT Desktop is a compact and economical entry level platform. It offers a 16 x 12 in (406 x 305 mm) material processing area and laser power from 10 to 30 watts 10.6 or 30 watts 9.3 µm.

The VLS3.60DT is a compact and economical entry level platform that offers a 24 x 12 in (610 x 305 mm) material processing area and laser power from 10 to 60 watts 10.6 µm or 30 or 50 watt 9.3 µm.
