Universal Motion Components products

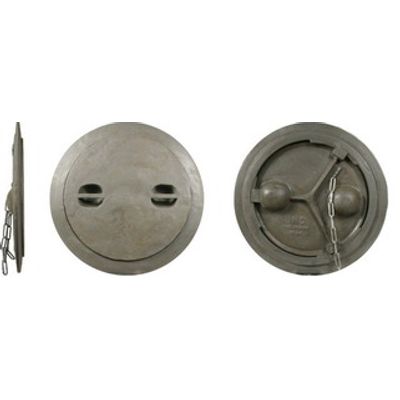

The Twist Lock hatch is a simple proven design for hatch enclosures. The twist engagement method for securing this hatch makes this the simplest hatch to operate. This hatch is made from high strength 3/8` cast steel with reinforced ribs. Built-in Lift-out handles are molded into the cover plate for convenience.

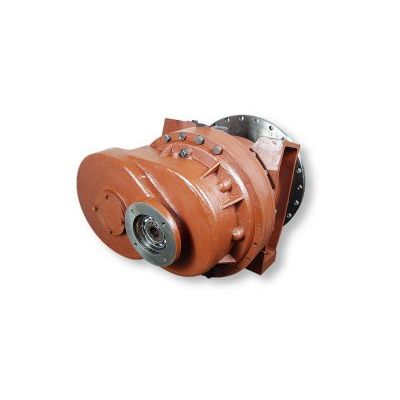

We offer replacement drum drives for Challenge 08, ZF trucks and McNeilus 5100 series and 5300 series trucks. Contact a UMC sales representative for more information about mixer truck drum drive models that UMC is currently offering. Currently these productsare available only to wholesale distributors of mixer products, and original equipment manufacturers of mixer trucks.

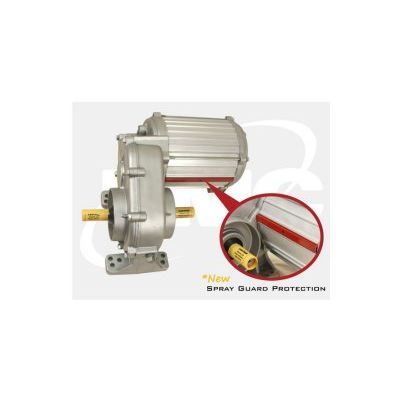

Evaluation Specification All aluminum gear case and motor housing for cooler running, longer life, and increased corrosion resistance. Proven reliability. Dual bolt mounting pattern 5`x6`, 3 3/8` x   6 3/8`. Voltage: 460V  60 Hz, 380V  50 Hz. Type: Helical gear design. High strength  steel shafting for long life and dependability. Thermally protected with automatic reset.
 All gears are heat treated. Shipped with  gear oil. Specially designed input and output seals. Top fill plug positioned to set correct oil level. All critical electrical connections  are encapsulated to resist penetration of moisture. Class F insulation and materials are used throughout. CSA approved. Efficiency 95%. Makes possible the use of smaller generators and smaller incoming wire sizes.

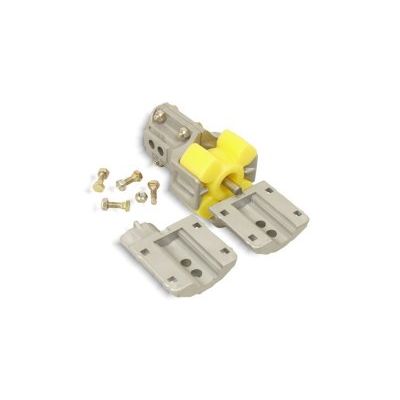

Evaluation Specifications Same great load arms and urethane insert as the standard coupler with the addition of an alignment rod. Alignment rod hold insert in place and coupler in alignment under extreme or sudden loads. Designed for use in extreme duty environments: heavy soils, Larger tire diameter, Higher torque motors, and stronger gearboxes.. Designed and tested under extreme loads to ensure coupler failure and prevent damage to gearbox. 20% increase in load carrying abilities. Urethane insert offers an environmentally stable insert with better resistance to UV rays and chemicals.
