UniWest products
Eddy Current Testing Instruments

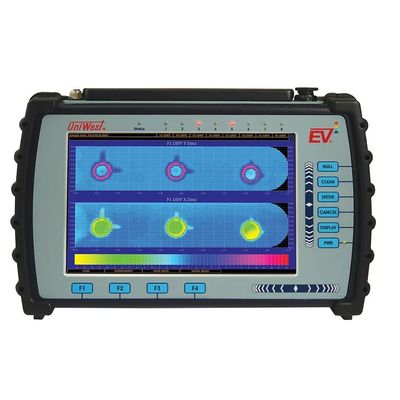

Model EVi - ECT / ECA Eddy Current Flaw Detector
The EVi works directly with the EddyView family of probes and accessories, as well as eddy current array (ECA) probes up to 64 elements (128 elements with external multiplexer). UniWest’s unmatched selection of standard and advanced display features set a new standard for flexibility of applications, ease of use, interpretation of data and overall operator accuracy. The key to the EVi’s ground-breaking performance is the display of a visual image of the surface area under inspection alongside the customary and selectable eddy current signal displays (impedance plane, A-scan or strip charts). The EVi provides a high precision, easily readable display of surface conditions enabling improved interpretation of data while giving more accurate discernment of cracks, pits, gouges and fretting.

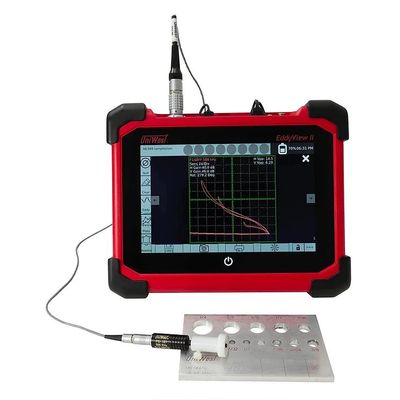

Model EddyView II - ECT / ECA Eddy Current Flaw Detector
EddyView II is UniWest`s latest advanced, user-friendly, portable Eddy Current Testing (ECT) / Eddy Current Array (ECA) instrument.
Eddy Current Systems

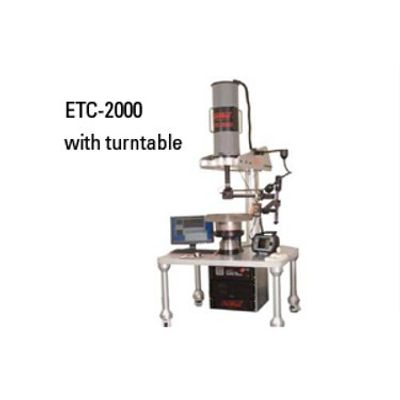

Model ETC-2000 - Jet Engine EC Scanning System
The ETC-2000 jet engine EC scanning system, developed under the auspices of the ETC (Engine Titanium Consortium), is a semi-automated system for scanning fracture-critical jet engine components. The scanner was developed to work with most jet engine OEM components requiring highly critical eddy current testing.

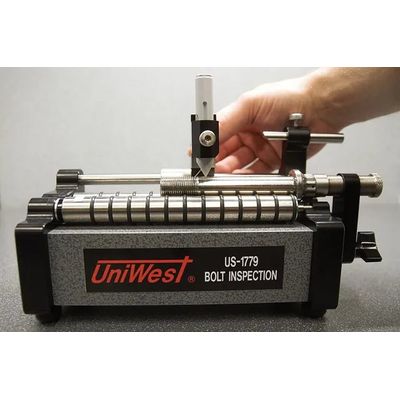

Model US-1779 - Aircraft Tie Bolt Inspection System
The US-1779 Tie Bolt System enables complete inspection of aircraft wheel bolt threads as well as inspection under the bolt head for highly accurate eddy current testing. Photo shows the US-1779 Tie Bolt Inspection System being used with the US-454A. Twin-roller flatbed for quick inspection cycles, Specialty probe US-1839 purchased seperately, Smaller footprint (2` × 3`) than other NDT equipment in wheel and brake shops, No chemicals to dispose of, Operator-independent go/no-go alarm set, Detects smaller flaws than other NDT methods, Bolts need not be free of grease
Uni-Versal Robotic Eddy Current Test Machine
The Uni-Versal™ Test Machine is revolutionizing the way products are quality tested in the automotive industry. It is the first flexible test platform that offers totally robotic testing of metal bearings and spindles utilizing eddy current testing (ECT) for cracks. It is also the first machine of its kind to offer true automatic self-calibration. The Uni-Versal™ Test Machine was designed to meet the current need for automated, reliable product quality verification of metal bearings and spindles safety-critical automotive parts. The Uni-Versal™ speeds up the verification process with no interruption of flow. It also eliminates the possibility of operator error or misreading of results. True auto-calibration ensures consistently accurate readings. Central to this machine is the UniWest US-525M multi-channel eddy current testing instrument.
