Uponor Ltd. products

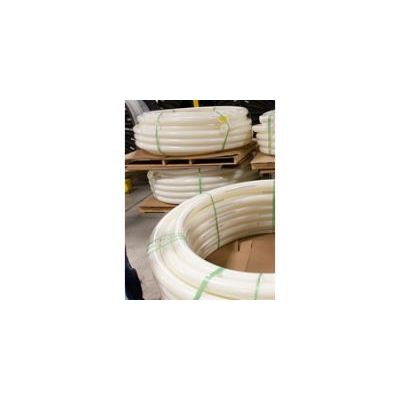

Since its introduction to the North American market more than 40 years ago, crosslinked polyethylene, or PEX, has continually gained ground on rigid copper and CPVC systems due to its superior flexibility, durability and stable cost characteristics. Uponor AquaPEX Plumbing Systems, featuring the durable ProPEX expansion fitting system, is the first choice for installers, homebuilders and homeowners looking for a product that will provide consistent reliability and performance.

With more and more engineers specifying Uponor PEX and more commercial contractors installing it, the commercial domestic water piping industry is quickly seeing the benefits of this flexible, durable and sustainable product.

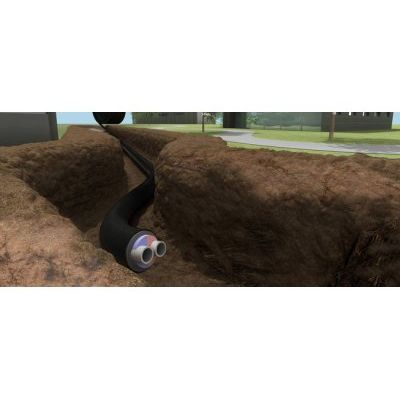

Ecoflex pre-insulated pipe is the flexible, durable, virtually maintenance-free solution for buried or aboveground commercial and residential hydronic radiant heating, cooling and potable-water applications.

ProPEX EP opposing-port tees feature 1" through 2" ProPEX flow-through connections with opposing 3⁄4" ProPEX branch outlets. The tees are made of engineered polymer, which is proven in demanding hot-water applications. Note: ProPEX tool is required. ProPEX rings sold separately.

ProPEX 1" copper branch manifolds feature 1/2" ProPEX LF brass outlets brazed to the manifold trunk. Sweat manifolds together to create the desired number of outlets. Do not exceed acceptable flow rates for 1" nominal copper. Note: ProPEX tool is required. ProPEX rings sold separately.

Uponor`s 1" Copper Manifold is 6 feet in length and features 24 individual 1⁄2" ProPEX lead-free brass outlets spaced three inches on center.1 The manifold is suitable for cutting to any length necessary to achieve the desired number of outlets. ProPEX Tool is required. ProPEX Rings are sold separately.

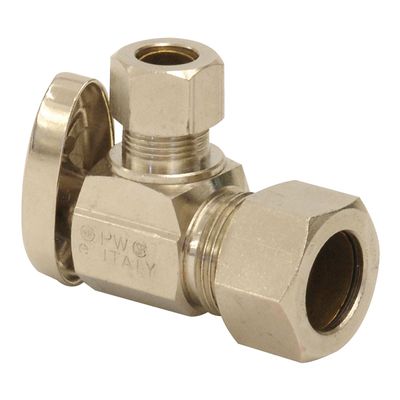

LF brass compression (quarter-turn) stop valves are chrome-plated and available in angle or straight configurations. Stop valves are used for point-of-use shutoff at the fixture. Both styles connect 1/2" Uponor AquaPEX tubing to 3/8" outside diameter (O.D.) risers. Note: Includes compression inserts and rings for the 1/2" PEX connections.

Quik Trak installation tool kits offer labor-saving speed for Quik Trak installations. The kits feature a lightweight, easy-to-use screw gun with an extension arm to reduce fatigue. The kits include a 120VAC screw gun with vertical extension arm, square-head drive screw bits, bit-retrieval tool and hard-sided case.

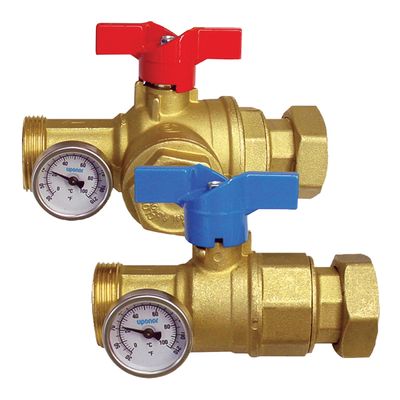

Manifold supply and return ball valves are full-flow, 11⁄4" ball valves with R32 male by R32 union nut that fits directly on the TruFLOW Jr., Classic and EP manifolds.

ProPEX engineered polymer (EP) reducing tees make diverting connections for Uponor crosslinked polyethylene (PEX-a) pipe for use in hot and cold domestic potable water systems, residential fire sprinkler systems and hydronic radiant heating and cooling systems. Each end of the tee is manufactured with an Uponor ProPEX fitting for connections to Uponor AquaPEX or Wirsbo hePEX pipe.1 Note: Branch size is listed last in the part descriptions.
