UR-CAST products

Suitable for joining pipes of different materials, such as cast iron, stainless steel, PVC, asbestos cement, polythene and so on. Mechanical locking by means of metal inserts in order to avoid pipe's axial movement. Independent clamping on both sides.- The maximum angular deviation permitted is 10º.

Wide range of diameters covering pipes from 63 to 800 millimeters.  PN-10 and PN-16 operating pressure. GGG-50 nodular cast iron. -250fi EPOXY average coating. Equipped with bichromate bolts, nuts and EPDM rubber seal. Not suitable for PVC-0 pipes.

Polythene permanent pipe repairs quickly and safely. Mechanical locking by means of grip rings in order to avoid pipe's axial movement and breaking along the pipe. It could be used as a coupling. PN-16 operating pressure. GGG-50 nodular cast iron. 250n EPOXY coating on average. Equipped with GEOMET coated bolts, nuts and washers, and EPDM rubber seals. Grip rings made of steel.

The UR-80 dismantling joint is an essential component designed to facilitate the maintenance and replacement of pipeline sections. Its robust construction ensures durability and reliability, making it ideal for use in a variety of demanding industrial applications. The UR-80 is engineered to provide a flexible and adjustable connection between pipeline sections, allowing for easy disassembly and reassembly without compromising the integrity of the system. It is particularly useful in environments where frequent maintenance or replacement of pipe sections is required. The joint's design allows for minimal downtime and ensures a secure and leak-proof connection, critical in maintaining system efficiency and performance. Suitable for a range of pipe diameters, the UR-80 dismantling joint is a versatile solution that meets the technical requirements of modern industrial piping systems.

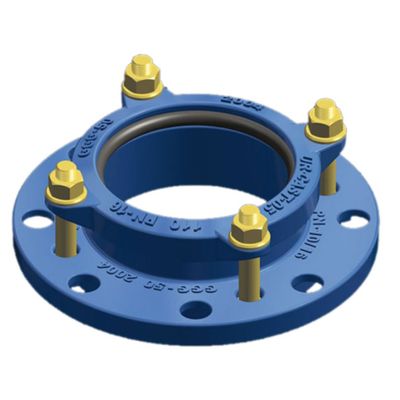

Wide range of diameters covering pipes from 40 to 315 millimeters. Maximum bolt adjustment mechanism to achieve leak tightness. PN-10 and PN-16 operating pressure. GGG-50 nodular cast iron. 250n EPOXY average coating. Equipped with stainless steel bolts and washers, and EPDM rubber seals.
