Utest products

ASTM D420, D1452; AASHTO T86, T202; CNR a. VI n.25. Used in conjunction with sampling tubes to obtain disturbed or undisturbed soil samples. The flute bits with 80-100-150-200 mm diameters should be ordered separately.

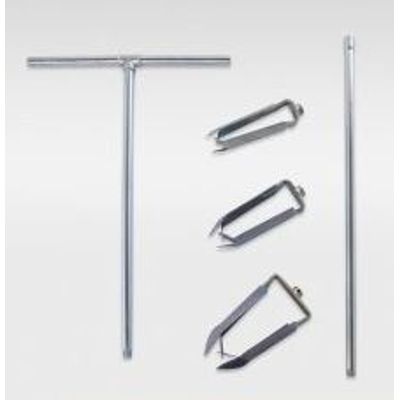

UTS-0024 Hand Boring and Sampling Set for augering down to a depth of 5 meters. The UTS-0024 Hand Operated Auger Boring Set consists of a T-Handle with 1 m Rod, 1 m Extension Rod, 80 mm, 100 mm and 150 mm diameter Auger Heads.

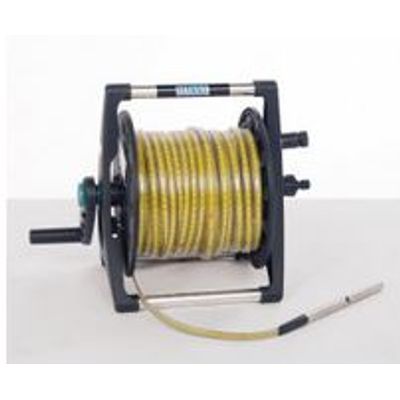

The Water Level Indicators (Electric Contact Meters) are portable, easy-to-use and reliable instruments for measuring water level and total depth in bore holes, wells, observation pipes, reservoirs, as well as control of pumping tests. As soon as the measuring probe electrode touches the water surface, the signal indicator on the instrument lights up with an audible alarm. The water level can be read on the measuring tape in meters (m) and centimeters (cm).

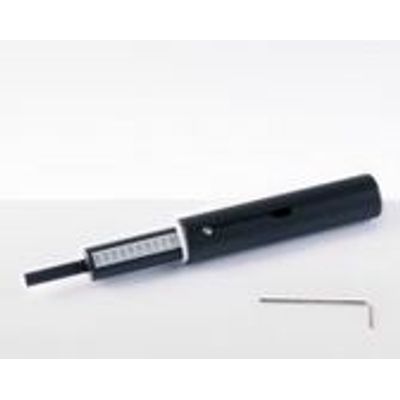

The UTS Series of Pocket Dial Penetrometers are ideal instruments to determine the penetration resistance of cohesive soil, especially when various range measurements are required.

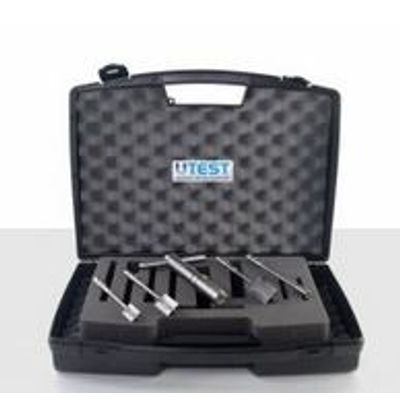

The UTS-0080 Field Inspection Testing Kit is ideal for geotechnicians, geologists and agronomists. It consists of the UTS-0084 Pocket Penetrometer and of the UTS-0082 Field Inspection Pocket Vane Tester. The instrument is contained in a practical carrying case.

UTA-0320 Large Capacity Sample Splitter is used for splitting aggregate samples. Slot widths are adjustable from 12,5 mm to 100 mm and the splitter is equipped with 25 channels with a 20 lt. hopper capacity.

EN 932-2; ASTM C702; BS 812:1, 1377:1, 1924:1. Riffle boxes are used for dividing aggregates into 2 equal homogenous quantity for testing. The Riffle Box is electrostatically painted and manufactured to meet the relevant International standard both in the slot width and number of slots.

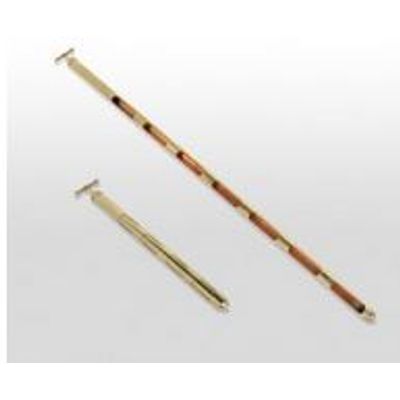

The UTCM-0001 Packaged Cement Tube Sampler is made of stainless chrome and used for collecting cement samples from packages. The UTCM-0002 Bulk Cement Sampler is made of chrome and used for collecting cement samples from bulk storage or bulk shipments. UTCM-0002 Sampler consists of 2 concentric tubes and each tube has slots. The inner tube rotates to close the slots and take the sample.

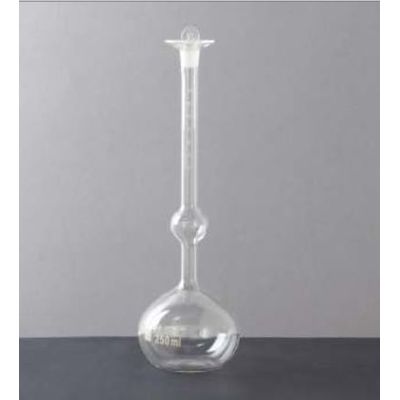

The UTCM-0003 Le Chatelier Flask is used to determine the density of hydraulic cement, ground granulated blast-furnace slag and fly ash for concrete, filler aggregates and lime.The glass flask has a 250ml capacity. The neck is graduated from 0 to 1 ml and from 18 to 24 mL in 0.1-mL graduations.

Ultrasonic Pulse Velocity Tester is used to measure the velocity of propagation of ultrasonic pulses through concrete. A pulse of longitudinal vibrations is produced by an electro-acoustical transducer held in contact with one surface of the concrete under test. After traversing a known path length in the concrete, the pulse of vibrations is converted into an electrical signal by a second transducer and electronic timing circuits enable the transit time of the pulse to be measured.
