UV Resources, LLC, formely known as Steril-Aire, Inc. products
UV Resources - Model RLM Xtreme - Fixtureless UV-C Lamp System for HVAC
The RLM Xtreme fixtureless UVC lamp system by UV Resources delivers high ultraviolet energy, designed for high-volume and demanding HVAC environments to eradicate mold, bacteria, and viruses. It provides an effective solution for both new installations and retrofits, featuring a flexible and affordable design configurable to fit most plenums. The system includes components such as a power supply, housing, plenum-rated wiring loom, lamp plug, protector, encapsulated lamp, and LampHolster. The UV-C lamp generates high-output ultraviolet irradiation to disinfect HVAC coils, with a power supply capable of prolonged operation even in extreme temperatures, and offering at least 9000 hours of lamp lifespan with minimal output loss. Designed with safety in mind, it features interlocking mechanisms to disable UV emissions during maintenance access.
UV Resources - Model RLM [X] - UV-C Perfect for Large Custom Units
The RLM [X] is designed for quick, easy installation of very high output UVC lamps in air handling units (AHUs) of virtually any size and offers no less than 85% of original output, depending on conditions. The RLM [X]’s infinite configuration capability provides for flexibility to accommodate multiple rows of Lamps with up to 6 pre-wired, factory-mounted power supplies per electrical housing.

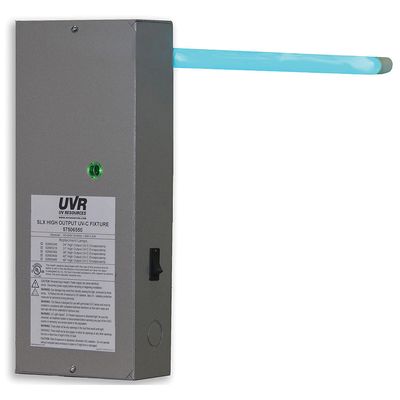

UV Resources - SLX High Output UVC Fixture for Air Disinfection in HVACR Systems
The SLX High Output UVC Fixture provides comprehensive 360-degree high-intensity UVC energy, designed to be mounted on most HVAC system components such as supply, return, or exhaust plenums or ducts. Utilizing UVC energy at 254nm, the fixture is effective for disinfecting airstreams, thereby improving HVAC efficiency and reducing maintenance costs. It comes pre-assembled and factory-tested, featuring a powder-coated galvanized steel housing capable of withstanding HVAC/R environments, and a waterproof power supply. The fixture uses high-output, single-ended UVC lamps encapsulated with FEP for durability. These lamps deliver consistent output across a range of airflow velocities and temperatures, with a minimum useful life of 9,000 hours. The power supply supports a rapid start, includes circuit protection, and operates within a temperature range of 1-70°C. Independent testing confirms compliance with Underwriters Laboratories safety standards.

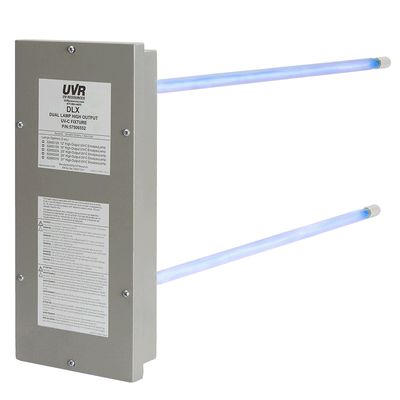

UV Resources - Model DLX-N - Dual Lamp High Output UVC Fixture for HVAC Disinfection
The DLX-N Dual Lamp High Output UVC Fixture is designed specifically for UV-C disinfection in HVAC/R systems such as cooling coils, drain pans, return/supply ducts, and rooftop units. This fixture features a NEMA-4 rated enclosure, making it suitable for both indoor and outdoor installations, and it can be accessed and serviced from the exterior of installation sites. It comes with dual high-output UV-C lamps that provide a 360-degree disinfection radius, effectively inactivating pathogens like SARS-CoV-2 in various airstreams. The unit's construction includes heavy-gauge galvanized steel housing with a powder-coated finish and is equipped with a waterproof power supply operating at temperatures of 1–70°C (33-158°F). The fixture uses non-proprietary, high-output UV-C lamps that emit broadband UV-C wavelengths between 250-260 nm, ensuring robust microbial inactivation. Each lamp is coated with EncapsuLamp for added protection and a minimum useful life of 9,000 hours. UL listing for safety requirements is pending, and the fixture also contributes to improved HVAC efficiency and reduced energy use by maintaining clean coils and optimal heat transfer.
UV Resources - Model UVK [X] - Small - Medium - HVAC Ptac’s HVAC - Fan Coils & Ventilators
The UVK [X] for air handlers includes proven technology designed for indoor air handlers (coils up to 84”), fan coil units and unit ventilator systems. Fan coil systems are ideal for multi-room buildings found in residential, commercial and industrial applications. Unit ventilator systems are found mainly in classrooms, hotels, apartments and condominiums. Configurations include horizontal or vertical; floor, wall, ceiling, or suspended; surface, semi-recessed, recessed, or concealed; vertical stack concealed units.
UV Resources - Model X-Plus - Exterior Mount NEMA-Rated UV-C Fixture for HVAC Systems
The X-Plus is an exterior-mounted, NEMA-rated UV-C fixture designed for difficult-to-access HVAC systems, both outdoor and indoor, handling up to 30 tons of capacity. This versatile fixture requires no interior unit access as it mounts externally, making it suitable for new installations or retrofits. It is praised for its ruggedness, economic value, and minimal maintenance requirements. The assembly consists of a NEMA 4X housing, rubber gasket, locking eyelets, and an auto-matching power supply with built-in safety features, including a micro-interlock switch and power disconnect. The UV-C lamps, utilizing T5 hot cathode technology, produce broadband UV-C light between 250-260 nm and function across a wide range of temperatures and air velocities. Suitable for healthcare, commercial, and educational sectors, the X-Plus fixture ensures a leak-free installation with its rubber-based gaskets and LampClamp technology. It caters to applications in HVAC efficiency and coil maintenance, supporting stationary air handlers, rooftop units, and fan coil units.
UV Resources - Model DE [X] - Medium – Large - HVAC AHUS - Custom Packages
The very-high output (VO) Double Ended (DE) ultraviolet fixture is designed for use in new or existing air handlers and delivers up to twenty-percent more ultraviolet energy at HVAC temperatures, effectively inactivating and/or degrading even the most resilient microorganisms and organic matter. Perfect for commercial, industrial, healthcare and institutional building air handlers to maintain and/or improve HVAC efficiency or disinfecting airstreams.
UV Resources - Model GLO - Upper Air UV Fixtures for Room Air Disinfection
The GLO Series Upper-Room Germicidal Fixtures by UV Resources are designed to disinfect room air effectively and quickly without the use of chemicals. These fixtures provide the highest amount of UV-C energy within the industry, effectively inactivating airborne viruses and bacteria. Available in both louvered and open-style formats, they can cover spaces from 150 to 1,500 square feet, making them ideal for settings that demand high levels of infection control such as healthcare facilities, waiting rooms, and institutional environments. The fixtures operate 24/7 and are independently tested to meet standards like IESNA LM-9-2009 and UL 2998. Constructed with durable heavy-gauge aluminum, they feature high-efficiency electronic power supplies and high-output T5 UV-C lamps with a useful life of 9,000 hours. The reflector design maximizes UV energy distribution, ensuring efficient air disinfection across various environments. These fixtures also comply with recommended guidelines by the CDC for airborne infection control in healthcare settings.
UV Resources - Model SL [X] - Small - Medium - HVAC Units & Duct Mounted
Coil Cleaning & Infection Control Applications. The very high output (VO) SL [X] fixture UV-C efficiently and affordably disinfects HVACR airstreams, cooling coils and drain pans to keep them free of infection-causing and efficiency-robbing microorganisms and organic matter (biofilm). The SL [X] fixture’s VO lamp protrudes from the exterior of supply, return or plenums or ducts, where it can best treat the airstream with 360-degrees of high UV-C germicidal output.
