Uzelac - Rotary Drying Systems
Uzelac Industries Inc. Rotary Drying Systems provides factory-assembled dryers that require either minimal installation or onsite assembly for larger systems. The lead engineers on a project are the main customer contact.

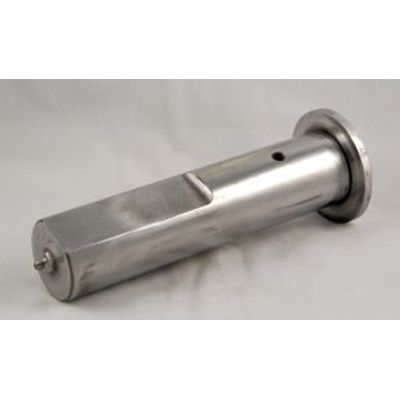

Model TPD-2500 - Idler Shaft
Size: 1.5` dia. X 7` lg. Diameter: 1-1/2`. Material: 1025 tgp. Length: 7`. Weight ea.: n/a. List price: quote.
Model TPD-8000 - Idler Shaft
Box size: 10 x 10 x 6 in. Size: N/A. Diameter: 2-7/16`. Material: 1025 TGP. Length: 13`. Weight EA.: 8 lbs.
Model TPD-12,000/15,000 - Drum Roller Bearing Blocks
Box size: 20 X 12 X 8 In. Center line: 3`. Width: 3`. Bore: 3.25`. Weight EA.: 75 Lbs.
Model TPD-4000/5000 STD - Drum Roller Bearing Blocks
Box size: 10 x 6 x 6 in. Center line: 3-3/8`. Width: 3`. Bore: 3.225`. Weight EA.: 34 lbs.
Drum Roller Shafts
Box size: LTL. Shaft length: 29`. Shaft diameter: 3.970`. Material: AISI 1117 CRS. Weight EA.: 105 lbs.
Model TPD-12000 - Flanged Assembly Drum Rollers
Roller Diameter: 24.5`. Shaft Diameter: 3.970`. Running Face Width: 9-3/8`. Width: 16`. Weight EA.: 1945 Lbs.

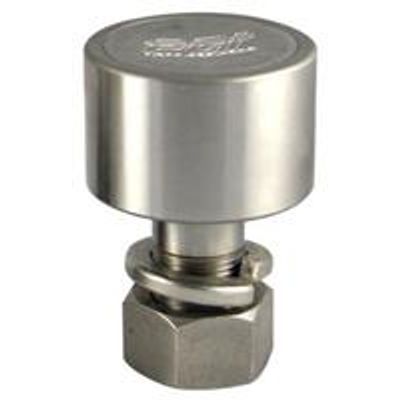

Uzelac - Model PLR-3 - Osborn Thrust Roller
Box Size: 6 x 6 x 6 in. Thread Size: 1-1/4"-12 NF. Diameter: 3". Shaft Length: 1-1/4". Weight Ea.: 6 Lbs.
