VAG GmbH products

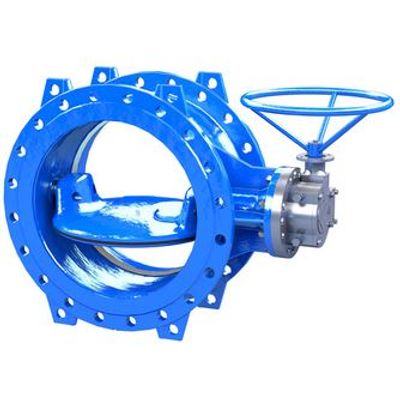

VAG EKN M Butterfly Valve welded steel type epoxy. PN: 6/10/16/25 - DN: 150...4000. Productgroup: Butterfly Valves. Medium: Water.

Energy-efficient, double-offset flanged butterfly valve (resilient-seated) suitable for the highest requirements, equipped with a patented hydro-dynamic disk, enlarged inner diameter and patented pressure compensation channels. Long service life, as the medium does not come into contact with the bearing, and due to the wear-resistant, corrosion- and infiltration-proof seat with weld overlay. Suitable for use in water distribution, water treatment, in pretreated waste water, dams, in power plants, industry and in pressure management.

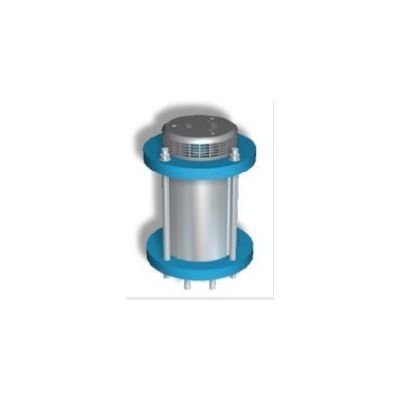

The Operation Of A Kinetic Air Release Valve Is Such That Fast Approaching Water Is Almost Instantaneously Halted By The Valve"s Closure Without The Shock Cushioning Benefit Of Any Retained Air In The Pipeline. Consequently A Transient Pressure Rise Or Shock Of Potentially Damaging Proportions Can Be Generated In A Pipeline System, Even At Normal Filling Rates.

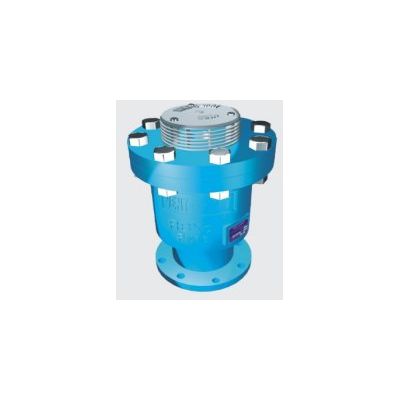

Vent-O-Mat Series RBXC Has Evolved From RBX Range Of Valves The Basis Of The Rbxc Is That It Contains All The Elements Of The Vent-O-Mat RBX Design In A Cast Ductile Iron Body For Markets Which Prefer This Format To The Standard Fabricated Designit Is As Per The RBX Designed  In The Understanding Of The Physical Laws That Govern Air Valve And Pipeline Operation. Reaction To Pipeline Dynamics Is Therefore Instantaneous And Protection Provided Is Relevant To The Pipeline’s Needs.

Resilient-seated gate valve with bolted cover connection and socket connection on both sides for boltless connection to the VAG BAIO^®plus System. Proven design with innovative improvements, such as plastic sliding caps on the wedge, guarantee low operating torques even after many years of use. Suitable for water distribution applications.

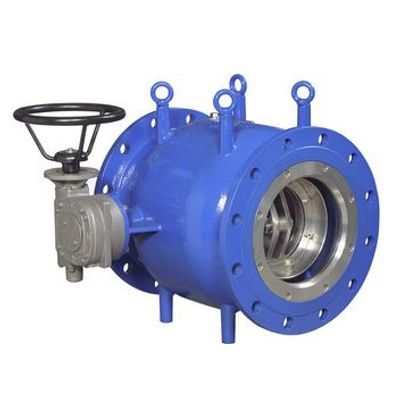

Externally controlled control valve with annular flow cross-section for the continuous regulation of high pressure differences and flow rates. Long service life as the bearings do not come into contact with the medium. Wear-resistant, corrosion- and infiltration-proof guide rails due to hard-facing. This ensures low operating forces and prevents jamming of the piston. Suitable for use in water treatment, water distribution, in dams, power plants, industry and in pressure management.

Standpost hydrant with automatic, optimised double draining system and pressurised-water protection. The maintenance-free encapsulated stem bearing ensures long-term low operating forces and a completely encapsulated actuating system as regards hygiene; maximum corrosion protection through the use of stainless materials. Safety interlock and easy installation thanks to a multifunctional sealing ring and the free alignment of the hydrant head. Especially suitable for use in municipal fire-water supply systems. Also suitable for water distribution applications, in power plants and in industry.

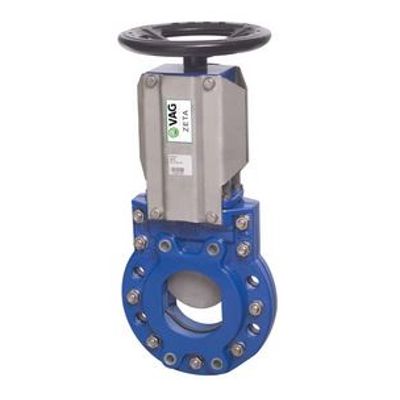

Resilient-seated knife-gate valve in fully flanged design, sealing in both flow directions, with integrated scraper system and free flow passage. Operation via handwheel. The enlarged bottom seal and the metallic limit stop of the knife in the body ensure perfect tightness. Suitable for use as shut-off valve in waste-water applications, in dams, in power plants and in industry.

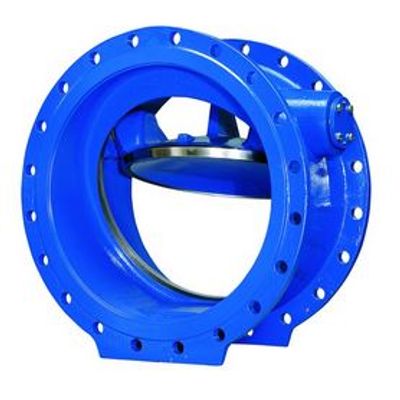

Metallic-sealing non-return valve with slanted seat for reducing the closing time and with specially shaped disk that supports the opening movement. Also available with internal damping unit for the reduction of pressure surges. The prerequisite for trouble-free operation is a minimum flow velocity of 1.5 m/s in the customer`s plant. Suitable for use in water treatment applications, water distribution, in pretreated sewage, in power plants and in industry.
