Valvospain Division Internacional S.L.U. products
Valves - Gate, Globe and Check Valves

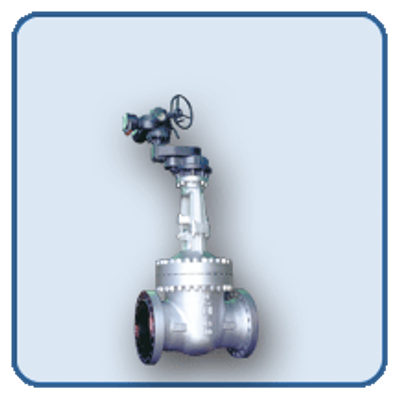

Valvospain - Bolted Bonnet Gate, Globe and Check Valves
Characteristics: Contruction: Bolted Bonnet. Gate: ASME B16.34, API 600. OS&Y, Rising Stem. Flexible Wedge or Parallel Slide. Globe: BS1873, ASME B16.34. Rising handwheel . Body in “T” or “Y” shape. Option: Globe, Stop-Check. Check:. BS1868, ASME B16.34. Swing Check or Piston Check. Optional outside lever and counter-weight. Ends: Flanged (RF,FF,RTJ) or Butt Weld (BW). Operation: Manual (handwheel or gearbox). Actuated (Electric, pneumatic or hydraulic).
Valvospain - Pressure Seal Gate, Globe & Check Valves
Contruction: Pressure Seal Bonnet. Gate: ASME B16.34, API 600. OS&Y, Rising Stem. Flexible Wedge or Parallel Slide. Globe: BS1873, ASME B16.34. Rising handwheel . Body in “T” or “Y” shape. Option: Globe, Stop-Check. Check:. BS1868, ASME B16.34. Swing Check, Piston Check, Titling Disc. Optional outside lever and counter-weight. Ends: Flanged (RF,FF,RTJ) or Butt Weld (BW). Operation: Manual (handwheel or gearbox). Actuated (Electric, pneumatic or hydraulic).
Valvospain - API 6D Through Conduit Gate Valves and API 6D Full Bore Swing Check Valves
Construction: Bolted Bonnet. Gate: Slab Gate or Expanding Gte. Swing Check: Full Bore. Optional outside lever and counter-weight. Optional Hydraulic Damper. Ends: Flanged (RF,FF,RTJ) or Butt Weld (BW). Operación: Manual (handwheel or gearbox). Actuated (Electric, pneumatic or hydraulic).
Valves - Quarter Turn valves: Ball, Plug and Butterfly
Valvospain - Floating Ball Valves
Construction: One piece Body end Entry (Reduces Bore), One piece Body Top Entry, Two (2) bolted bodies Side Entry, Three (3) bodies Side Entry. Floating Ball. Soft Seats / Metal-to-Metal seats. Full Bore / Reduced Bore. Ends: Flanged (RF,FF,RTJ) or Butt Weld (BW). Operación: Manual (Lever o gearbox), Actuated (Electric, pneumatic or hydraulic).
Valvospain - Trunnion Ball Valves
Construction: One piece Body End Entry (Reduces Bore), One piece Body Top Entry, Two (2) bolted bodies Side Entry, Three (3) bodies Side Entry. Trunnion Mounted Ball. Soft Seats / Metal-to-Metal seats. Full Bore / Reduced Bore. Ends: Flanged (RF, FF, RTJ) or Butt Weld (BW). Operación: Manual (Lever o gearbox), Actuated (Electric, pneumatic o hydraulic), Special applications: with internal Inconel overlay (at wetted areas) for Sour Service.
Valvospain - Cryogenic Ball Valves
Construction: One piece Body end Entry (Floating Ball, reduces, Bore). One piece Body Top Entry. Two (2) bolted bodies Side Entry. Three (3) bodies Side Entry. Extended Bolted Bonnet. Floating Ball / Trunnion Mounted Ball. Soft Seats / Metalto-Metal seats. Full Bore / Reduced Bore. Ends: Flanged (RF, FF, RTJ) or Butt Weld (BW). Operación: Manual (Lever o gearbox). Actuated (Electric, pneumatic o hydraulic).
Valvospain - Non Lubricated Plug Valves (Self Lubricated)
Construction: Top Entry, PTFE Sleeve. Bore: Reduced & Regular. Ends: Flanged (RF, FF, RTJ) or Butt Weld (BW). Operation: Manual (handwheel or gearbox). Actuated (Electric, pneumatic or hydraulic).

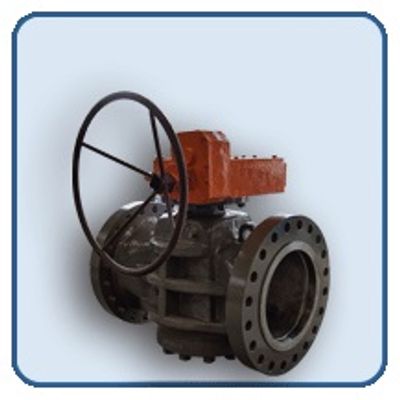

Valvospain - Lubricated Plug Valves
Construction: Inverter balanced plug. Metal to Metal Seat. Bore: Reduced, Regular, Total and Cylindrical total. Ends: Flanged (RF, FF, RTJ) or Butt Weld (BW). Operation: Manual (hand wheel or gearbox). Actuated (Electric, pneumatic or hydraulic).
Valves - Other Valvels
Valvospain - Bellow Seal Valves
Construction: Gate, Globe. Bellow Seal. Ends: Flanged (RF, FF, RTJ) or Butt Weld (BW). Operación: Manual (hadweel or gearbox). Actuated (Electric, pneumatic or hydraulic).
Valvospain - Dual Plate Wafer Type Check Valves
Construction: Metal to Metal seat or Soft Seal. Internal Pin or External Pin. Ends: Flanged (RF,FF,RTJ) or Butt Weld (BW). Flanged, Wafer, Lug. Special Applications: Cryogenic.
