Valvulas VS products

DIN Valves

Valvulas - Model Fig. VS 101 | PN-40 - Straight Type Globe Valve

Bolted yoke bonnet. Rising stem and handwheel. Stainless steel or PTFE sealings. Drilled and dimensioned flanged, according to DIN PN-40. Distance between sides according to DIN 3202 F-1. Sizes from 15 to 200 mm.

Valvulas - Model Fig. VS 101 | PN-16 - Straight Globe Valve

Bolted yoke bonnet. Rising stem and handwheel. Stainless steel or PTFE sealings. Drilled and dimensioned flanged, according to DIN PN-16. Distance between sides according to DIN 3202 F-l. Sizes from 15 to 250 mm.

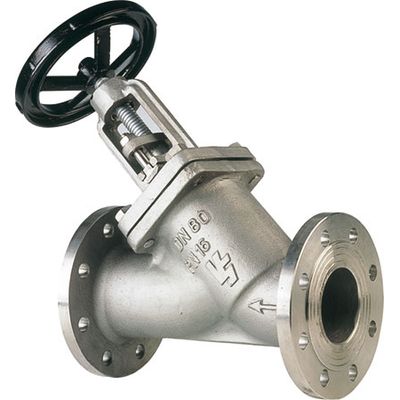

Valvulas - Model Fig. VS 102 | PN-16/40 - Y-Pattern Globe Valve

Bolted yoke bonnet. Rising stem and handwheel. Stainless steel or PTFE sealings. Drilled and dimensioned flanged, according to DIN PN-16 or PN-40. Distance between sides according to DIN 3202 F-1. Sizes from 15 to 350 mm PN-16 and 15 to 150 mm PN-40

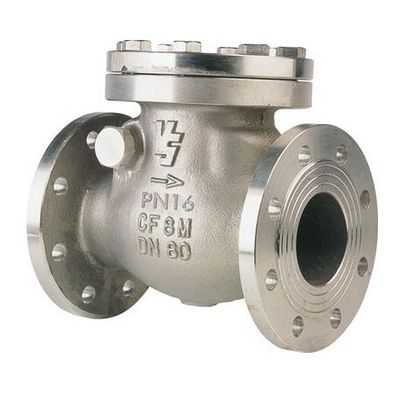

Valvulas - Model Fig. VS 121 | PN-16/40 - Lift Check Valve

For horizontal position. With the help of spring, loaded a more watertight and quicker sealing can be obtained. Drilled and dimensioned flanged according to DIN PN-16 or PN-40. Distance between sides according to DIN 3202 F-1. Sizes from15 to 250 mm PN-16 and 15 to 200 mm PN-40.

Valvulas - Model Fig. VS 122 | PN-16/40 - Y-Pattern Lift Check Valve

It can be used horizontally or vertically. With the help of a spring, loaded a more watertight and quicker sealing can be obtained. Drilled and dimensioned flanged according to DIN PN-16 or PN-40. Distance between sides according to DIN 3202 F-1. Sizes from 15 to 300 mm PN-16 and 15 to 150 mm PN-40

Valvulas - Model Fig. VS 104 | PN-16 - Angle Seat Pattern Globe Valve

Body: inox CF8M. Disc: inox CF8M. Stem: INOX 316. Glandpacking: Graphite-PTFE. Gland: inox CF8M. Bonnet: inox CF8M. Nut: bronze. Handwheel: cast iron 6625

Valvulas - Model Fig. VS 123 PN-16 - Disc Check Valve

Valvulas - Model F-4 Fig. VS 103 F-4 | PN-10/16 - Disc Check Valve: To horizontal or vertical assemblingl.

ANSI Valves

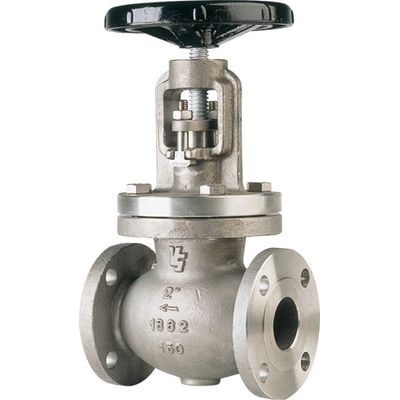

Valvulas - Model FIG. VS 131 | 150 Lbs - Globe Valve

Bolted yoke bonnet. Outside rising stem. Rising handweel. Integral seats. Stopper round or conic. Face to face in accordance with ANSI B.16.5. Flanged dimensions in accordance with ANSI B.16.5.

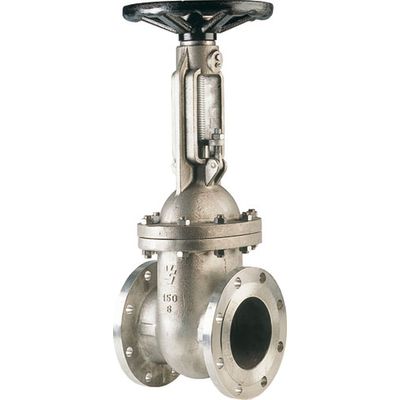

Valvulas - Model Fig. VS 132 | 150 Lbs - Gate Valve

Direct access. Bolted yoke bonnet. Outside rising stem. Non rising handwheel. Wedge of double disk or solid. Drilled and dimensioned flanged according ASA B-16.5. Distance between sides, according ASA B-16.10. Sizes from 2" to 10".

Valvulas - Model F-4 Fig. VS 103 F-4 | PN-10/16 - Gate Valve

Direct acces. Bolted yoke bonnet. Outside rising stem. Non rising handwheel. Solid wedge. Drilled and dimensioned flanged according t o DIN PN-10 or PN-16. Distance between sides according to DIN 3202 F-4. Sizes from 40 to 250 mm PN-16 and 300 to 400 mm PN-10.
