Van Air Systems products

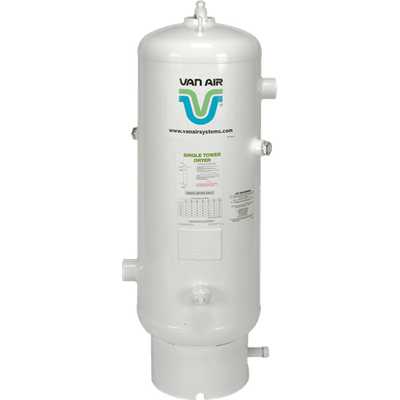

Van Air Systems D-Series Compressed Air Dryers are single tower deliquescent compressed air dryers for stationary applications. D-Series Dryers remove harmful water vapor from compressed air lines. Wet compressed air enters the bottom of the dryer and flows upward through a bed of deliquescent desiccant, which absorbs moisture as it slowly dissolves. Condensate drops to the bottom of the vessel to be drained. Dry compressed air exits the top of the vessel. When used with Dry-O-Lite desiccant, the D-Series Compressed Air Dryer automatically provides a dew point that is approximately 20°F lower than temperature of the air at the vessel inlet. For example, if the air inlet temperature is 80°F, the D-series Dryer delivers a 60°F dew point. If the air inlet temperature is 50°F, the dryer delivers a 32°F dew point.

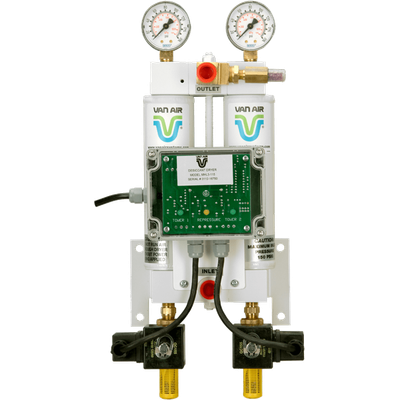

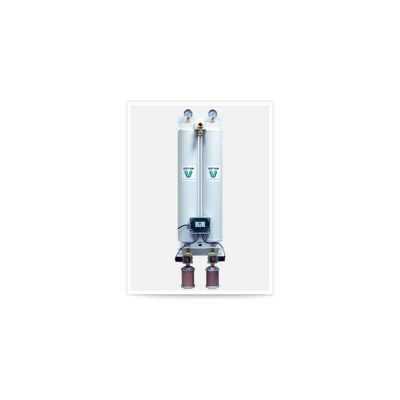

MHL-3 through MHL-50 are compact, simple to install, and easy to maintain. These dryers deliver a -40°F pressure dew point to protect pneumatic equipment and processes from the harmful and costly effects of moisture. When treating small volumes of compressed air, an MHL series heatless regenerative desiccant compressed air dryer can deliver dew points down to -100°F in critical applications. Clean and dry compressed air keeps the most vital pneumatic equipment and processes operating smoothly and efficiently.

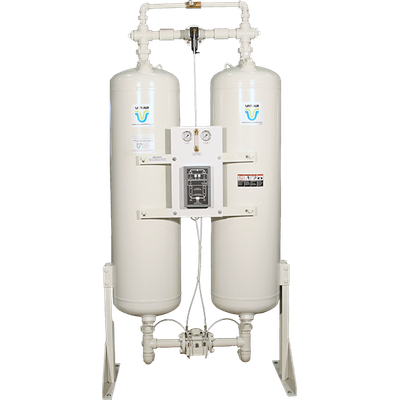

Engineered for long service life and superior protection of your air-operated equipment and processes, Van Air Systems HL series heatless regenerative desiccant compressed air dryers deliver the peace of mind of high quality, value and fast delivery. All HL series compressed air dryers include patented Interlock Logic valve sequencing to protect compressed air systems from premature loss of flow or pressure. Interlock Logic guarantees that each phase of the drying cycle is completed before the next can begin. This ensures uninterrupted air flow at constant pressure for downstream equipment and prevents accidental vessel re-pressurization, a vital safety feature.

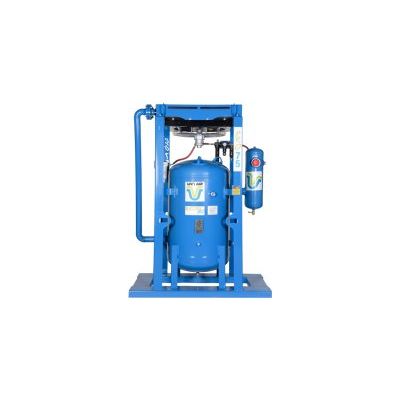

The Blast Pak PRO is a single tower deliquescent compressed air drying package with conveniently integrated peripherals that are pre-assembled and welded to a forklift skid, allowing maximum portability for mobile drying applications. These systems can be easily lifted on the back of a truck or trailer and moved about within a plant or worksite. The Blast Pak PRO is an ideal solution for mobile blasting contractors. Wet compressed air clogs blasting pots and compromises the quality of the blasted substrate by putting moisture back on the surface. This moisture then flashes to rust, necessitating costly re-work.

When treating small volumes of compressed air, an MHL series heatless regenerative desiccant compressed air dryer delivers dew points down to -100°F. Clean and dry compressed air keeps the most vital pneumatic equipment and processes operating smoothly and efficiently.

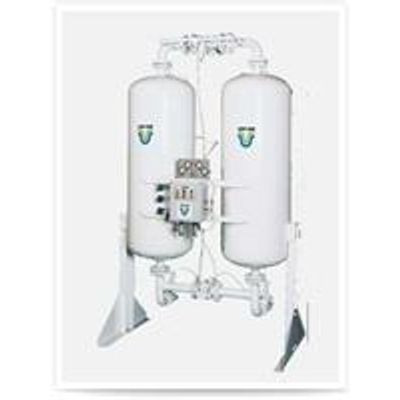

Engineered for long service life and superior protection of your air-operated equipment and processes, Van Air Systems HL series heatless regenerative desiccant compressed air dryers deliver the peace of mind of high quality, value and fast delivery.

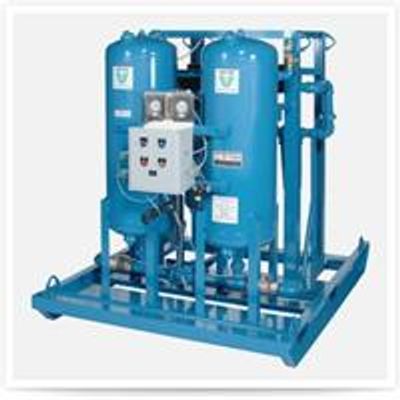

 When mobility and portability are essential, turn to the Van Air Systems Prep 40. The Prep 40 series delivers clean, dry and cool compressed air in one integrated forklift skid package. The package includes an aftercooler, moisture separator, pre- and after-filters, and an HL series heatless dryer.

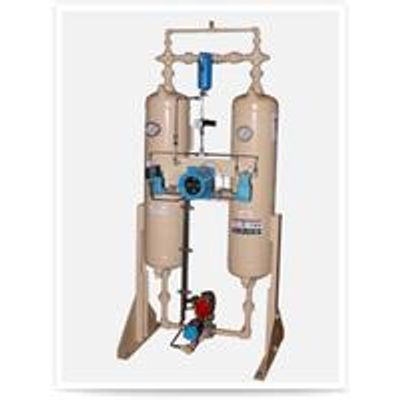

  Van Air Systems HLSXA regenerative desiccant compressed air dryers deliver extremely dry compressed air in the harshest and most challenging operating environments, where safety and performance are of central importance. HLSXA dryers are explosion proof and have been designed to operate in areas classified as hazardous, Class 1 Division 1, Groups C & D, per the National Electric Code.

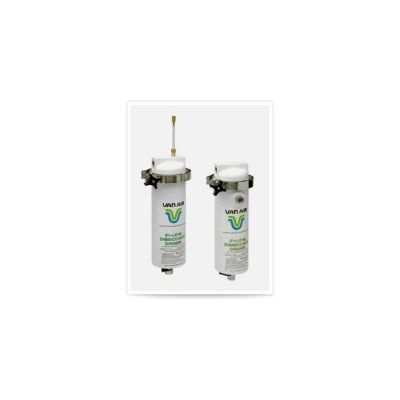

Van Air Systems In-line Desiccant Dryers supply a -40°F pressure dew point and are ideal for pneumatic equipment or instruments that require small volumes of extremely dry compressed air or gas. Van Air offers two types of desiccant cartridges. Model ID15/SW uses a disposable silica gel cartridge. The beads are impregnated with a moisture indicator. A sight window on the body of the dryer is present to view the condition of the silica gel, which turns from blue to pink when saturated with moisture, signaling that it`s time to replace the cartridge.
