Vanton Pumps (Europe) Ltd. products

CGV vortex pumps handle solids-laden liquids and slurries; All Vanton CHEM-GARD pumps are available with recessed, dynamically balanced impellers, custom sizes and trimmed to suit the shapes, dimensions and physical properties of included solids. CGV pumps are rated for flows to 205 m3/hr (900 gpm) at heads to 73 metres (240 ft), with performance for individual applications dependent on the characteristics of the fluid handled. They can be furnished in the full line of thermoplastics and are designed for clog-free pumping of fluids with soft, hard or stringy materials – even with solids to 75mm (3 inches) in diameter.

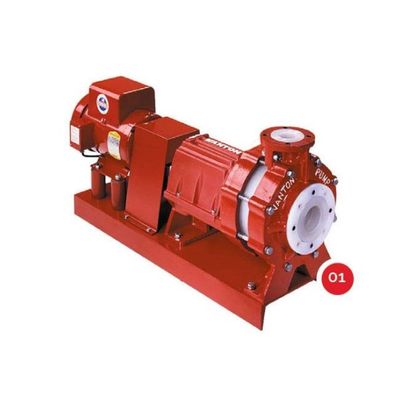

This heavy-duty, self-priming, centrifugal pump handles flows to 40m3/hr (175 gpm), making it ideal for acid buggies, sump and tank evacuation, and emergency overload pumping. It is often specified for in-line pump service where headroom prevents the use of vertical pumps, and other applications where self-priming from depths to 4.6 metres (15 ft), may be required.  These pumps are available in the full line of homogeneous thermoplastics, and the pedestals are inter-changeable with all standard  CHEM-GARD models.

FLEX-I-LINER pumps are available close-coupled to an electric motor, or pedestal-mounted with an electric motor drive or gasoline engine, as well as air powered when required for handling volatile fluids. For metering with ± 5 percent accuracy, variable speed motors or belt drives may be used. Models may be hand carried, installed on casters, or wheel-mounted on mobile equipment for portability.

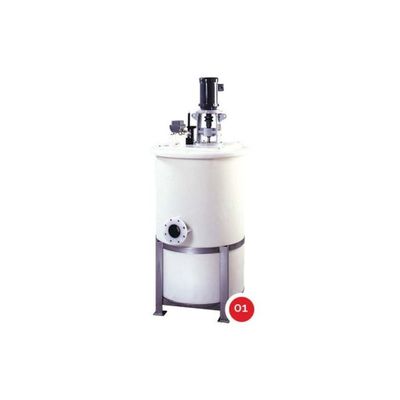

Cylindrical tanks of PP, PE, PVC, PVDF, and other thermoplastics are available in capacities to 9.5m3 (2500 gallons). The system shown is equipped with a stainless steel stand, rising-rod level control, and a vertical SUMP-GARD SG thermoplastic pump. The cover plate is sealed with an EPDM gasket, and the pump is fitted with a FUME-GARD vapour seal to protect external bearings and the motor from corrosion.
