Vapor Technologies Inc. products

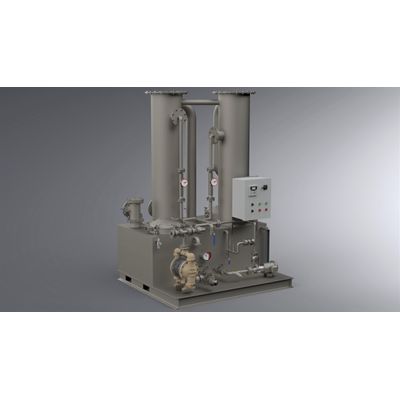

Dual column stainless steel scrubber for vapor flows up to 750 CFM. Unit has twin 20" columns and is skid mounted. This unit comes equipped with a magnetic-drive pump (primary) and an air diaphragm pump (backup). Large 20" clean-out ports make maintenance on the reservoir quick and easy. This unit is available for sale and also available in our rental fleet.

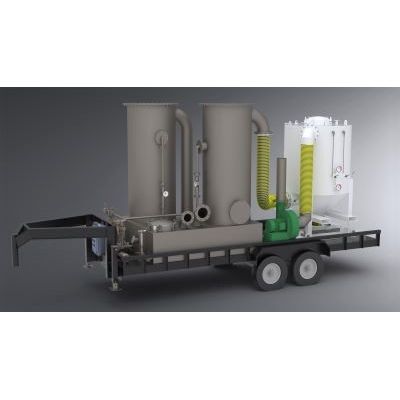

The SST-40 vapor scrubber system is a trailer-mounted system comprised of a dual stainless steel packed-bed liquid scrubber followed by a 2000# carbon polisher and a 1500 CFM blower. Excellent for remote jobs and projects. Applications include tank cleaning, vessel and line cleaning, tank degassing and more. Overall system efficiency as high as 99.999%. Available for sale or rent. Skid mounted versions available.

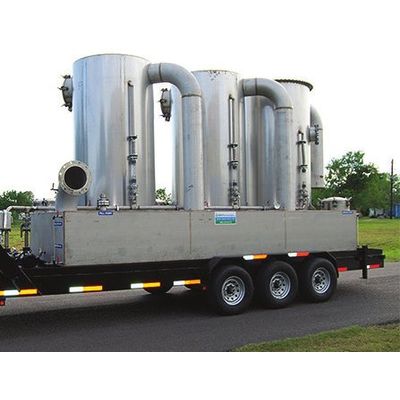

This system is made of stainless steel and mounted to a gooseneck trailer. Vapors are scrubbed through three, 54" diameter towers (8 foot tall each). Unit has on-board pump (460V) which provides flow to all three towers. Third tower has full diameter mist eliminator which removes mist particulate from exiting the scrubber. This scrubber is rated up to 6,000 CFM. Large 1800 gallon reservoir greatly enhances run times which means less down-time changing out solutions. As a separate item, a radial carbon adsorber (R4K Radial) is available to polish vapors up to 99.99%. This unit simply sits behind the scrubber system and may be connected to a blower to help evacuate tanks or process equipment.

Vapor Tech`s Eliminator 450 Vapor Absorber Unit is designed to treat hydrocarbon emissions from vacuum trucks and tanks. Unique 100% stainless steel design requires no utilities and offers up to 98.5% removal of organics such as gasoline in the vapor phase. This system can be placed in a `high work` area and during vacuum operations trucks may hook their pump exhaust to the unit to meet air regulations. These are also effective for use on frac-tanks and other small tanks to handle vapors during product movements (displacement). BIO SCRUB X chemical agent has been used in this scrubber unit and has been shown to yield ultra-high removal efficiencies. This chemical media is economically priced and spent media in most case may be used as fuel due to the high BTU value. Eliminator 450 comes standard with sample ports, check valve and knock-out pot. Available for short or long term rental.

The E550-304S is a `forced induction` vapor scrubber unit. The main shell and internals of this unit are made from 304 stainless steel for corrosion resistance and longevity. These units use the force of the vapors through the unit to come in contact with our specialized stainless distributors which are located inside of the unit. The primary distributor creates a 360 degree pattern for the vapors to radiate out to the main distributor. The main distributor has enormous surface area yet provides almost no back-pressure inside of the unit. It is here where liquid-to-vapor cohesion takes place. This transfer zone yields extremely high removal efficiencies (high as 98%) for compounds such as hydrocarbons.

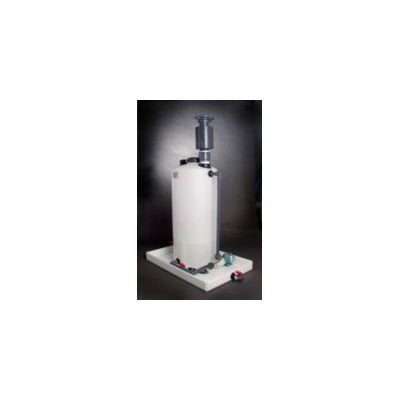

Micro Vapor Scrubber with carbon polishing unit for added removal efficiency. Unit also includes spill containment reservoir. Unit dimensions are 24` x 24` x 42`H. The carbon polisher is easily removed to replace carbon media. This unit is made of 100% corrosion resistant plastic materials for long-term, corrosion resistant performance. Let us build your custom unit today!

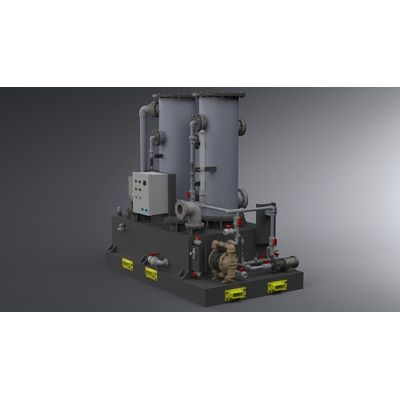

The PPT-24 vapor scrubber system is an all-poly unit designed for applications where steel is not suitable. This includes acids, chlorine and chlorinated vapors or chemicals. This unit is skid mounted and comes with an electric (main) and air-operated diaphragm (backup) pump. Good for vapor flows up to 1250 CFM. The PPT-24 has two towers with a total packing height of over 7`. The unit has a large solution reservoir (450 gallons) which reduces down-time to change spent chemical media. Options such as pH control and blowers are available. Available for purchase or rental.

The PPS-24 vapor scrubber unit is an all-poly packed-column vapor scrubber designed for corrosive applications where steel is not suitable (example: acids, chlorinated products). This unit skid mounted and is designed for flows up to 1250 CFM. Unit has main magnetic-drive re-circulation pump and backup air diaphragm pump. Solution reservoir holds up to 450 gallons. Efficiencies as high as 99.99% possible. Options such as pH Control, blowers, level control, immersion heater and more are available. Contact a sales associate for details.

The PES65-12 model vapor scrubber is excellent for up to 125 CFM vapor throughput. This system is designed primarily for neutralizing acids, ammonia, amines, bases, and other corrosive materials. Units come equipped with sealless magnetic drive electric pumps which provide dependable, long-term use. These units can be equipped with blowers, containment, pH metering, pH control, immersion heaters, and more. In fact, all of our systems are custom manufactured around your specifications. Contact Vapor Tech for more details.
