Vaporless Manufacturing, Inc. products

Guaranteed for 24 months from date of installation to detect a 3 GPH @ 10 PSI leak, Highest Flow Capacity, One-Way Poppet flow path, Reverse Ratio Piston / Poppet combination, pioneered in the 99 LD-2000, Smaller Volume - Faster Response piston size, Shortest profile leak detector available for "tight" installations, All Fuels*: gasoline, diesel, alcohols, Biodiesel, others, All Pipeline Systems (Flexible - fiberglass - steel) up to 250 ml. resiliency, Exceeds EPA regulations, 3 GPH @ 10 PSI, Detects leaks up to 10` above the leak detector, installs with 2" six point socket or pipe wrench,

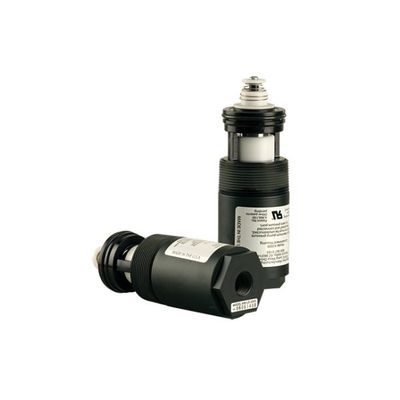

The 99 LD-2000 is the most requested mechanical line leak detector built today. New engineering and the Vmi 2-year warranty (after installation) make the 99 LD-2000 more attractive to station operators today than ever before. Not only is the 99 LD-2000 less expensive to own, it is faster and less subject to field and line variables than ever before!

New Certification Applicable With Any Pipe Configuration: Largest volume / longest line and now Certified for combination of rigid and flexible pipe up to 502 gallons.The 99 LD-3000 is certified for the following pipe: 1171 feet of 3” I.D. rigid pipe, up to 406 gallons; 260 feet of 3” I.D. flexible pipe, up to 96 gallons; 1431 feet combination of rigid and flexible pipe, up to 502 gallons.

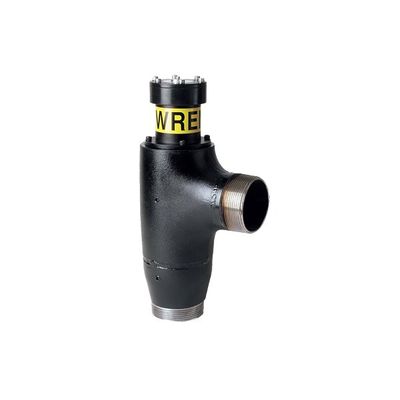

The Model OFP-3 has been enhanced! Now, the OFP-3 series of valves not only have the highest flow rating in their class, the low flow - low pressure characteristics have been modified to accommodate virtually any delivery truck pump! These valves have the following flow ratings.

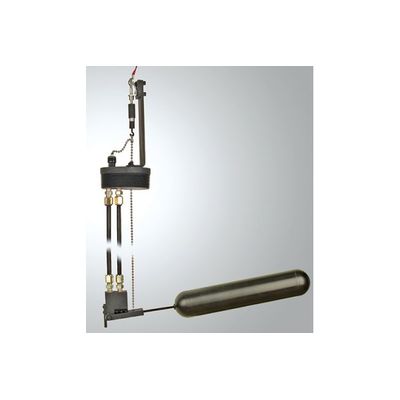

Overfill Protection Valve For above Ground Storage Tanks. Alcohols, Biodiesel and Aviation Fuels. Smaller is better. To prove it, Vmi introduces the OFP-2 series of overfill protection valves. Higher flow rates with less pressure (See Flow Rates). Overall height of main valive is three inches shorter, allowing it to fit in virtually any spill containment pan.

Vmι ARM-4073 Automatic Repressurization Module  eliminates vapor-pocket formation! Dispenser slow flow problems caused by ex­treme thermal contraction, long pipe runs, and flexible pipe are automatically compensated for! The ARM-4073 automatically repressurizes lines, preventing false alarms.

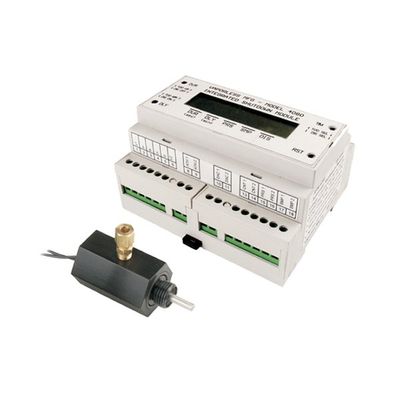

The ISM-4080 and the ISM-4081 Integrated Shutdown Modules are built using the field proven technology of the ARM-4073 Automatic Repressurization Module. Auto-Repressurization technology (patent application), developed by VmI, prevents leak detector false alarms. The ISM-4080 and ISM-4081 integrate Auto-Repressurization with real time pressure monitoring to determine when thermal contraction is occurring and compensation is required.

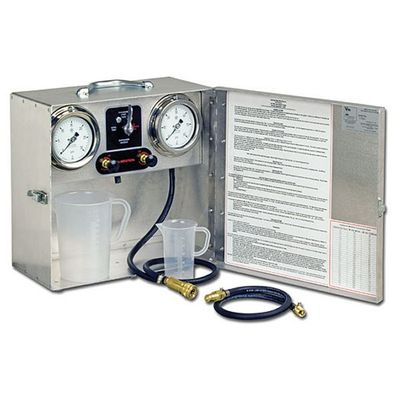

Factory Certifications for Catastrophic Annual Testing and Troubleshooting. LDT-890\AF for Alcohols, Biodiesel and some chemical applications. Ensures regulatory compliance. Saves time, builds profits. Any Pipeline System. Performs 3 GPH @ 10 PSI. Precision or Functional Test. Performs System Diagnostics; trougle shooting. Accurate Viscosity adjusted leak rate.

For a long period of time, it was common industry practice for petroleum technicians to install and leave in place a quick connect in the test port of the dispenser shear valve. this allowed technicians to connect testing devices into the line without the hazard of exposing themselves to a pressurized fueling system, resulting in safer, quicker line and leak detector tests. However,leaving a quick connect permanently installed in the shear valve is dangerous.As history has shown, this can create another deadly unprotected flow path. Following a horrific accident, this practice has been terminated and existing quick connects removed in many locations and discouraged in others. VmI has the solution! Installing the VmI Safety Port between the dispenser filter and filter adapter provides a save location for permanent installation of a quick connect.The Safety Port also allows filter change-outs without a blast of pressurized fuel escaping the filter.
