Vector Technologies Ltd. products

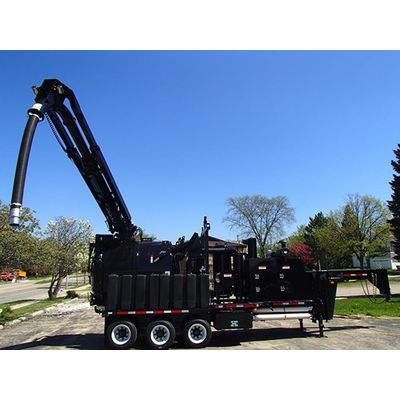

These machines have: 1,200 gallon debris tanks, 2,400 cfm/28” hg blowers, 170 hp John Deere diesel engines, Remote control hydraulic booms, 600 gallon water tanks, High pressure water, Hot water heater. all mounted on a heavy duty trailer!

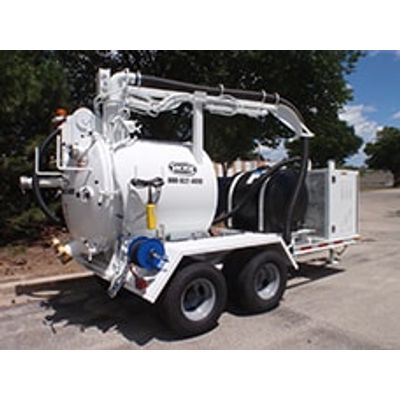

The Neptune™ is available with debris tank capacities up to 800 gallons, up to a 1000 CFM vacuum system, 4GPM @ 4000 PSI water system, plus another independently powered water system rated at 20 GPM @ 2000 PSI with . Essentially a mini-combination machine, this compact unit is available with up to 325 gallons of fresh water storage, optional reverse flow, hydraulically rotating and lifting extendable boom, and a range of tools, including an hydraulic valve exerciser. Premium standard features include a hydraulic opening and locking rear door. The debris tank has a 55 degree dump angle for easy discharge, and the specifically designed trailer offers the stability for jetting operations.

These units offer up to 800 gallons of spoils capacity, up to 1000 CFM vacuum systems and 4GPM @4000 PSI water jet systems with up 325 gallons fresh water storage. With premium standard features such as hydraulic rear door opening and locking, and powerful options such as reverse flow, a hydraulically rotating and lifting extendable boom, and hydraulic valve exerciser, the Mudslinger™ offers the ability to tackle the job at hand without over-complicating the means to do it. They’re easy to operate, easy to maintain and easy on the wallet. Available with gas or diesel power, and as a trailer or skid mount for adapting to flatbed or roll-off (hook lift) truck chassis.

Originally designed for oil field operations, the Mudslinger HD™ is at home digging trenches or recovering drilling mud. With available vacuum power to 28” HG, 4GPM @ 4000 PSI water jet system, 500 gallon fresh water capacity, a fully hydraulic extendable boom and a full 55 degree dump angle, this trailer machine is built for the hard work. Precision electric over hydraulic controls and hydraulic door locks give this machine an edge over the competition, while providing the maneuverability, convenience and affordability of a trailer.

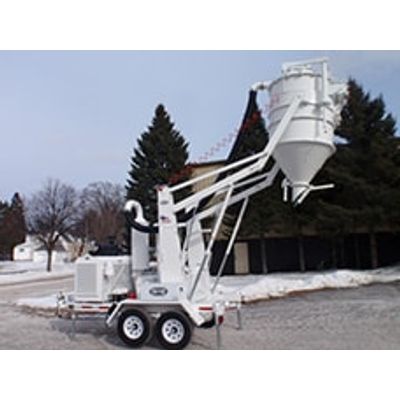

When the job calls for a more economical, compact yet powerful option, the Mini-VecLoader™ also brings superior filtration with a 44” hydraulically lifted baghouse, vacuum systems up to 16” HG and 2000 CFM, and the same dumping capabilities as the larger units. This is high performance in a smaller trailer-mounted package.

HDD Vacuum Excavators are most versatile and powerful line of vacuum excavation equipment ever configured for vacuuming of directional drilling fluid, hydro excavation, utility locating, potholing activities and culvert and sewer cleaning. HDD Vacuum Excavators combine high-pressure water and vacuum capabilities into a compact trailer mounted or skid mounted package for proven performance, exceptional resistance to wear and abrasion, and superior filtration. Vector has developed the best reduction tool available, allowing many hydro excavation jobs to be done with one worker.
