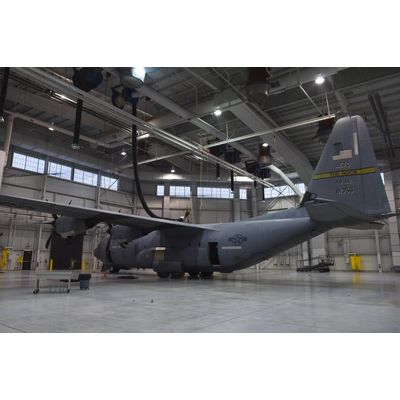

Overhead vehicle exhaust extraction is the most common system type due to the broad range of hose storage configurations and system capacities. Each application, layout, and system requirements are different, and because of that, overhead systems offer the flexibility needed to keep the workspace safe from hazardous exhaust fumes. Whether it’s hose reels, extension booms, or simple hose drops, the capabilities available within Ventaire’s extensive line of overhead exhaust options ensure an exhaust solution for virtually every application.

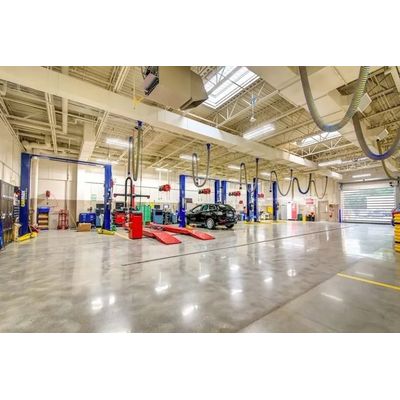

Overhead non-disappearing hose systems are an economical yet very efficient solution for storing hose assemblies overhead in vehicle maintenance facilities. Several different hose storage options are available within the “non-disappearing” flexible hose configuration. Cable reel balancers are the most user-friendly options for retracting flexible hose assemblies out of the work area. In addition to cable reel balancers, Ventaire offers rope or cable pulley systems and telescoping hose assemblies. With multiple storage systems available, Ventaire’s non-disappearing overhead hose storage systems are a suitable option for your vehicle exhaust extraction system requirements.

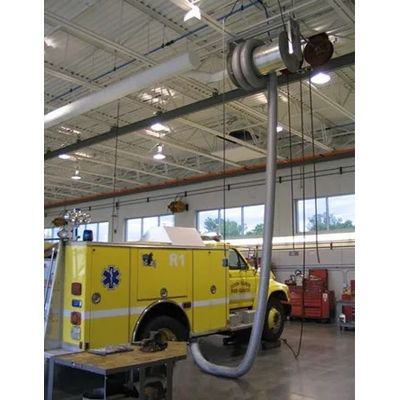

Ventaire automatic spring hose reels, model HRA, use heavy-duty carbon springs to manually extend and retract the hose. When needed, simply pull the hose assembly to the desired location and lock it into place. Once finished, simply pull on the hose to unlock the reel and allow the hose assembly to retract automatically. The HRA spring hose reels can be ducted to a central fan or provided with an individual direct mount exhaust fan. Ventaire spring hose reels ship fully assembled from the factory.

Ventaire motorized hose reels, model TMHR, are the industry’s only internal tubular motor, direct drive hose reels. This patented compact design eliminates the use of chains and gears requiring minimal maintenance and provides superior longevity. The TMHR motorized hose reels can be ducted to a central fan or provided with an individual direct mounted exhaust fan. Factory assembled and wired, Ventaire TMHR motorized hose reels are simple to use and ready for installation.

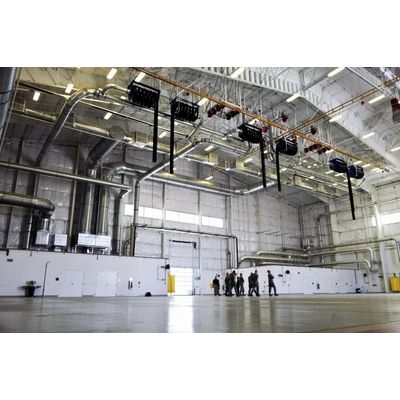

Hose reels are the most common and efficient method for fully storing flexible hose assemblies in vehicle maintenance facilities. Available in spring retracting (Model HRA), and motorized (Model TMHR), Ventaire hose reels are a versatile solution for extracting hazardous exhaust fumes in a variety of applications. Standard sizes range from 3” to 8” diameter, 25’ long hose capacity. Oversized and custom hose reels are available to fit your specific needs.

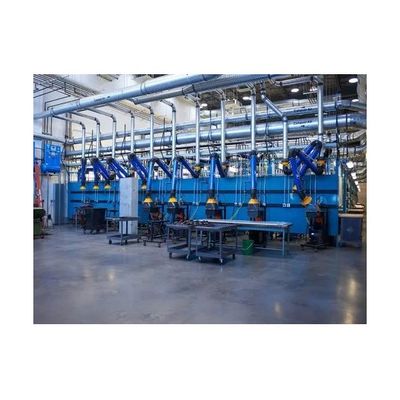

Ventaire’s self-supporting fume arms are the premier solution for extracting welding fumes from the workplace. The SIFA fume arm supports are located outside the airstream allowing for unobstructed airflow through the entire arm and provides minimal pressure drop compared to internally supported fume arms. Articulation of these arms is convenient, simply performed by grabbing the handle located on the inlet hood and positioning it to the ideal location. The SIFA fume arms can be ducted to a central exhaust fan or provided with a direct mount pressure blower. The high-quality construction of Ventaire’s SIFA fume arm provides years of use with minimal maintenance.

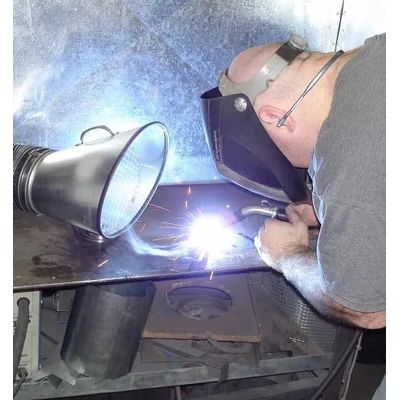

Flexible hose drops with weld hoods are an efficient yet economical option when it comes to capturing and extracting welding fumes in the workplace. The welding hose assemblies are provided with a section of flexible hose and an inlet hood. The weld hoods include a magnetic base for secure positioning near the welding location.

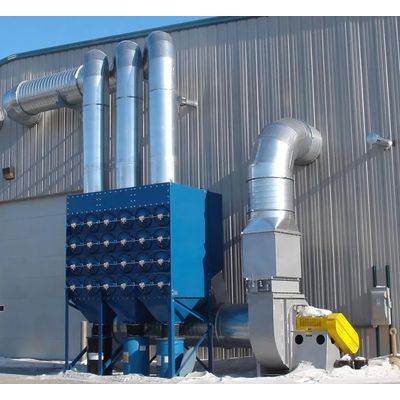

Ventaire’s cartridge dust collectors are one of the most robust and efficient dust collectors in the industry. The DCC series dust collector is the ideal solution to your air quality issues whether it be welding, grinding, powders, blasting, or almost any process that produces fine dust. The Ventaire DCC cartridge dust collectors are equipped with a reverse jet pulse filter cleaning system providing optimum performance and filter life. The high-efficiency filters allow for the clean air to be returned to the space or exhausted to the environment. Available in multiple configurations and with a vast array of options, the Ventaire DCC cartridge dust collector is the perfect solution to your dust issues.

Ventaire cyclone dust collectors are an efficient yet cost-effective option for collecting larger dust particulate in applications such as woodworking, plastic, and metal cutting. The CDC cyclone dust collectors can be incorporated with several different after filter options if further filtration is required for fine dust particles. These units can be configured to recirculate the filtered air back into the space or out into the environment. The simple and rugged design of the Ventaire series CDC cyclone dust collector provides for minimal maintenance for years to come.

Ventaire’s belt drive utility vent set exhaust fans are one of the most extensive in the industry. The UVS vent set fans are common in both small and large source capture exhaust systems. With the multitude of options and constructions, Ventaire’s utility vent set fans are a versatile option for exhausting hazardous fumes from the workspace.
