Vertiflo Pump Company, Inc., products

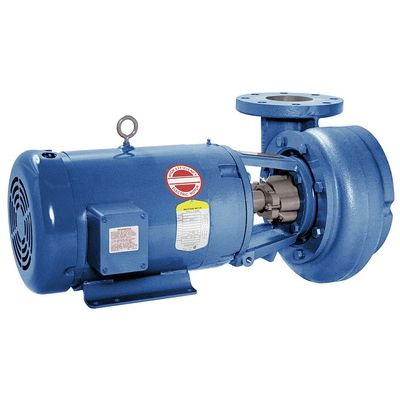

About the SERIES 1300 MODEL 1320, 1326 & 1334 Industrial Horizontal Close-Coupled End Suction Pump. Capacities to 3600 GPM Heads to 275 Feet TDH Temperature to 250° F Back Pull-Out Construction Semi-Open Impeller Packing or Mechanical Seal.

About the SERIES 1312 Industrial Horizontal Close-Coupled End Suction Pump. Capacities to 240 GPM Heads to 160 Feet TDH 1750 and 3500 RPM Back Pull-Out Construction Mechanical Seal Semi-Open Impeller.

The Vertiflo 1400 Horizontal End Suction Pump is designed for process, pollution control, spray systems, deionized water, waste water, corrosive liquids and chemicals. Rugged heavy duty cast iron frame design incorporates integrally cast support and ribbed mounting feet which assure a solid, dependable pump installation and operation. One frame fits all pump sizes. The frame has a back pull-out design feature, which allows for easy inspection or service / maintenance without disturbing the piping to the pump. The pump has external impeller adjustment and the semi-open impeller design accommodates passage of solids or fines.

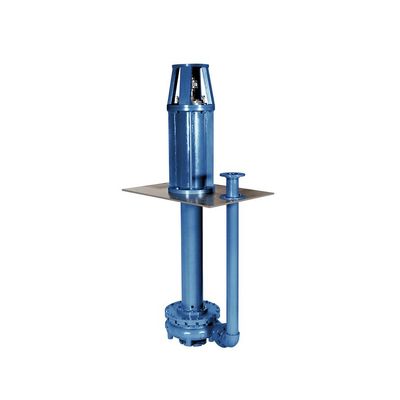

About the SERIES 1100 MODEL 1101, 1102 & 1103 Industrial Vertical Cantilever Vortex Pump. Capacities to 1600 GPM Heads to 170 Feet Temperature to 400° F Pump Length to 6 Feet Semi-open Impeller with External Adjustment Shaft Diameter to 5″.

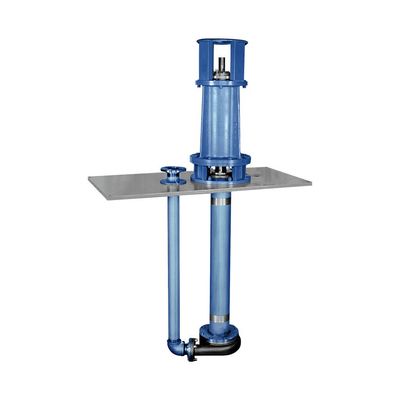

About the SERIES 1200 MODEL 1201, 1202 & 1203 Industrial Vertical Cantilever Centrifugal Pump. Capacities to 3000 GPM Heads to 230 Feet Temperature to 400° F Pump Length to 6 Feet Shaft Diameter to 5″.

About the SERIES 600 MODEL 629 & 636 Industrial Vertical Process Pump. Capacities to 3000 GPM Heads to 230 Feet Temperature to 180° F Column Extensions of 12″, 15″ & 21″.

About the SERIES 700 MODEL 720 & 724 Industrial Vertical Sewage Ejector Pump. Capacities to 1500 GPM Heads to 100 Feet Pit Depths to 26 Feet.

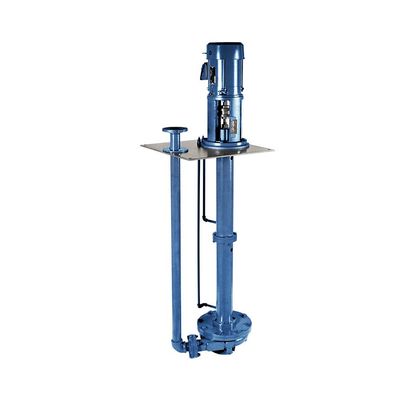

About the SERIES 800 Model 814, 820, 824 & 832 Industrial Vertical Immersion Sump Pump. Series 800 applications include sump drainage, flood control and process drainage to meet EPA and OSHA requirements. Heads to 230’, temperatures to 350° F, pit depths to 26’ and up to 3,000 gpm. This vertical immersion sump pump features a semi­open impeller, external adjustment, standard NEMA C face motor. Cast iron, 316 SS or Alloy 20 construction. Capacities to 3000 GPM Heads to 230 Feet TDH Temperature to 350° F Pit Depths to 26 Feet.

Vertiflo Pump Company offers a rugged, dependable Series 900?Industrial Vertical Immersion Vortex Sump Pump for service in industrial and?municipal applications.?Vortex design provides an unrestricted flow since the impeller is not normally in contact with the solids being pumped.?Applications?include chemical?slurries, fragile food processing solids, paper & pulpy?solids, petroleum and oils, sewage, wastewater treatment, and textiles.?Solids handling up to 4” diameter spheres. Designed for long life in severe services with?heads to 170 feet, temperatures to 350° F,?pit depths up to 26 feet deep with flows to 1600?GPM. Construction options include cast iron, 316 stainless steel fitted, all 316 stainless steel, Alloy 20 and CD4MC. All?Vertiflo pumps are delivered fast,?usually shipped in one-half the typical lead time.

The Series 2100 trash handling centrifugal pump has easy access to the impeller and case to remove debris. It has an oversized, tapered bore and a self-flushing seal chamber. It also has the industry’s first optional external flush, resulting in extended seal life. Back pullout design with external impeller adjustment, plus a replaceable case wearplate allows for continuous high efficiency performance. Capacities to 1300 GPM Heads to 112 Feet TDH Sizes: 3″, 4″ and 6″ Solids Handling: Up to 3″ Diameter Sphere Suction Lifts to 25 Feet.
