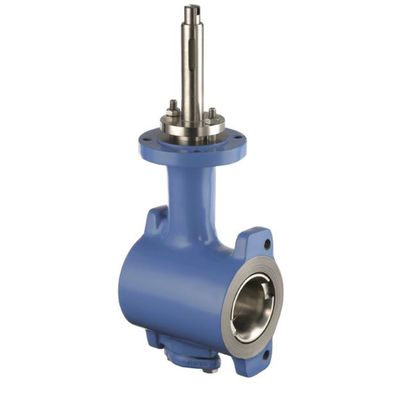

The Type 72.3 MAXIFLUSS Rotary Plug Valve by VETEC has a double-eccentric plug design, which ensures that the plug is lifted from the seat immediately and without any friction. The favorable design permits high flow rates. The high Kvs coefficient and control ratio of 200:1 make the valve suitable for a wide range of applications. Thanks to its innovative design, the valve requires hardly any maintenance. The valves can be delivered with pneumatic, electric, electrohydraulic or hand-operated actuators.

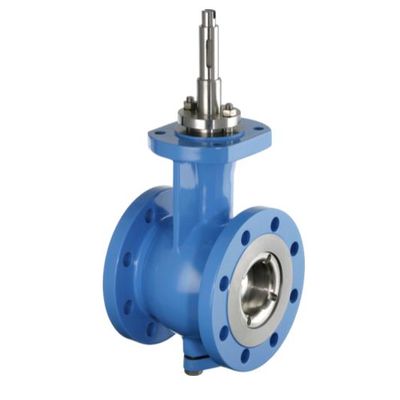

The Type 72.4 Rotary Plug Valve by VETEC has a double-eccentric plug design, which ensures that the plug is lifted from the seat immediately and without any friction. The favorable design permits high flow rates. The high Kvs coefficient and control ratio of 200:1 make the valve suitable for a wide range of applications. Thanks to its innovative design, the valve requires hardly any maintenance. The valves can be delivered with pneumatic, electric, electrohydraulic or hand-operated actuators.

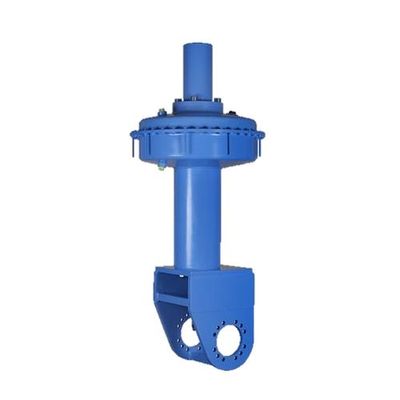

The Type R Actuator is equipped with a rolling diaphragm and a centrally arranged return spring on the inside. The freely supported piston rod is directly connected to the lever for the valve shaft. The very long travel ensures high torques and very fine control. Its special design allows the actuator to be used with different opening angles. The actuator can be equipped with additional manual overrides as well as end stops.

For automatic actuation of industrial valves. with rotating throttle element. Counterclockwise rotation for VETEC series 72, 73, 82 (counterclockwise closing) - Rotary angle 75°. Clockwise rotation for VETEC series 62 (clockwise closing) - Rotary angle 90°.

The Type MD Actuator is equipped with a diaphragm and several symmetrically arranged return springs. The combination of several spring assemblies and the design of the piston rod bearing allow very high torques to be transmitted. The short travel ensures very short actuating times. The actuator can be equipped with additional manual overrides as well as end stops.  For automatic actuation of industrial valves. e.g. rotary plug valves, ball valves, butterfly valves.

The Type MZ Actuator is equipped with a diaphragm and a centrally arranged return spring on the inside. The freely supported piston rod is directly connected to the lever for the valve shaft. The short travel ensures very short actuating times. In addition, the actuator is designed for very fine control. The actuator can be equipped with additional manual overrides as well as end stops. For automatic actuation of industrial valves. e.g. rotary plug valves, ball valves, butterfly valves.

The Type MN Actuator is equipped with a diaphragm and a centrally arranged return spring on the inside. The freely supported piston rod is directly connected to the lever for the valve shaft.  The short travel ensures very short actuating times. For automatic actuation of industrial valves. e.g. rotary plug valves, ball valves, butterfly valves.

Concave multi hole seat: 40, SM 1.5→FTC, Integrated in the seat, DN 25… 300, DN 25… 300, DN 25… 500, DN 25… 250, DN 25… 500, TY005.028.

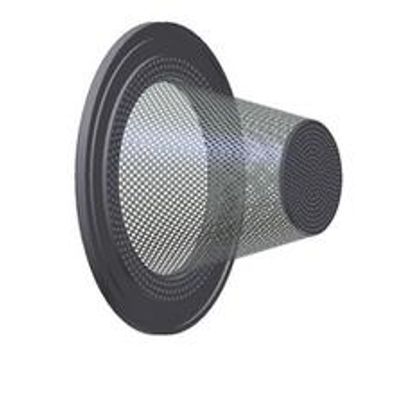

Multi hole cone: 10, SM 2.0→FTO / SM 2.5→FTC, Valve or pipe, DN 80… 300, DN 80… 300, DN 80… 500, TY005.023.
