Visvana products
Gate Valves
Visvana - Model F4 - PN6 - Gate Valve
Design : EN 1171. Face to Face EN 558. Seriel4(DN3202F4). Pressure Rate : PN4. Size Range : DN40-DN200. Temperature : -10....+ 120°C. Flange Ends : DIN EN 1092-2/B.Test: EN 12266.
Visvana - Model F4 - PN10/16 - Gate Valve
Design : EN 1171. Face to Face : EN 558. Serie 14(DN3202F4). Pressure Rate : PN10-PN16. Size Range : DN40-DN1000. Temperature: -10....+120°C. Flange Ends: DIN EN 1092-2/B. Test: EN 12266.
Globe Valves
Visvana - Model PN16/25/40 - Straight Globe Valve
Size : DN 15 - DN600. Pressure: PN 10 -16 - 25 - 40. Ends : DIN EN 1092 (Flange). Dimensions : DIN3356/2-Fl-(Straight/Duz). DIN EN 558-1-1. Options: Regulating Disc, ANSI Flange.Tests : DIN EN 12266.
Visvana - Model PN16/25/40 - Angle Type Globe Valve
Size : DN 15 - DN600. Pressure : PN 10-16-25-40. Ends : DIN 2533 (Flange). Dimensions : DIN3356/2-Fl-(Straight/Duz). DIN 3356/2-F32 (Angle / Acih) Options: Regulating Disc.
Check Valves
Visvana - Model PN16/25/40 - Lift Type Check Valve
Nominal Diameter : DN15-DN600. Nominal Pressure: PN16-40. Ends : DIN 2533(Flans). Dimensions : DIN 3202/2-F32 TS 10873
Visvana - Model PN16/25/40 - Swing Check Valve
Pressure Rate : PN10-16-25-40. Face to Face: DIN EN 558-1-48. Temperature : -10....+120 oC. Flange Ends : DIN EN 1092. DIN EN 12266 & API 598 Tests.
Butterfly Valves

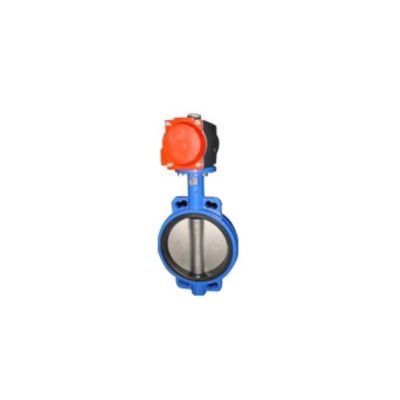

Visvana - Model PN10/16 - Wafer Type Butterfly Valve
Nominal Pressure : PN16-25.DN 50 / DN 600, DIN 3337/K1,TS 11341.
Visvana - Model PN10/16 - Lug Type Butterfly Valve
Nominal Pressure : PN16 DN 50 / DN 600, DIN 3337/K1, TS 11341.
Strainers, Foot Valves, Basket Filter
Visvana - Model PN10-16-25-40 - Y Type Strainer
Nominal Diameter: DN15-DN600. Nominal Pressure : PN10-16-25-40. Ends : DIN EN 558-1-1 / TS 11 494. Dimensions: DIN 3202/2-1-2.

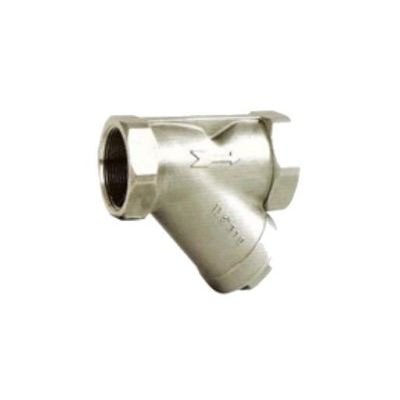

Visvana - Model PN10-16-25-40 - Stainless Steel Strainer
Pressure Rate: PN 40, AISI304/316 l/2`-2`.
