Vivex Separation AB products

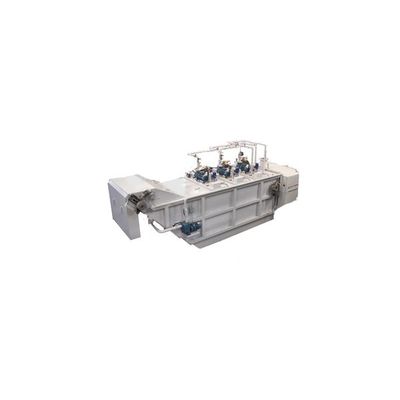

DinoFilter Central Coolant management system consists of one or several filtration units (cassettes) which are assembled in the central unit. The contaminated fluid from the machining process enters the central unit into the dirty tank (filter tank). The contaminated fluid is sucked trough each filter cassette. The purified fluid is pumped to the built-in clean tank. The filtrated sludge is collected in the out side of the filter mesh. The filter mesh is manufactured in acid prof stainless steel for extended life time. The number of filters is model dependent. Each filter is independently performing the filtration function. If needed for any reason a filter cassette can be physically removed from the tank any time during on going production.

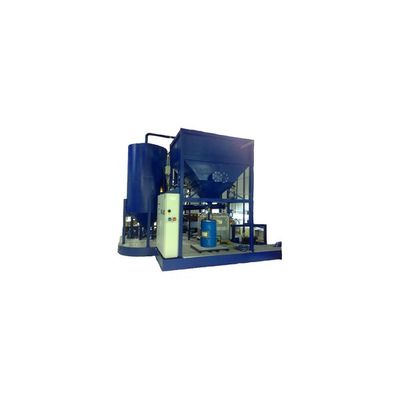

A separator enabling separation of particles of sizes down to 10µ (option 3µ) by settling them in motionless liquid volume. Periodical settling of fluid under motionsless liquid volume in a lamella package and automatically discharge of decanted fluid and separated wastes. Automatically operating cleaning system of the lamella package. The unit is complete including: Lamella separator, dirty tank, clean tank , supply pumps and automatic topping up system. The lamella separator has an automatic self-cleaning system. The sludge is collected directly into standard sludge barrels. The unit is automatic and of type:Lean maintenance and no consumables.

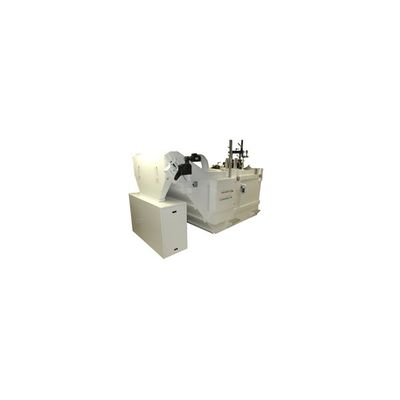

A central coolant management system for water based cutting coolants. The system includes a built-in 3-phase lamella separator for separation of tramp oil, graphite and other solid particles out of the coolant. The coolant management system includes: self cleaning 3-phase lamella separator, dirty tank , clean tank, supply pumps, sludge conveyor and automatic top up system. Automatically collecting, concentrating and removing the contamination from your coolant system. This machine is of type; Lean Maintenance and no Consumables.

An automatically operated central unit for management of water based cutting coolants. This unit includes a 3-phase lamella separator in which solid particles and tramp oil are separated and a clean tank for the purified fluid. The unit is equipped with a supply pump delivering the purified fluid to the machine tools. An automatic coolant topping up system keeps the fluid system with constant volume and dilution rate. The feature of this system is the lean maintenance, provided by automatically operating system and the separation that does not require consumable materials. Automatically discharge of separated wastes; tramp oil and solid particles. Excellent performance in tramp oil separation.

This central coolant management system is similar with the Bison unit, but it has a smaller capacity. Compact design requiring a minimum of floor space (LxWxH=2,5x1,3x1,7 m). Excellent performance in tramp oil separation.

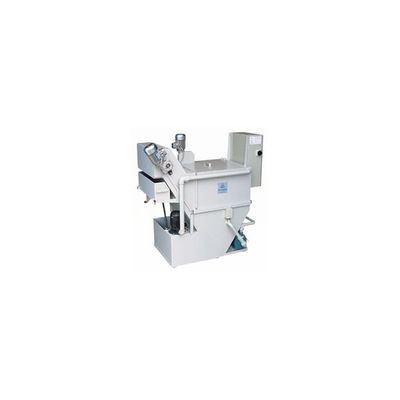

A paper-free filter system intended for purification of grinding fluid in single grinding machine. The system is complete with automatic topping-up and evaporation cooling. Includes filter mesh of stainless steel cloth. Automatic filter cleaning and sludge dewatering.

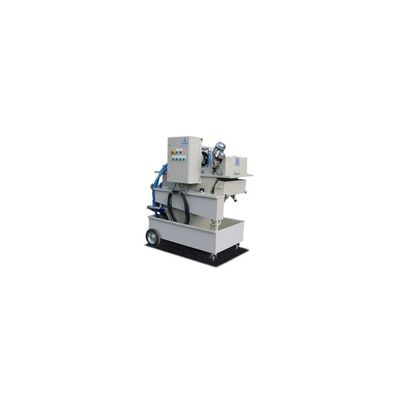

A mobile unit for purification and recycling of cutting fluids when cleaning machine sump and chips conveyor. Instead of producing waste coolant by sump sucking, the coolant in the sump is purified in Ponny unit and is used for the cleaning of the machine while the machine tools is in production. Ponny is a paper free depression drum filter on a trolley that is equipped with suction and return pumps with a complete set of hoses and suction tubes etc. The unit also includes an automatically operating tramp oil separator and sludge dewatering unit. The drum filter (DinoFilter) has an automatic system for cleaning of the filter cloth of stainless steel mesh.

A process fluid plant with built-in purifier using no filter media. The unit is built in stainless steel and is used for purification of industrial washing fluid and cutting coolants. The furification system separates contaminates as tramp oil and solid particles from the process fluid. The purification system consits of resuseable bag filter for particles and lamella separator for separation of tramp oil. The machine is complete and can be used by connecting to the process line after connecting electricity, water, and compressed air. Central coolant management system for maximum 5 machines.

A stationary plant made in stainless steel with 3-phase lamella separator for separation of solid particles and tramp oil from the process liquid. Lean maintenance system with automatic operation, cleaning, and waste handling. This unit is used for by-pass purification of industrial washing liquids and cutting coolants

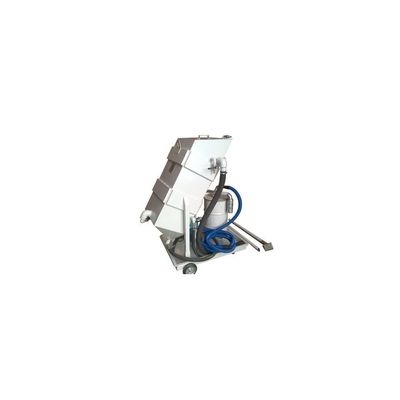

System: A mobile unit for cleaning of coolant tanks in machines. The bottom of the coolant tank is vacuum cleaned from chips and sludge and tramp oil is separated from the coolant during production. The separator contains a vacuum generator, particle filter and a lamella package. Capability: Particles and sludge are removed from the bottom of the coolant tank and tramp oil is separated from the coolant.
