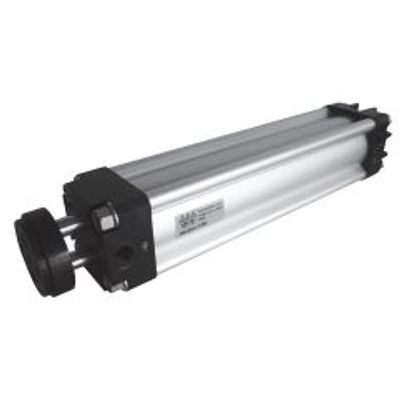

Cylinders series "P" are produced with a round pro?le design from Ø 32 to Ø 63. They are available in the basic version, with rear axial feed, with adjustable cushions and ?tted for the use with magnetic sensors.

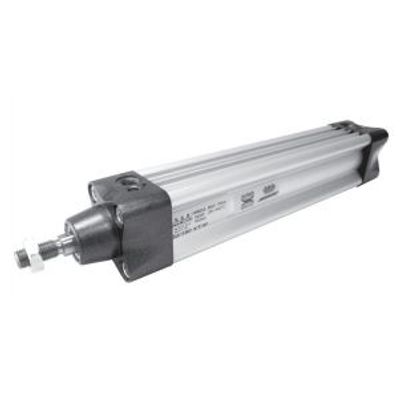

Compliance with ISO 15552 standard ensures complete interchangeability of these cylinders with the previous ones to ISO 6431 / VDMA 24562 standards, defining the dimensions of both the nude cylinder than assembled with fixings. They are available in the bores from Ø 32 to Ø 100 and the barrel, a profile in extruded aluminium alloy style "mickey mouse", has two "T"-slots on one side where it’s possible to mount directly the magnetic sensors series FM100. They are even available to ATEX directive, category 2GD.

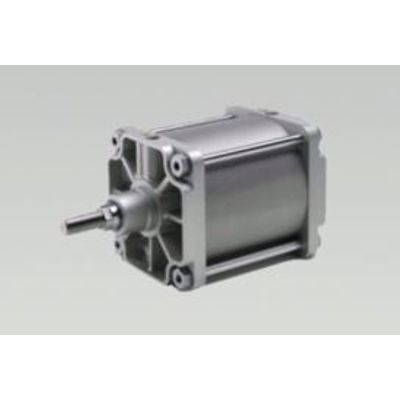

Cylinders series "XL" comply with ISO 15552 standard, being in this way completely interchangeable with the former cylinders to ISO 6431 /VDMA 24562 standards. These cylinders are supplied cushioned as standard and, in the version with magnetic piston type can be supplied with magnetic sensors. Available also to directive 94/9/EC ("ATEX" - 2GD category).

Twin rod cylinders series "CPA" act as devices against rotation in the presence of torques. They have been designed to be interchangeable with cylinders that comply with ISO 15552 standard (series "X" and "CPUI") and so they can be used with the standardized rear mountings of those cylinders. The cylinders series "CPA" are cushioned at both ends and with magnetic piston type as standard.

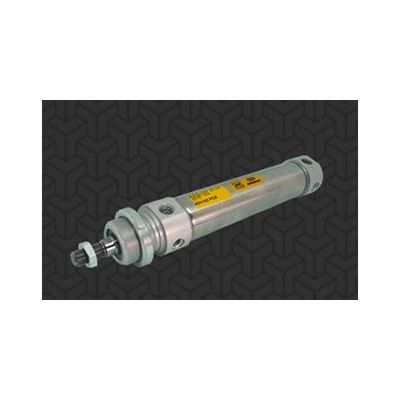

Cylinders series "BU" are available from Ø 20 to Ø 100 and, complying with AFNOR NF E49-004-1 and NF E49-004-2 standards, they’re interchangeable also without using anchorages. Besides from Ø 32 to Ø 100 they are available even with end caps distance between centers to ISO 15552 standard. Cylinder series "BU" with magnetic piston type can be supplied with magnetic sensors inserted in the slots arranged on the extruded pro?le.

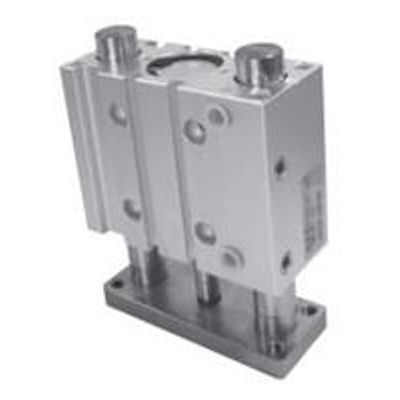

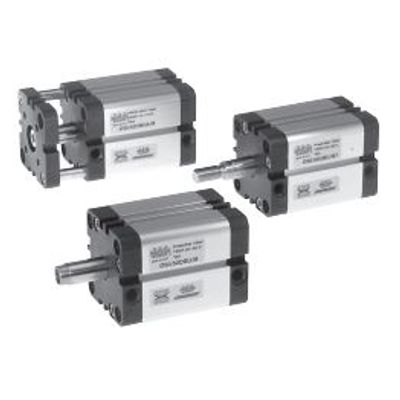

Compact guided cylinders series "BG" have reduced dimensions and high precision movement. These cylinders assure great strenght to transversal forces thanks to stout bars guided on bushings or sleeves. Cylinders series "BG" are double acting and they have the magnetic piston type and the steel plate as standard, so they can be supplied with magnetic sensors.

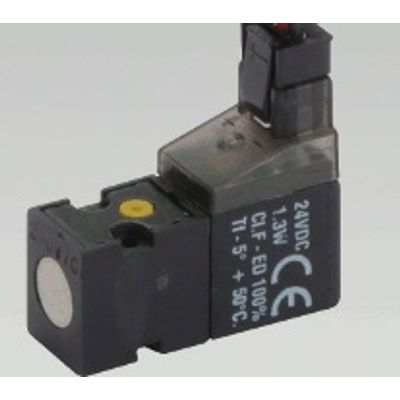

The direct acting solenoid valves series "DM" are produced in the 3/2 N.C. pneumatic function with the interface to ISO 1 521 8 and in the 3/2 N.O. - 3/2 N.C. pneumatic functions with not standardized interface. These valves can be used with all the fluids that can match the constructive materials. The versions with nominal diameter of 1 .1 mm are equipped with "CRP" (Power Reduction Circuit, see documentation below).

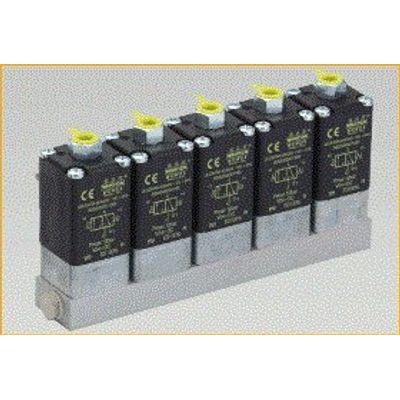

The direct acting solenoid valves series "UM" are produced in the 3/2 and 2/2 N.C./N.O. pneumatic functions. They are used as power valves if mounted on single and multi-station base, or as control valves if mounted, in the 3/2 pneumatic function, on body valves series "MEV", "MEK", or "UK". These valves can be used with all the fluids that can match the constructive materials. The multi-station bases support both the 3/2 N.O. than the 3/2 N.C. pneumatic functions.

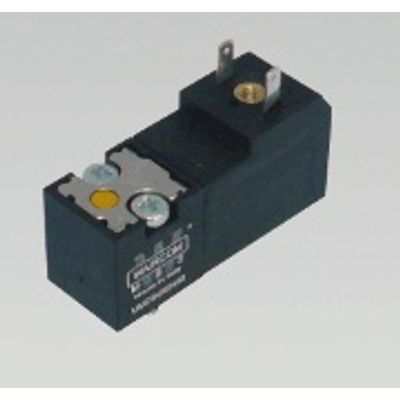

The direct acting solenoid valves series "UL" are produced in conformity with the Directives EC 89/336, EC 92/31, EC 93/68, EC 73/23 in the 3/2 N.O. (with feed from the exhaust "3") and 3/2 N.C. pneumatic functions. The function 2/2 is obtainable closing exhaust "3". Besides are available the versions with ports G 1/8, suitable for single use, and with interface for multi-station base mounting or for mounting on poppet and to ex CETOP RP 32 P (with ?xed position) valve bodies.

Minivalves series "M" are produced in the 2/2 and 3/2 pneumatic functions in both side and bottom ported versions, with push-in fittings on body valve for pipe Ø 4 mm or M5 threaded connections; the version G1/8" bottom ported is also available. Thanks to the suitable adapter types MCS-SA and MCS-SAD these minivalves support the "BRETER" Ø 22 mm actuators for panel mounting. The same actuators can control 1 or 2 minivalves, thus it`s possible to obtain the 3/2, 5/2, 5/3 open centre and the 5/3 pressure centre pneumatic functions.
