Warrior Mfg., LLC products

Capacities up to 60,000 BPH. Hot dipped galvanized construction of the boot, trunking and head. Generous clearances in all directions. Robust commercial design. Custom configurations. 1/4" hot dipped galvanized boot. Hot dipped galvanized trunk. NFPA compliant relief vents. Generous clearance in all directions: 2 1/2" from edge of belt to inside of trunk, 3" from lip of cup to inside of trunk, 1 1/2" from back of belt to inside of trunk, 15" boot take-up minimum (ACME take up rods). Self fixturing design. Pillow block bearings standard. Boot shaft design to maximum of 5 minutes of deflection. Individual up and down trunks with robust tie angles and optional X bracing. Dust tight shaft seal design. Standard 1/4` urethane liner in head, hood, and hoppers. 4-sided flanged inlet hopper. Boot designed to minimize pressure issues. Full range of available options. Custom configurations available.

We offer a complete turnkey product including scale system, support structure, loadout spout, control room, fall safe, and sampler. Weighers are NTEP certified up to 80,000 BPH capacity, and a standard AGRIS control unit package with other controllers is available upon request. Loadout spouts are all hydraulically controlled for over the track or next to the track applications, and scale certification and operator training are included. All cones are construction of 1/4" AR plate. Side walls are all 1/4" thick plate for the most robustly built scale available. Larger service access points provide easy maintenance.

Capacities up to 50,000 BPH. Hot dipped galvanized construction. Welded steel chain standard. Robust commercial design. Custom configurations. 7 gauge head housing, hot dipped galvanized. 10 gauge tail housing, hot dipped galvanized. 10 gauge side panel construction standard. Concentric locking pillow block bearings standard on head and tail. Push take up frames standard. Split sprockets standard. Standard shaft guards, minor guarding available.

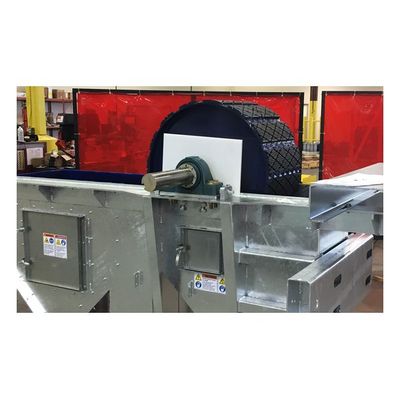

Heavy Duty 1/4" Idlers standard. 1/4" cone and 1/4" tube. UHMW anti-static return, available in 1/4" and 1/2". 7GA Hot dipped head and tail sections. Full width inspection door head and tail. Mine Duty Chevron wing tail pulley for more efficient reloading. Threaded concentric hub for true spinning idlers. Threaded stub shaft with easy access retainer. Larger Belt edge distance for more forgiving loading. Recessed bottom fasteners for full wear thickness of bottom liner. Side panels reinforced with bearing bracket. Bearings isolated from interior of housing. Slide lagged head pulley. Easy alignment Rear tail door. Easily adjusted take-up rods. Fully Sealed take-up housing. Tapered Loader for improved load centering. Adjustable Skirting. Square flange for easy gate/spouting sizing.

Capacities up to 3,500 BPH to 40,000 BPH. Proportional internal by-pass (manual or electric). High efficiency in fines (fm) removal. Replaceable liners. Easy access for maintenance and screen changes. Screens for a variety of grains. Steep valleys for better fines discharge. Polyethylene baffles for flow adjustment. Urethane flow belts for more even flow over the screens.

Pipe Rack systems reduce your engineering time, procurement costs, and labor expenses, and they are available in standard widths to 12`, and custom widths are available upon request. Pipe Rack systems are designed to support any load/span combination, and they are fabricated in 40` shop welded sections. We offer in-house engineering and detailing services to customize to your needs, and our quick assembly results in low installation costs. Bent support structures to build to specifications.

Our towers are custom-engineered to any size and height to support your specific equipment needs, and they are professionally engineered specifically to your project’s seismic zone, ice loading, wind speed, and occupancy category requirements. Heavy-built, stackable, HSS square tube columns and angle iron cross bracing design guarantee the sturdiest tower available. 3D Solid Works modeling allows complete customization to accommodate all equipment with no interference and seamless maintenance access. Fully shop welded, 40` sections are available upon request to reduce your field labor, and galvanized or custom paint specs are offered. Modularized interior/exterior service platforms allow for quick and easy installation. Towers are available with switch back stairs, wrap around stairs, and ladder and cage systems.

Free standing center aeration tower with tarp, skirt, lift ring, fans, and winches. Tower is fully shop welded to reduce field installation costs. 4`, 6`, and 9` perforated bunker wall heights. Pile sizes range from 1 to 2 million bushels capacities. Wireless control options available upon request. Walls can be configured to an oval bunker system for larger capacity requirements. All intermediate tower and bridge for a complete turnkey product line offering. Bunker walkways for OSHA compliance.
