Water Level Controllers products

Water Level Controls for Pump Station and Lift Station Applications. If you’re searching for “Pump Station Float Switches” or “Lift Station Float Switches” while looking for replacement float switches for industrial pumps, Water Level Controls can help! Waterlevel Controls PLC Systems for Pump Stations & Lift Stations are created for your unique project’s needs.

Water Level Controls for Sump Pump and Lift Station Applications. If you are searching for “Electronic Sump Pump Switch” or “most reliable sump pump switch” Water Level Controls can help! Furthermore, WaterLevelControls.Com offers the most affordable and reliable electronic sump pump switches money can buy.

The Nina liquid level controller can be connected to any sensing method including: Float Switches, Pressure Switches, and Physical probes of all different types of material. Nina an be set to control 1 to 6 switch points in a single head, making the old “Float Tree” obsolete.

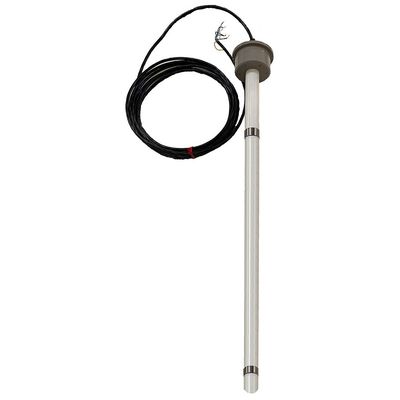

The 2SPD16-STK Checkpoint SmartProbe sensor stick is used in dirty water applications. The sensor stick provides a Simplex Pump Down with High Alarm using two switch outputs. The sensor uses a differential between the Pump On and the Pump Off probes to determine when the Pump function is needed. This hysteresis allows for the control over On and Off functions using a single switch output.

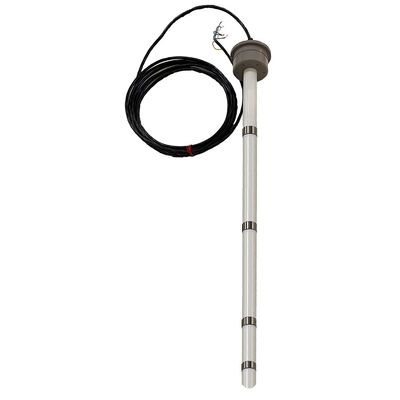

The 3SPD24-STK Checkpoint SmartProbe sensor stick is used in dirty water applications. The sensor stick provides a Duplex Pump Down function with High Alarm using three switch outputs. Programming logic provides a sequence on and all off function for Pumps 1 and 2. Each pump will turn on when water contacts its respective sensor ring and both pumps will turn off when water is below the All Pumps Off sensor ring. The sensor uses a differential between the Pump 1 On and All Pumps Off to determine when the Pump 1 is needed and a similar differential between Pump 2 On and All Pumps Off. This hysteresis allows for the control over On and Off functions using a single switch output for each pump.

The 2FK1-STK Checkpoint FloatKiller sensor stick is used in dirty water applications. The sensor stick provides one Active-On switch output. When water contacts the sensor ring, the switch output wire will be active.

Our system uses a state dependent frequency monitor. A microprocessor controlled frequency state change detection method uses a low amplitude signal generated on multiple sensor probes of differing lengths. Each probe has a frequency separate from all other probes in the array and independently changes state when touched by water. The state change of the frequency on each probe is monitored by a microprocessor which can perform multiple water level control functions.

The 2SPF01R-ROD Checkpoint SmartProbe sensor is used in clean water applications and has set points for Fill On and Fill Off. The sensor provides a Simplex Fill function using a common relay contact input and independent switch output. The VDC applied to the common relay contact will be applied to the switch output when that switch is active. The sensor uses a differential between the Fill On and the Fill Off probes to determine when the Fill function is needed. This hysteresis allows for the control over On and Off functions using a single switch output. The 2SPF01R-ROD sensor requires a 24VDC power source as supplied from a BMS/BAS or PLC.

Simplex Pump Down sensor with set points for Pump 1 On/Off, High Water Alarm, Oil Fault, and High Oil Alarm with Common Relay Wire Input. The 3SPD26R-ROD Checkpoint SmartProbe sensor is used in dirty water and elevator sump applications. The sensor provides a Simplex Pump Down, High Water Alarm, Oil Fault and High Oil Alarm with a common relay contact input and independent switch outputs. The VDC applied to the common relay contact will be applied to the switch output when that switch is active.

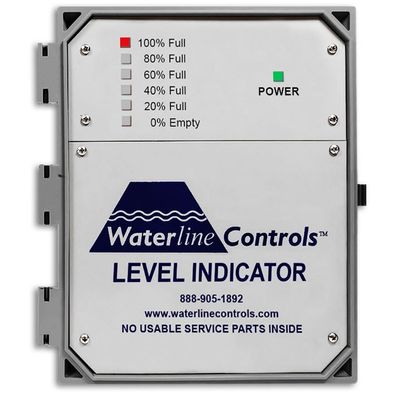

Model: WLC-WLI. Functions: Water Level Monitor and Indicator. Input Power: 110VAC Standard (24VDC, 24VAC, 240VAC available). Reliable solution with little to no maintenance required no matter the water quality! Never Plates, Fouls or deteriorates – We Guarantee it!
