Water Standard and Monarch Separators products

Our high performance chemistry H2O Floc™ safely & economically treats reuse & disposal water by removing impurities that cause lost production at SWD operations.

Our basic shale water treatment system is designed to safely & economically treat flowback or produced water.

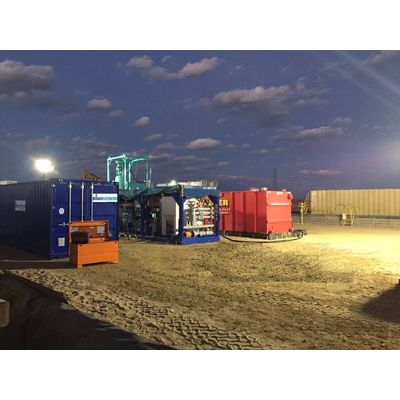

Our high performance system for safely and economically treating flowback or produced water for discharge back into the water cycle. The technology is now available to allow energy companies to safely & economically discharge their pre-treated produced and flowback water into rivers and streams through our H2O Spectrum® +Plus technology. This is a real opportunity for all stakeholders to benefit from the resulting economies of scale. To maximize this opportunity, Water Standard’s H2O Spectrum® platform is a field tested, turnkey water treatment system allowing operators to effectively treat their produced water and wastewater safely and economically to reuse or discharge standards.

Gravity separator designed to remove larger volumes of free oil from water.

Enhanced gravity separator designed to remove free and dispersed oil from water.

Bulk solids removal technology using gas or air flotation. A highly efficient solids and oil separation technology for large flow, pressurized onshore and offshore applications.

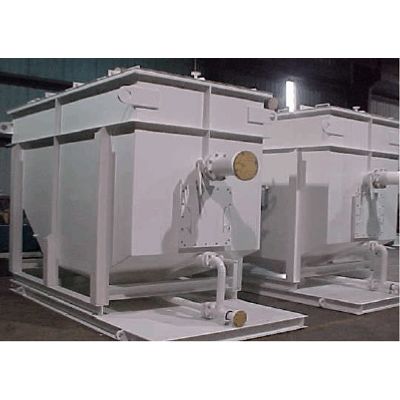

Free solids removal technology using dissolved gas (DGF) or air flotation. A popular, proven technology which effectively and economically separates free solids and fine solid particles from produced water and wastewater streams.

Removes sulphate to prevent scale deposits forming in the reservoir during waterflooding. Seawater contains up to about 3,600 ppm of sulphate ions. If present during water injection, the sulphate can form scale deposits with reservoir constituents such as barium and strontium. In addition, sulphate plays a major role in reservoir scouring, acting as a nutrient for sulphate-reducing bacteria. Water Standard’s Sulphate Removal Package (SRP) treats the seawater to remove the sulphate prior to injection to avoid these significant operational challenges.

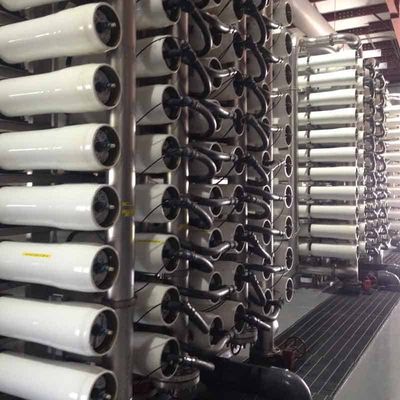

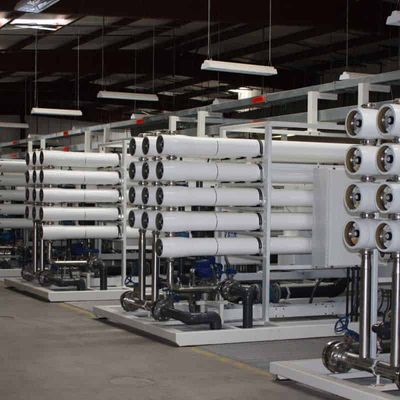

Changes the wettability characteristics of the reservoir rock, shifting the properties of a reservoir and increasing oil recovery. Low Salinity water injection shifts the properties of a reservoir to a state of water wetness, increasing microscopic sweep efficiency and consequently, increasing oil recovery. Low salinity water also provides sulphate-free water, thereby reducing souring potential and preventing scaling as it increases oil recovery. Water Standard’s low salinity packages use compact membrane technologies to optimize the design for offshore and onshore applications.
