Waterline Controls products

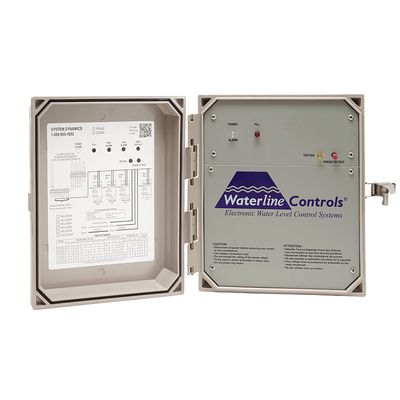

The WLC-3000 offers precision fill control in a complete ready to install system. Complete Kit Includes: NEMA 4X Enclosure with Lockable SS Latch and Power Relays, Sensor with 50 ft. Cable*, Side Wall Mounting Assembly.

The WLC-4000 combines precision fill control with a high level alarm. Complete Kit Includes: NEMA 4X Enclosure with Lockable SS Latch and Power Relays. Sensor with 50 ft. Cable*. Side Wall Mounting Assembly.

The WLC-4500 combines precision fill control with a low level alarm to ensure instant notification of a low water condition. Complete Kit Includes: NEMA 4X Enclosure with Lockable SS Latch and Power Relays. Sensor with 50 ft. Cable*. Side Wall Mounting Assembly.

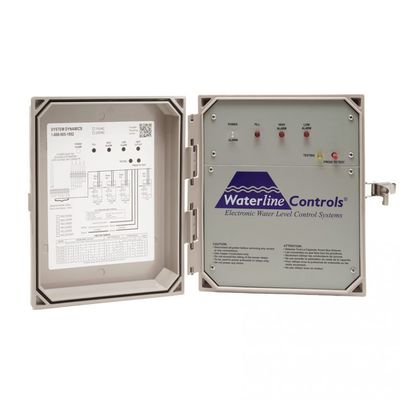

The WLC-5000 is the most widely used system in the line! Combining precision fill control with high and low level alarms provides ultimate peace of mind. Use the WLC-5000 in your HVAC application to ensure your water is always at the optimum level. Add this to a tank project for total autonomous control.

The WLC-6000 combines precision fill control with a high, low and low-low (critical) level alarm to provide ultimate protection and monitoring. Use the WLC-6000 in your HVAC application to ensure your equipment is always running optimally. Add this to a tank project for total autonomous control.

The WLC-6100T combines precision fill control with a high and low level alarm. The integrated temperature probe provides a low temperature switch for ultimate protection. Use the WLC-6100T in your HVAC application to ensure your equipment is always running optimally. Add this to a tank project for total autonomous control.

The WLC-6450 offers dual fill control with high and low alarms allowing for two separate valve activations at two levels. The WLC-6450 allows control over your water source usage for your HVAC, tank or potable water application. Ultimate control and level monitoring can be achieved with this complete, ready to install system.

Traditional float switches work by opening and closing dry contacts to send electrical signals that set off a low water level alarm. Magnetic reed switches complete the circuit when the float reaches its lowest point. The magnet then disconnects once the water has reached an adequate level again, opening the circuit up. This type of float level switch has a very limited lifespan, primarily because of the mechanical parts involved. If the float level switch fails, there will be malfunctions in the system it controls. Too little water could result in inadequate water pressure and dry running of equipment — which mean expensive repairs and problematic downtime.

We realize that not everyone is ready to make the switch from float level switches. We have also developed our own magnetic reed vertical float switches that connect directly with our WLC Series controller. These float switches have the color coded wire as the physical probe assemblies we produce, making the installation and operation fast, accurate, and easy. Our vertical float switches can contain multiple magnetic reed switches at various heights can be built to be any length requested. The assemblies are manufactured out of stainless steel to minimize any potential issues. In addition, our magnetic reed vertical float switches only take a few days to put together since we keep in stock all the raw materials required to assemble them.

The ultra sound sensors operate by transmitting a burst of high frequency sound waves and then measuring the amount of time it takes for the sound wave to reflect back to the receiver/transmitter. The frequency can be anywhere in the range of 20 KHz to above 100 MHz. The frequency is very application dependent. Ultra sound can be applied to operate in almost any medium; air, water (liquids) or various solid materials. It could be classified as a non-contact level system.
