Wavecontrol S.L. products

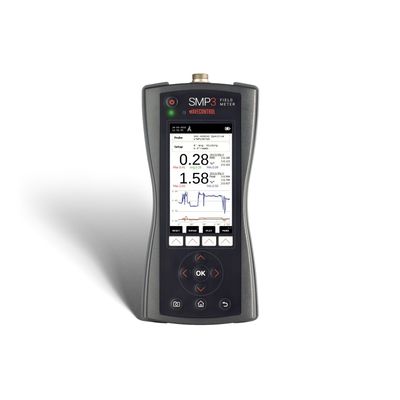

SMP3 meter is a fully compliant and flexible solution capable of measuring from DC up to 90 GHz for Electric and magnetic fields. It is a multi-standard device designed to offer maximum flexibility with a simplified use. Combined with the latest WP10M probe (1 Hz – 10 MHz) is a unique solution in the market for fully compliant low frequency measurements up to 10 MHz using the weighted peak method (WPM) required in the standards.

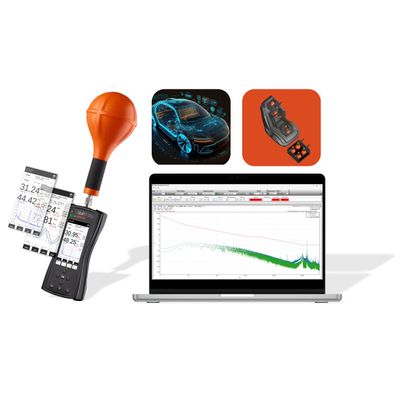

The measurement of ElectroMagnetic Fields for human exposure is becoming increasingly important, especially with the introduction of electric vehicles and increase of electronics devices inside. These measurements are essential to assure safety against human exposure to ElectroMagnetic Fields (EMF).

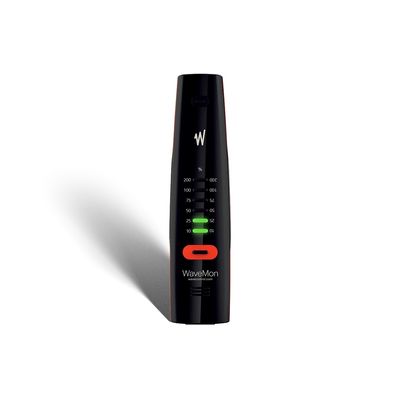

The WaveMon has a shaped (weighted) response to specific standards. It is not a single model trying to follow all standards at the same time. That approach will inevitably result in a lack of accuracy. It is available in different models with specific shaping to follow each standard, for increased accuracy.

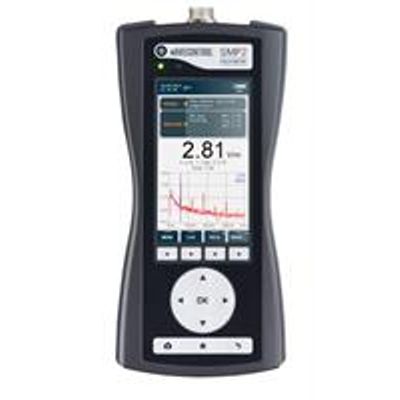

Broadband measurements DC - 40 GHz With RMS and isotropic field probes. Spectrum analysis DC - 400 kHz Real-time FFT. Weighted Peak Method (WPM) Real-time comparison in % with the selected limits. Assessments according to European Directive 2013/35/EU In accordance with international standards: ICNIRP, IEC, EN, IEEE, etc.. High performance GPS Integrated in the instrument. USB and Fiber Optic Communication PC software included.

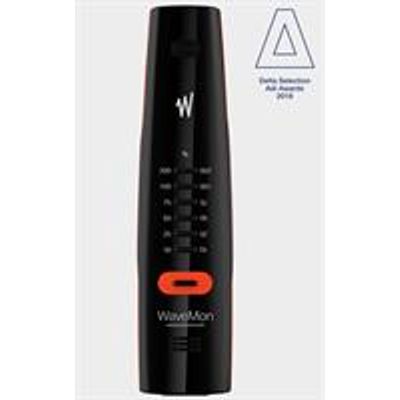

Electric and Magnetic Field Detection Isotropic sensors with RMS response. Weighted response to international standards ICNIRP, European Directive 2013/35/EU, FCC and Safety Code 6 (2015). HIGH INTENSITY AUDIBLE, VISIBLE AND VIBRATORY ALARM With user definable trigger threshold. EXPOSIMETER WITH DATALOGGER Data collecting and Reporting. GPS AND ALTIMETER Geolocation of measurements. HUGE AUTONOMY More than one month using two rechargeable AA batteries. USB COMMUNICATION PORT Data downloading, set-up and battery charging.

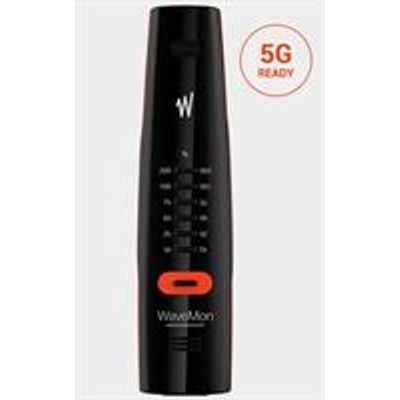

Electric Field Detection Isotropic sensors with RMS response. Weighted response to international standards ICNIRP, European Directive 2013/35/EU, FCC, Safety Code 6 (2015) and NATO. INSTANT AND AVERAGE VALUES Alarms on instant and average values. Configurable. EXPOSIMETER WITH DATALOGGER Data collecting and Reporting. GPS AND ALTIMETER Geolocation of measurements. HIGH INTENSITY AUDIBLE, VISIBLE AND VIBRATORY ALARM With user definable trigger threshold. USB COMMUNICATION PORT Data downloading, set-up and battery charging.

24/7 Monitoring Guaranteed autonomy with the “Smart Energy” function (AC + solar panel + battery). Broadband measurements Up to 3 kHz in LF and 40 GHz in HF. IP 66 environmental protection Resistant to extreme weather conditions. Compliance with ITU-T K.83 Direct, easy and comprehensible comparison with regulated limits. Easy installation Accessories for easy installation in different surroundings. Control Centre Optional software for system management.

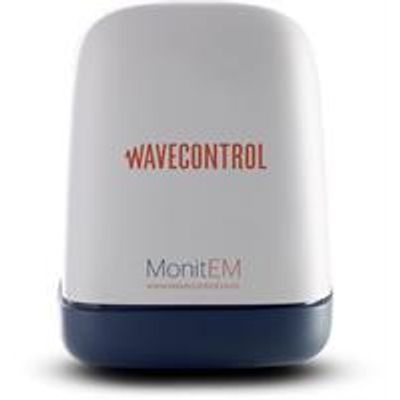

24/7 MONITORING -Permanent around the clock monitoring,ALARMS-Realtime, audible and visual alarms,BROADBAND MEASUREMENT -For an easy indoor RF monitoring of human exposure,COMPLIANCE WITH ITU-T K.83 -Direct, easy and comprehensible comparison with regulated limits,CONTROL CENTER -Optional software for system management.

NON-IONIZING RADIATION MAPS -Assessment exposure levels over large areas of cities or territories,COMPLIANCE WITH ITU-T K.113 -ITU recommendation on RF-EMF maps,DRIVE TEST -Data gathered by drive test,VISUAL COMMUNICATION -Colour and pattern codes.

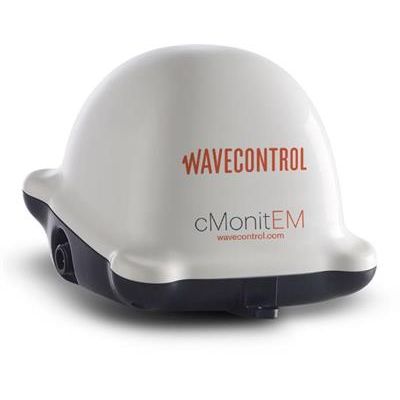

24/7 MONITORING -Continuous control of NIR exposure levels,INDOOR / OUTDOOR -Ideal for use indoors and outdoors at street level,SELECTIVE BROADBAND-Specific services: mobile phone signal, Wi-Fi, .CONTROL CENTRE -Optional software for system management.
