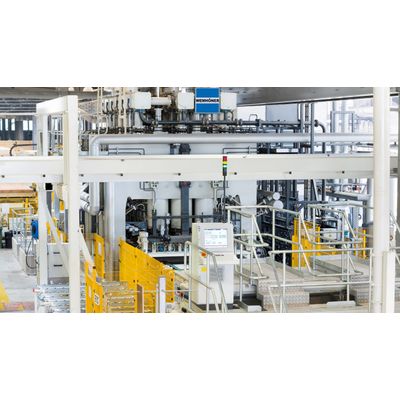

The heart of the system is the massive press block with 3-row cylinder arrangement. Highly dynamic drive technology and multi daylight lay-up stations guarantee maximum performance.

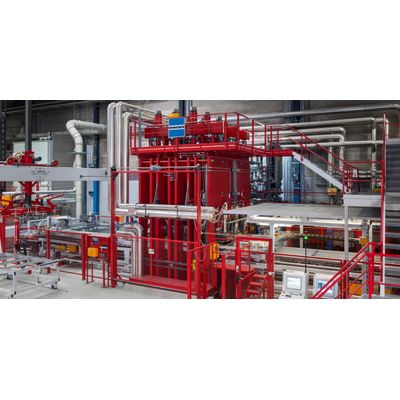

General view of a single daylight short-cycle press with 12 pressure cylinders and a specific pressure of 700N/cm² for deep structures. New dimension - this Wemhöner customer counts on A1 quality from Herford. With maximum flexibility.

Entry-level access to Wemhöner 3D pressing technology: The Variopress® Basic 1000 systems are the entry systems into Wemhöner 3D-press technology. The high flexibility of the individual units is ideal for small series, pilot series and individual pieces such as for shop fitting, boat or custom furniture. The Basic 1000 may be expanded at anytime. There is a choice between a one or two tray infeed system.

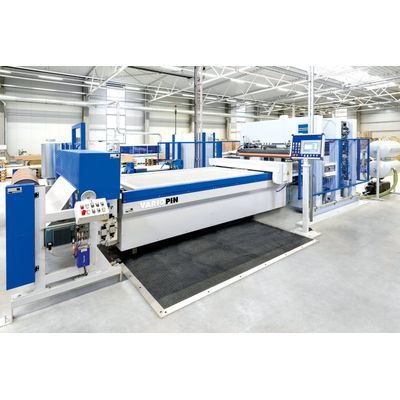

At Wemhöner the Variopress® Professional 3000 is considered a custom made, high-performance system. In the press lines all technical accessories are integrated: automatic MDF feeding onto the tray, the VarioPin® system and the feed tray with vertical tray circulation on two levels with up to eight loading trays. A film sheet feeding via a paternoster is already included to support high-performance systems with customer-specific warehouse management. A horizontal paternoster with up to 70 storage spaces and fully automatic foil change are in use. An automatic turning system that can be connected to the cutting and brushing machines is also included.

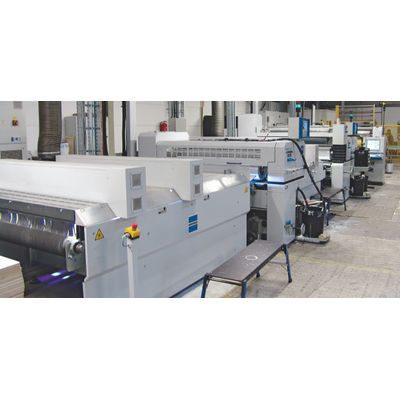

The technology of the future: Bi-directional digital printing enables flexible production processes from a lot size of a single piece, regardless of decor changes. In addition to the technology of digital printing onto sheet materials Wemhöner also offers digital printing on paper, (roll to roll), based on the multi-pass system. The industry-standard equipment design ensures high precision prints. Production capacity ranges from 100 to 1,000 m²/h at 600 x 600 dpi depending on the equipment in question. The modular designed Wemhöner controller is upgradeable to higher capacities. At Wemhöner bi-directional printing represents harmony and perfection in surface finishes. With 2,560 nozzles per print unit the print heads produce a print resolution of 600 x 600 dpi.

High-tech for single and multi-coloured patterns using the direct printing method: Wemhöner MasterPrinter® is a highly innovative and powerful printing machine for shaping wood and fantasy decors using the "indirect gravure process". The system is designed to achieve optimum print results for working widths up to 2,600mm. Variable repeat lengths. Single and multi-colour printing in perfection.

Lacquering, staining, filling: With the MasterCoater® liquid lacquer systems are applied perfectly to wood-based surfaces by rolling. A wide range of fluids can be applied by rolling: including primers, pigments, varnishes, oils, stains, waxes and fillers.

Ultra-flexible system concepts. Our customers’ needs are extremely diverse. Just like the system concepts of our door and lightweight panel lines. Nevertheless, all Wemhöner systems have three characteristics in common: Developed in dialogue with our customers. Manufactured in accordance with highest German quality standards. Extreme efficiency in day-to-day production processes. Lightweight panel systems are continuously fed and produce elements in a range of 16-120mm thickness. Wemhöner systems offer the most advanced technology for the production of lightweight components in a throughfeed process.
