Wenzhou Echo Machinery Co., LTD products

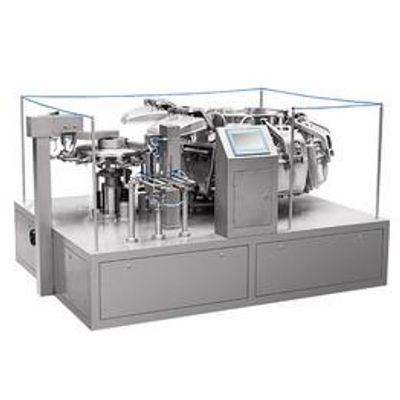

Specific characteristics and technical parameters of the models.  Pouch, bag fill and seal packing machine/MR8-200RWG Grain Packing Machin.

Automatic microcomputer control, automatically display length. Quantity, error, etc. Operation shortcut and convenient, distinct efficiency. High precision, strong sealing performance, high stability

All use the servo intelligentized control, run with low noise, make comfortable environment. Feeding, forming, filling and sealing the whole process is automatic, can carry through the pipelining directly, have high automatic operation. Design with the humanoid, uses the industry`s touch screen, intuitionistic shows parameter, man-machine overlapping exchange way operation, menu operation, easy to operate. The horizontal sealing and the film is synchronization, the sealing is more reliable and artistic. The length adjustment scope is extremely broad, suit for packing many kinds of products Operation short cut.

Low cost high gain, high speed and efficiency. Famous brand PLC control system, large touch screen, convenient to operate. Film drawing down system and horizontal sealing controlled by servo motor. Minimize the loss with complete automatic warn protection function. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting),counting, finished product delivery when it equips with feeding and measuring equipment. The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

Working Position Of machinery Eight—working station. Function Giving bag, coding, opening, fill consolidate1, fill consolidate2, vacuum and sealing, output products. Packing materials Portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bag. Bag size W:100-200mm   L:120~300mm. Weight 1200kg. Filling volume 10-1500g(depending on type of product and pouch size) Speed 20-50bags/min(the speed depends on the products status and filling weight). Total power 220V/380V,3phase,50/60Hz,16kw. Compress air requirement 350N liter/min,6Kg/cm2.

Vacuum packing machine remove the air from the package at the same time sealing it, delivering the ultimate in protection while extending the distribution life and maintaining product integrity. Vacuum packing machine commonly use the vacuum bags or barrier pouches. These barrier bags provide a barrier against the atmosphere and moisture. The bags are placed in the chamber; the desired amount of air is extracted from the vacuum bag and then sealed. All of Vacuum packing machine are made from stainless steel and are available in a variety of sizes and configurations such as the option of gas flushing kits. The measurement device can adopt multi-head weigher and other device. The main packing machine can adopt automatic rotary packing machine or others type model. We also provide customize made for large volume or bag packing.
